Comprehensive and Detailed in-depth Step-by-Step Explanation:

To establish an OSPF neighbor relationship, the following conditions must be met:

The routers must share a common network segment.

Their Hello and Dead intervals must match.

Their OSPF network types must be compatible.

The IP subnet masks must match.

If two OSPF routers are ondifferent network segmentsand havedifferent subnet masks, one solution is to change the OSPFnetwork typetoPoint-to-Point (P2P)on both interfaces.

Point-to-Point (P2P):

In a P2P network type, OSPF ignores the subnet mask mismatch and establishes the neighbor relationship regardless of the network mask.

This is ideal for directly connected links between two routers.

NBMA (Non-Broadcast Multi-Access):

This network type is used for networks like Frame Relay or ATM, where a single physical interface connects to multiple neighbors.

It is not applicable to solving subnet mask mismatches for a single link.

P2MP (Point-to-Multipoint):

This type treats the link as multiple P2P links. It is mainly used in hub-and-spoke topologies.

While it can be configured to solve subnet mask mismatches, it is more complex and less commonly used compared to the P2P type.

Broadcast:

This type requires all routers on the same segment to agree on subnet masks, so it cannot resolve the subnet mask mismatch issue.

Therefore, the correct answer isA. Point-to-point.

 R1 is a Level-1 router in Area 49.0001, while R4 is in Area 49.0004. Level-1 routers only maintain LSDBs for their own area and do not contain LSPs from other areas, such as R4’s LSP.

 R2 is a Level-1-2 router, so it maintains LSDBs for both Area 49.0001 (Level-1) and Level-2 domains, which include LSPs from R4.

 R3 and R4, as Level-2 routers, exchange LSPs with each other within the Level-2 domain.

 Thus, the LSDB of R1 does not include R4’s LSP ​.

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding IGMP (Internet Group Management Protocol):

IGMP is used in multicast networking to manage membership of devices in multicast groups.

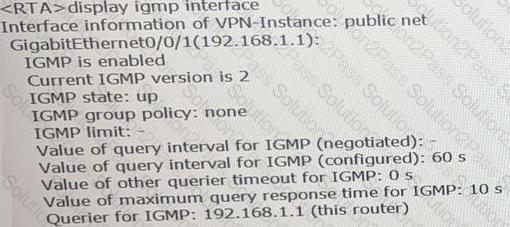

Key parameters in the configuration provided:

Interface IP Address:192.168.1.1

IGMP Version:2

Query Interval (Configured):60 seconds

Maximum Query Response Time:10 seconds

Querier Address:192.168.1.1

2. Analysis of Each Statement:

Option A: The IP address of the interface is 192.168.1.1.

Correct (True Statement).

The configuration clearly shows that the IP address of the interface is 192.168.1.1.

Option B: The maximum response time to Query messages is 10s.

Correct (True Statement).

The configuration explicitly mentions: Value of maximum query response time for IGMP: 10 s.

Option C: The interval for sending Group-Specific Query messages is 60s.

Incorrect (False Statement).

The 60-second value refers to thequery interval, which is the time interval betweengeneral queriessent by the querier.

The interval forgroup-specific queriesis not specified in this configuration. It is determined dynamically based on the multicast environment and is usually shorter than the general query interval.

Option D: The IGMP version is IGMPv2.

Correct (True Statement).

The configuration specifies: Current IGMP version is 2.

3. Why Option C is False:

The 60-second value is forgeneral query interval, not group-specific query interval.

The statement misinterprets the configuration, making itfalse.

4. Summary:

Correct Answer:C (The interval for sending Group-Specific Query messages is 60s).

Apseudonodein IS-IS is a logical representation of a broadcast network segment (e.g., Ethernet) where theDesignated Intermediate System (DIS)generates an LSP on behalf of the LAN.

Pseudonode LSPs contain:

Interface information(i.e., the interface that connects to the pseudonode)

Neighbor information(adjacencies with other routers on the LAN)

Protocol information(e.g., supported address families)

However,route information is not containedin LSPs generated by pseudonodes because routing information is advertised in theLSPs generated by the routers themselves, not the pseudonode.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“Pseudonode LSPs contain information about the broadcast link, including interface and neighbor data. They do not advertise routing entries.”

(Chapter: IS-IS Advanced Features – Section: DIS and Pseudonodes)

Intra-area route calculation in OSPF involves only Router LSAs (Type 1) and Network LSAs (Type 2). Summary LSAs (Type 3) are used for inter-area routes and do not participate in intra-area route calculation. Therefore, the statement is false ​.

Comprehensive and Detailed Step-by-Step Explanation:

Blackhole Route Issue in BGP:

In IBGP, the next hop of a route learned from an EBGP peer is not changed by default. If an IBGP peer cannot reach the next hop, blackhole routes may occur.

To prevent this, thepeer next-hop-localcommand is used to set the next hop to the local router's IP address.

Other Commands:

peer mpls-local-ifnet:Used in MPLS networks to set the next hop as the local interface address.

peer private-nexthop:Allows advertising private IP addresses as the next hop.

peer next-hop-invariable:Ensures the next hop is not modified during route advertisement, which is the opposite of what is required here.

1. Understanding Prefix List Configuration:

The command ip ip-prefix huawei index 10 permit 10.1.1.0 24 greater-equal 26 defines a prefix filter:

The base prefix is 10.1.1.0/24.

The greater-equal 26 condition specifies that the mask length of matching prefixes must beat least 26 bits.

If the less-equal parameter is not explicitly defined, the default value is32, meaning the longest possible mask length for IPv4.

2. Explanation of Values:

greater-equal-value: Specifies the minimum mask length. In this case, the value is26.

less-equal-value: Specifies the maximum mask length. Since it is not explicitly configured, the default value is32.

3. Summary:

greater-equal-value = 26

less-equal-value = 32

Huawei HCIA-Datacom Study Guide, Chapter "IP Prefix List Configuration."

Attributes such ascommunity,tag, andorigincan be directly referenced in theapplyclause of a route-policy. However,IP-prefixis not an attribute but a prefix list used for matching, and it cannot be directly applied ​.

 MQC and PBR

MQC (Modular QoS Command-Line Interface): Applied to interfaces for classifying and controlling traffic.

PBR (Policy-Based Routing): Used to influence packet forwarding based on policies rather than traditional routing tables.

Both MQC and PBR can be configured on device interfaces to filter incoming/outgoing packets or control their forwarding paths.

 HCIP-Datacom-Core Reference

The use of MQC and PBR on device interfaces is elaborated in the QoS and routing control chapters​​.

In Huawei firewalls, the security level of a zone can be reconfigured by an administrator, making the statement that it cannot be changed false. Other statements accurately describe security level restrictions or defaults ​.

In BGP and other TCP-based protocols like OSPF and IS-IS, when devices havedifferent Hold Times, thesmaller value is chosenafter negotiation. This ensuresfaster detectionof communication loss.

The Keepalive and Hold Timers are negotiated during the establishment of a BGP session.

The smaller Hold Timeis used to maintain symmetry and prevent timeouts.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“When negotiating Hold Time, both ends agree to use the smaller of the two values. This value is used to detect failures faster.”

(Chapter: BGP Fundamentals – Section: BGP Session Establishment)

By default, Huawei firewalls create security zones nameduntrust,dmz,trust, andlocal. These zones facilitate security policies for inbound, outbound, and inter-zone traffic control ​.

When routes are imported into BGP using theimport-routecommand, the origin attribute is set toincompleteby default. This indicates that the route's origin is not known or is from an external source, as opposed to being explicitly learned through an IGP (IGP) or EGP (EGP) protocol ​.

This statement isfalsebecauseIGMPv2 improves upon IGMPv1 by introducing the Leave Group message.

InIGMPv1, members leave silently, and the router waits for the timeout.

InIGMPv2, a host sends aLeave Groupmessage, prompting the router to send aGroup-Specific Queryto determine if other members are still present. If no responses are received, the group is pruned before timeout.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“IGMPv2 allows group members to actively send Leave messages, reducing unnecessary forwarding delays. This improves efficiency over IGMPv1.”

(Chapter: Multicast Protocols – Section: IGMP Versions)

Option A correctly configures the DHCP relay agent (AC) to forward requests to the DHCP server using VLAN 10.

Option B correctly configures the DHCP server (AR) with the correct IP pool (10.1.1.0/24), gateway, and excluded IP addresses. The static route to10.1.1.0through172.21.1.1ensures proper routing ​.

=========

Root protection ensures that a designated port does not become a root port by discarding superior BPDUs. However, if superior BPDUs are no longer received, the port can return to its original forwarding state, meaning its role can change. This makes option B incorrect, while the other options correctly describe RSTP behavior ​.

For single-hop BFD (Bidirectional Forwarding Detection), the configuration must include the local and remote discriminators to uniquely identify the session endpoints. Additionally, enabling BFD globally is a prerequisite for initiating BFD sessions. Configuring multicast IP addresses isunnecessary for single-hop BFD, as it operates over direct links. Huawei's configuration guidelines specify these requirements to ensure effective deployment and operation of BFD​​.

 Understanding BFD (Bidirectional Forwarding Detection):

BFD is a protocol used to detect link faults quickly between two routers.

Single-hop BFD operates on directly connected links and is commonly used for fast fault detection in routing protocols like OSPF and BGP.

HCIP-Datacom-Core Technology Training Material (BFD Basics and Configuration)​​.

 Mandatory Configurations for Single-Hop BFD:

A. Configure the remote discriminator of a BFD session:The remote discriminator is used to uniquely identify the BFD session at the remote end. This is essential for session establishment.

B. Configure the local discriminator of a BFD session:The local discriminator uniquely identifies the BFD session at the local end. This is required to establish a BFD session.

D. Enable BFD globally:BFD must be enabled globally on the router for the protocol to operate and for session configurations to take effect.

 Optional Configuration:

C. Configure a multicast IP address for BFD:This is not required for single-hop BFD, as it operates over direct links using unicast communication. Multicast is used in other scenarios, like multi-hop BFD.

 Conclusion:The correct configurations for single-hop BFD areA,B, andD.

Network Types and Corresponding Link Layer Protocols

Broadcast: Ethernet

Point-to-Point (P2P): PPP, HDLC

Point-to-Multipoint (P2MP): PPP

Non-Broadcast Multi-Access (NBMA): Frame Relay

 OSPF Network Types:

OSPF classifies networks based on link layer protocols into the following types:

Broadcast: This type assumes that all routers on the network can communicate directly with one another using multicast or broadcast frames. Ethernet networks are typical examples.

Point-to-Point (P2P): This type is used for links that connect two routers directly. Common protocols include PPP (Point-to-Point Protocol) and HDLC.

Point-to-Multipoint (P2MP): This type simulates multiple point-to-point connections over a single physical network, often used in WAN scenarios where PPP is employed.

Non-Broadcast Multi-Access (NBMA): These networks connect multiple devices but lack native broadcast capability, such as Frame Relay.

If VRRP is not configured to track uplink interfaces, a failure in the master device's uplink or link will not trigger a switchover, resulting in a traffic blackhole. The VRRP mechanism relies on interface tracking to monitor connectivity and ensure role transitions upon faults. Without this configuration, no failover occurs, and traffic directed toward the master device is lost ​.
