H12-821_V1.0 Huawei HCIP-Datacom-Core Technology V1.0 Free Practice Exam Questions (2026 Updated)

In BGP, the AS-Path attribute is mandatory and must be included in all UPDATE messages. It records the autonomous systems a route has traversed. Attributes like Local-Preference, MED, and Prefval are optional and may not always be included. The AS-Path is crucial for loop prevention and route selection ​.

In OSPF, Database Description (DD) packets are used during the database synchronization process. In the first DD packet a router sends during neighbor establishment, three control bits are set:

I bit (Initial) = 1 → This indicates that the DD packet is the first in the sequence.

M bit (More) = 1 → This means more DD packets will follow.

MS bit (Master/Slave) = 1 → Set by the router assuming the master role in the exchange process.

Setting all three bits to 1 is a standard part of the DD exchange initiation.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“In the initial DD packet, the I, M, and MS bits are set to 1 by the master router initiating database exchange.”

(Chapter: OSPF Operation Mechanism – Section: Neighbor State Machine)

The CAPWAP heartbeat detection interval is typically multiplied by a predefined factor to determine the switchover time. For instance, in Huawei devices, a common default is three missed heartbeats before a switchover is triggered. With a detection interval of 20 seconds, the switchover occurs after 60 seconds (20 x 3). This ensures that transient network issues do not cause unnecessary switchovers ​.

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding Hybrid Interfaces on a Layer 2 Switch:

Layer 2 switches support different interface types, such as access, trunk, and hybrid interfaces.

A trunk interface allows traffic from multiple VLANs to pass through, but frames belonging to the native VLAN are sent untagged, while all other VLAN frames are tagged.

A hybrid interface is more flexible:

It allows traffic from multiple VLANs to pass through, just like a trunk interface.

However, you can configure whether frames for specific VLANs are tagged or untagged as they leave the interface. This feature is useful in certain networking scenarios, such as connecting devices that do not support VLAN tagging.

2. Key Differences Between Trunk and Hybrid Interfaces:

3. Why the Statement is TRUE:

The statement accurately describes the functionality of a hybrid interface:

It supports traffic from multiple VLANs.

It allows administrators to configure whether outgoing frames are tagged or untagged for specific VLANs.

4. Summary:

The statement is TRUE because hybrid interfaces on a Layer 2 switch support traffic from multiple VLANs and allow flexible tagging configurations.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

In OSPF, Link State Advertisements (LSAs) are used to exchange routing and topology information. Each LSA in the OSPF network is uniquely identified using a 3-tuple identifier, which consists of:

Link State ID:

The Link State ID uniquely identifies the LSA within the OSPF area. Its value depends on the LSA type. For example, for a Router LSA, the Link State ID is the originating router’s Router ID.

Advertising Router:

This is the Router ID of the router that generated the LSA. It identifies which router is responsible for creating and advertising this LSA.

LSType:

This field identifies the type of LSA (e.g., Router LSA, Network LSA, Summary LSA, AS-External LSA, etc.). It is crucial for interpreting the purpose and content of the LSA.

The LS Sequence Number is not part of the 3-tuple that uniquely identifies the LSA. Instead, it is used to determine the most recent version of the LSA in case there are multiple instances of the same LSA.

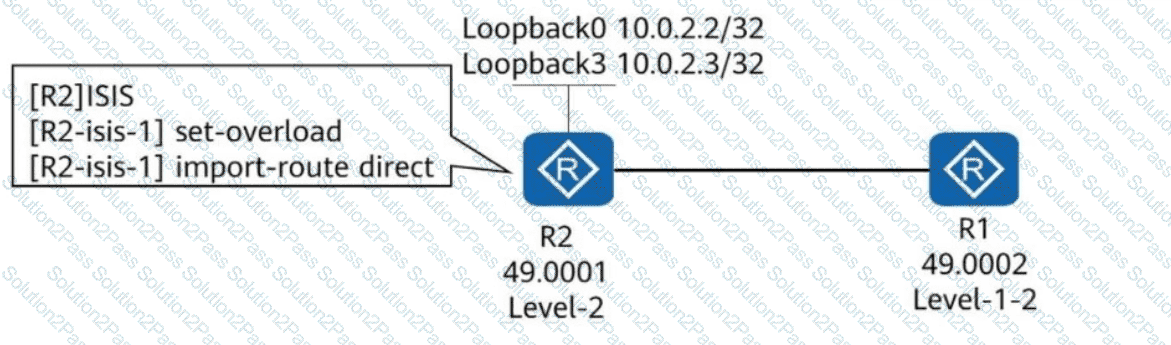

In the provided configuration, IS-IS is enabled on Loopback0 but not on Loopback3 of R2. As a result, R2 will advertise the route 10.0.2.2/32 (from Loopback0) to R1 through IS-IS. However, the route 10.0.2.3/32 will not be advertised because IS-IS is not enabled on that loopback interface. The import-route direct command does not override this behavior ​.

In BGP and other TCP-based protocols like OSPF and IS-IS, when devices have different Hold Times, the smaller value is chosen after negotiation. This ensures faster detection of communication loss.

The Keepalive and Hold Timers are negotiated during the establishment of a BGP session.

The smaller Hold Time is used to maintain symmetry and prevent timeouts.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“When negotiating Hold Time, both ends agree to use the smaller of the two values. This value is used to detect failures faster.”

(Chapter: BGP Fundamentals – Section: BGP Session Establishment)

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding LSA Filtering in OSPF and IS-IS:

The filter-policy command is used in OSPF and IS-IS to control which routing information is imported into the local routing table or advertised to other neighbors.

However, it cannot filter LSAs forwarded by neighbors. In OSPF and IS-IS, LSAs are always forwarded unchanged within the area to ensure all routers have a consistent link-state database.

Filtering only affects the routes that are installed into the local routing table or advertised to other areas or neighbors.

2. Why the Statement is False:

LSAs are forwarded without being filtered. This ensures link-state protocols maintain the same network topology view across the network.

The filter-policy import command only controls routes that are installed into the local routing table, not the forwarding of LSAs.

3. Summary:

The statement is FALSE because LSAs cannot be filtered by filter-policy import.

Huawei HCIA-Datacom Study Guide, Chapter "OSPF Route Filtering."

RFC 2328: OSPF Version 2, LSA Propagation Rules.

Based on the MSTP configuration shown, the role of the switch in MSTI 1 cannot be determined without additional details about the topology or priority values of other switches in the instance. The role could be a root switch, secondary root, or non-root, depending on these factors ​.

Inter-area route calculation in OSPF involves Summary LSAs (Type 3) for summarizing routes across areas and ASBR Summary LSAs (Type 4) for locating ASBRs. While Router LSAs and Network LSAs describe the internal structure of an area, they do not directly participate in inter-area route calculation. Thus, the statement that only Router, Network, and Summary LSAs are involved is false ​.

 R1 is a Level-1 router in Area 49.0001, while R4 is in Area 49.0004. Level-1 routers only maintain LSDBs for their own area and do not contain LSPs from other areas, such as R4’s LSP.

 R2 is a Level-1-2 router, so it maintains LSDBs for both Area 49.0001 (Level-1) and Level-2 domains, which include LSPs from R4.

 R3 and R4, as Level-2 routers, exchange LSPs with each other within the Level-2 domain.

 Thus, the LSDB of R1 does not include R4’s LSP ​.

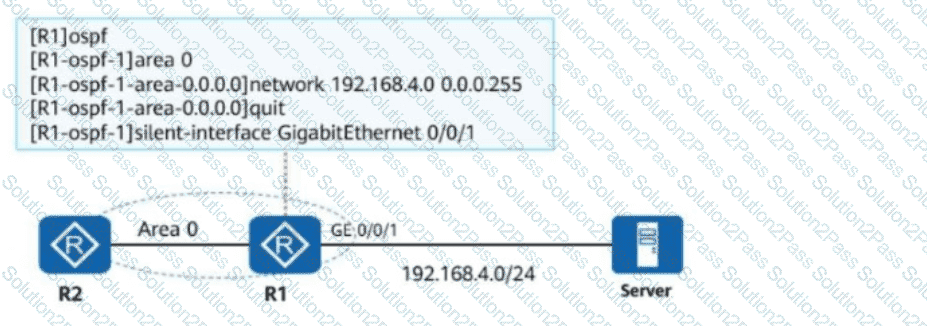

 Silent Interface Explanation

The silent-interface command is used to prevent OSPF from sending or receiving OSPF packets on the specified interface (GE 0/0/1). This disables OSPF adjacency establishment and stops route advertisement for that interface.

 Network Observations

Statement A: R2 can access the server.This is correct, as the silent interface does not impact data traffic, only OSPF-related communication.

Statement B: GE 0/0/1 of R1 cannot send OSPF packets.Correct due to the silent-interface configuration.

Statement C: The network segment to which GE 0/0/1 of R1 belongs cannot be advertised.This is correct, as the silent interface prevents route advertisement.

Statement D: GE 0/0/1 of R1 cannot accept OSPF packets.Correct, as the silent interface configuration blocks packet reception.

 HCIP-Datacom-Core Reference

OSPF interface command behavior is outlined in the configuration and lab examples sections​​.

A is true – MAC authentication often uses PAP or CHAP for basic password exchange.

B is false – By default, both the username and password are set to the full MAC address of the terminal, not just the last 6 digits.

C is true – MAC authentication is transparent to the user and requires no client software on the terminal.

D is true – The authentication system includes:

Terminal (user device),

Access device (AP or switch), and

Authentication server (e.g., RADIUS).

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“MAC authentication does not require client-side software. By default, both the user name and password are the complete MAC address in lowercase without delimiters.”

(Chapter: WLAN Security – Section: MAC Authentication Mechanism)

Comprehensive and Detailed in-depth Step-by-Step Explanation:

BGP (Border Gateway Protocol) uses specific message types to establish and maintain peer relationships between routers. The primary BGP messages involved during the establishment and maintenance of peer relationships are:

Open (D):

The Open message is the first message sent after a TCP connection is established between BGP peers.

It is used to exchange parameters such as the AS number, BGP version, hold time, and BGP identifier.

Keepalive (A):

After the Open message exchange, Keepalive messages are sent periodically to maintain the BGP session.

These messages confirm that the connection is still alive.

Update (C):

Update messages are used to exchange routing information after the peer relationship is established.

They contain information about network prefixes and their associated path attributes.

Hello (B):

Hello messages are not used in BGP. They are typically used in protocols like OSPF or IS-IS to establish and maintain neighbor relationships.

Thus, the correct answers are A (Keepalive), C (Update), and D (Open).

Comprehensive and Detailed Step-by-Step Explanation:

1. What is a Firewall Session?

A firewall session is an entry used to maintain the connection state of a protocol.

When a packet is forwarded, the firewall creates a session for it and tracks subsequent packets for the same connection to ensure efficient forwarding and security enforcement.

2. Analysis of Each Option:

Option A: Subsequent fragment

Incorrect.

A session is created for the initial fragment of a packet. Subsequent fragments are matched to the existing session and do not trigger the creation of a new session.

Option B: ICMP error packet

Incorrect.

ICMP error packets (e.g., Destination Unreachable) are considered exceptions and do not create new sessions.

Option C: GRE (Generic Routing Encapsulation)

Correct.

GRE is a tunneling protocol that encapsulates packets. A firewall creates a session for GRE traffic to track the state of the encapsulated connection.

Option D: TCP (Transmission Control Protocol)

Correct.

TCP is a connection-oriented protocol, and firewalls create sessions for TCP connections to track their state (e.g., SYN, SYN-ACK, FIN).

3. Summary:

The firewall creates sessions for GRE and TCP protocols.

 BGP Open Message Components

The Open message contains the following critical parameters:

Local AS Number: The autonomous system of the router.

Router ID: A unique identifier for the router.

Hold Time: The maximum time the router will wait for Keepalive or other messages from its peer.

 Incorrect Option

C. NLRI: Network Layer Reachability Information is not included in Open messages; it is carried in Update messages.

 HCIP-Datacom-Core Reference

The structure and contents of Open messages are explained in BGP protocol details​​.
