A generate route is a specialized type of Junos summary route that, unlike an aggregate route, is permitted to inherit and use an actual forwarding next hop rather than being restricted to reject or discard. When multiple contributing routes exist beneath the summarized prefix, Junos selects one of them as the primary contributor using a deterministic process: it first evaluates route preference (choosing the contributor with the lowest, most preferred value), then breaks any remaining tie by preferring the contributing route with the numerically lowest metric, and continues through further tie-breaking criteria if necessary until a single primary contributor is identified. The generate route then adopts the next hop of that specific primary contributor as its own forwarding next hop, meaning traffic matching the generate route but not matching any individual contributing route is forwarded toward whichever real next hop the primary (best) contributing route currently uses. This behavior is fundamentally different from an aggregate route, which never adopts a forwarding next hop at all and instead installs with a reject (or optionally discard) next hop by default, deliberately preventing traffic from being forwarded toward a next hop that might not actually lead to the intended more-specific destination. There is no mechanism by which the next hop is chosen arbitrarily from the 'first' or 'least-specific' contributor, and while a next hop can be manually overridden under the generate route's own configuration, that is not the default resolution behavior being described here. Reference topics: Junos Enterprise Routing – Protocol Independent Routing, Generate Routes and Primary Contributor Selection.

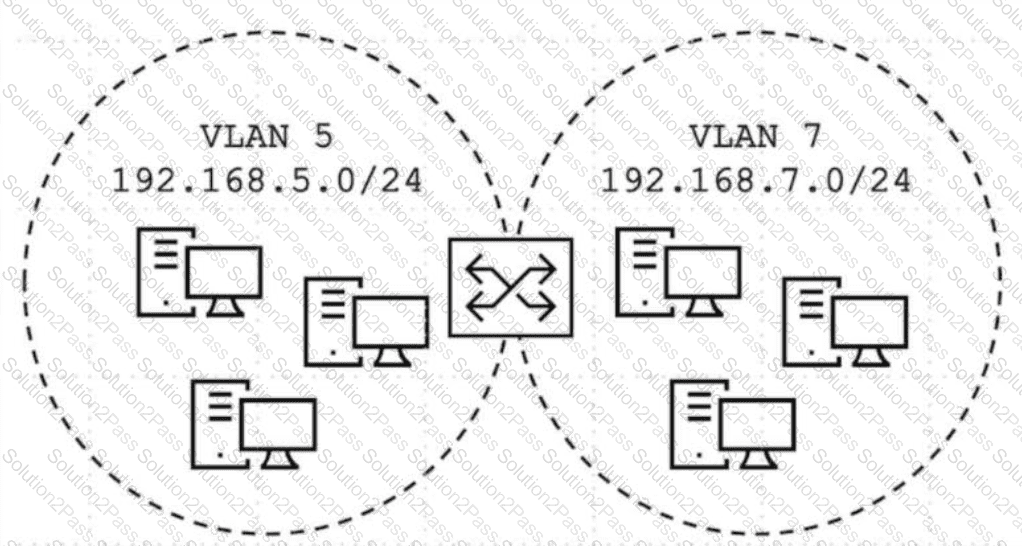

VLAN 5 and VLAN 7 are two entirely separate Layer 2 broadcast domains, each with its own distinct IP subnet, and devices in one VLAN can never reach devices in the other through switching alone — Layer 3 routing between the two subnets is mandatory for any inter-VLAN communication to occur, regardless of how the VLANs are configured at Layer 2. On a single EX Series switch, the correct and standard mechanism for enabling this routing without an external router is to create one integrated routing and bridging (IRB) logical interface for each VLAN, assign each IRB the appropriate gateway IP address for its respective subnet (192.168.5.1 for VLAN 5's irb.5 and 192.168.7.1 for VLAN 7's irb.7, for example), and ensure routing is active on the switch so that traffic arriving at one IRB's gateway address destined for the other VLAN's subnet is routed internally between the two IRB interfaces. Attempting to bind a single family inet interface with two distinct subnet addresses via secondary addressing conflates two separate broadcast domains onto one Layer 3 interface incorrectly and is not how VLAN routing is architected in Junos. Spanning tree exists purely to prevent Layer 2 loops and has no routing function whatsoever, so configuring it cannot enable inter-VLAN reachability. Placing both VLANs on a single trunk with Multiple VLAN Registration Protocol (MVRP) only automates VLAN membership propagation across trunk links; it does not provide any Layer 3 routing capability between the VLANs either. Reference topics: Junos Enterprise Switching – Routing VLANs, Configuring IRB Interfaces for Inter-VLAN Routing.

Voice VLAN is the Junos feature specifically designed to allow a single access port to simultaneously handle two distinct traffic streams: untagged data traffic from a PC or workstation using the port's normal access VLAN, and separately tagged voice traffic generated by an IP telephone that is typically daisy-chained between the switch port and the connected PC. When voice VLAN is configured on an access interface, the switch instructs the attached IP phone (commonly via LLDP-MED) which VLAN ID to tag its voice traffic with, and the switch is then able to correctly classify and prioritize that tagged voice traffic into its designated voice VLAN while simultaneously continuing to treat any untagged frames arriving on that same physical port as belonging to the port's regular, untagged access VLAN — precisely satisfying the requirement to accept both tagged and untagged traffic together on one access port. Native VLAN, by contrast, is a trunk-port-only concept that designates which VLAN untagged frames on a trunk should be associated with; it has no applicability to an access port and does not enable simultaneous tagged traffic acceptance there. Default VLAN simply refers to the VLAN an interface belongs to absent other configuration and carries no dual-traffic capability. IRB interfaces provide Layer 3 gateway functionality for a VLAN and are unrelated to how tagged versus untagged frames are accepted at Layer 2 on a given physical port. Reference topics: Junos Enterprise Switching – VLANs, Configuring Voice VLAN on Access Interfaces.

OSPF neighbor state progression, as defined in RFC 2328 and displayed by Junos through show ospf neighbor, moves through a well-defined set of named states: Down, Attempt, Init, 2-Way, ExStart, Exchange, Loading, and Full. Down is the initial state, indicating no Hello packets have been recently received from a potential neighbor on that interface; it is a genuine, valid OSPF state and is correctly included here. Init indicates that a Hello packet has been received from the neighbor, but that neighbor has not yet listed the local router's own router ID within its Hello packet, so bidirectional communication has not yet been confirmed; this too is a standard, valid state. Loading occurs after the Exchange state, during which Database Description packets have been fully exchanged and the router is now actively requesting the specific, more-detailed LSAs it identified as missing or outdated from its neighbor via Link State Request packets; it is likewise a standard, valid OSPF neighbor state. 'Established' is not an OSPF state at all — that terminology belongs to BGP's finite state machine, where Established represents the fully operational session state; the OSPF equivalent concept is instead called Full. 'Reject' is not a recognized OSPF neighbor state under any circumstance and does not appear anywhere in the RFC 2328 state machine, making it an invalid distractor as well. Reference topics: Junos Enterprise Routing – OSPF, The OSPF Neighbor State Machine.

A link aggregation group bundles multiple physical Ethernet links into a single logical interface (an ae interface) specifically to provide both increased aggregate bandwidth and link-level redundancy. By default, the aeX interface remains operationally up as long as at least one member link within the bundle remains active and passing traffic; the LAG does not require every member link to be functional to continue operating. When one of the four 1-GbE member links in this scenario fails, LACP (if in use) or the underlying link-status monitoring detects the failure, removes that specific link from the active forwarding set, and redistributes traffic hashing across the three remaining healthy member links automatically and without operator intervention. End devices and upper-layer protocols continue to see a single, continuously up ae interface throughout this process, experiencing only a proportional reduction in available aggregate bandwidth rather than any interruption in connectivity. This default behavior is precisely why LAG is a foundational building block for resilient EX Series switch interconnects in enterprise and data center designs, since it allows individual optic, cable, or transceiver failures to be absorbed transparently. None of the distractor behaviors — full administrative shutdown of the bundle, forwarding limited to broadcast traffic only, or a temporary disabling of all member links during renegotiation — reflect actual Junos LAG behavior, which is designed explicitly to avoid any such disruption. Reference topics: Junos Enterprise Switching – Layer 2 Switching, Link Aggregation Group Resiliency.
