JN0-106 Juniper Junos - Associate (JNCIA-Junos) Junos OS 21.2 Free Practice Exam Questions (2026 Updated)

The Routing Engine (RE) functions as the centralized processor and administrative core of any Junos OS-based platform. Its primary responsibility involves the execution and maintenance of the control plane, which includes running all active routing protocols such as OSPF, BGP, and IS-IS. Through these protocols, the RE exchanges topology information with neighboring routers, builds the Routing Information Base (RIB), and calculates the optimal paths for traffic. Once these paths are determined, the RE distributes the resulting Forwarding Information Base (FIB) to the Packet Forwarding Engine (PFE) for hardware-level execution.

In addition to its protocol duties, the Routing Engine manages the device configuration and the overall system environment. This includes providing the user interface (CLI or J-Web), managing the candidate and active configuration databases, and handling the commit process. While the PFE is specifically designed to forward transit traffic and evaluate that traffic against firewall filters at line rate, the RE focuses on the higher-level logic and management tasks. This architectural separation ensures that management functions—such as a complex configuration commit or a protocol re-convergence event—do not degrade the performance of the data plane, allowing the device to continue forwarding user traffic without interruption. Reference: Junos OS Fundamentals, Routing Engine Functions, Management and Control Planes.

==========

Secure remote administrative access to a Junos OS device is performed by using SSH (Secure Shell) . Therefore, ssh 172.16.10.1 is the correct command. Juniper defines the Junos CLI ssh operational command as a mechanism for opening a secure connection between a local router or switch and a remote system. The destination can be specified by hostname or IP address.

SSH provides authenticated and encrypted remote access, protecting login credentials and management traffic while the administrator performs configuration, monitoring, or maintenance operations. Junos devices can accept incoming SSH sessions when SSH is enabled under the [edit system services ssh] configuration hierarchy.

telnet 172.16.10.1 can establish a remote terminal session, but Telnet does not provide the encryption required for secure administrative access. ftp is principally a file-transfer protocol and is not the appropriate mechanism for interactive device maintenance. traceroute is an operational diagnostic utility used to identify the Layer 3 path toward a destination; it does not provide device login functionality.

Study Guide Reference Topics: User Interfaces — CLI remote access; Junos OS Fundamentals — system services; Operational Monitoring and Maintenance — secure device management.

In Junos OS, the Packet Forwarding Engine (PFE) determines the next hop for a packet by performing a lookup in the forwarding table and identifying all valid matches for the destination IP address. When multiple routes encompass the same destination, the router strictly follows the Longest Prefix Match (LPM) rule to select the most specific entry.

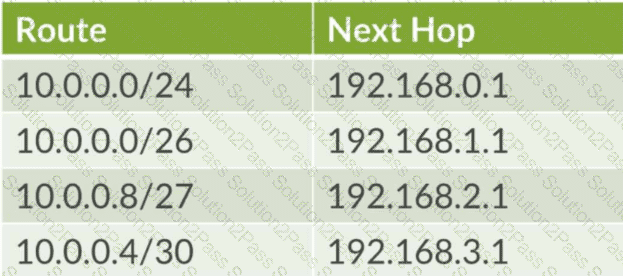

For the destination address 10.0.0.9 , the following evaluation occurs based on the exhibit:

10.0.0.0/24 : This route matches, as the address falls within the 10.0.0.0–10.0.0.255 range.

10.0.0.0/26 : This route matches, as the address falls within the 10.0.0.0–10.0.0.63 range.

10.0.0.8/27 : This route matches, as the address falls within the 10.0.0.8–10.0.0.39 range.

10.0.0.4/30 : This route does not match, as its range ends at 10.0.0.7.

Among the matching entries, the prefix lengths are /24, /26, and /27. The longest prefix match is /27 , as it specifies the most granular network segment. Because 10.0.0.8/27 is the most specific match for the destination 10.0.0.9 , the router selects its associated next hop, which is 192.168.2.1 . This deterministic behavior ensures that traffic follows the most precise path calculated by the routing protocols or defined by the administrator, overriding broader routes like the default or summary advertisements.

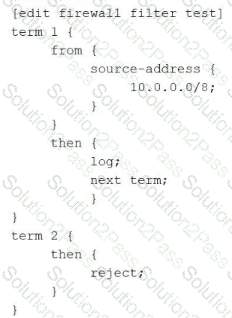

Junos OS firewall filters operate on a sequential, " first-match " logic, but their behavior is significantly influenced by the use of terminating versus non-terminating actions. In this exhibit, a packet with a source address of 10.0.0.0/8 is evaluated against the filter named test.

Evaluation begins with term 1 . The packet matches the source-address criteria, triggering the actions defined in the then statement. The first action is log, which sends the packet header information to the firewall task buffer for logging. The second action is next term . This is a critical non-terminating action ; it instructs the Packet Forwarding Engine (PFE) to continue the evaluation process using the subsequent term in the filter rather than stopping after the match.

Evaluation then moves to term 2 . Because term 2 contains no from match conditions, it acts as a " catch-all " for any traffic that reaches it. The action in this term is reject . This is a terminating action that discards the packet and sends an ICMP " destination unreachable " message back to the source. Therefore, the packet is first recorded by the logging process and is subsequently dropped by the rejection mechanism. If next term had not been present in term 1 , the packet would have been implicitly accepted (as any matched term without a terminating action like discard, reject, or accept defaults to an implicit accept in that specific term). However, the explicit instruction to move forward ensures the packet hits the reject statement.

Traceoptions represent an essential diagnostic facility within Junos OS, primarily used by network engineers for deep-level troubleshooting and protocol analysis. The fundamental purpose of configuring traceoption log files is to enable detailed debugging of specific protocols—such as BGP, OSPF, or IS-IS—or specific system processes like the Routing Protocol Process (rpd). When enabled, the system captures detailed information about the internal operations of the protocol, including the exchange of packets, state machine transitions, and error conditions, writing this data to a dedicated file in the /var/log directory.

Unlike standard system logging (syslog), which captures high-level events and warnings, traceoptions provide a granular, " behind-the-scenes " view of how a protocol is interacting with its neighbors. This is particularly useful for identifying the root cause of complex adjacency issues or route instability that standard show commands may not reveal. However, because tracing can be resource-intensive, it is typically configured with specific flags to limit the output to relevant events and is disabled once the troubleshooting task is complete. Traceoptions do not serve to optimize routing automatically , nor are they intended for permanent compliance storage or simple bandwidth monitoring. Instead, they remain the premier tool for clinical debugging and protocol verification within the Junos environment. Reference: Operational Monitoring and Maintenance, Troubleshooting Tools and Traceoptions.

==========

Route preference is the quantitative value Junos OS uses to rank the trustworthiness of different routing sources when multiple protocols provide a path to the same destination. A critical architectural distinction in Junos is that both direct and local routes share the same default preference value of 0. Direct routes represent subnets physically connected to an interface, while local routes represent the specific IP address assigned to the device interface itself. Because a value of 0 is the lowest possible numerical value, these routes are always preferred over any learned via dynamic protocols or static configuration.

Additionally, Junos OS treats External BGP (EBGP) and Internal BGP (IBGP) differently than other vendors by assigning both an identical default preference of 170. This means that if the same prefix is learned via both EBGP and IBGP, the preference value alone will not determine the active route; the system must instead proceed to the standard BGP path selection algorithm (evaluating attributes like Local Preference, AS Path, and Origin) to break the tie. In contrast, OSPF distinguishes between its route types, assigning a preference of 10 to internal routes and 150 to AS external routes. Understanding these default values—specifically the parity between direct/local and the unified preference for BGP variants—is foundational for predicting how the Routing Engine populates the forwarding table. Reference: Routing Fundamentals, Default Route Preference Values.

==========

Upgrading the Junos OS is a high-impact operation that requires thorough preparation to minimize risk and potential downtime. According to Juniper ' s best practices, one of the most critical preliminary steps is to verify that the device has sufficient available storage space. Using the show system storage command, an administrator can inspect the /var partition, which is the primary directory where software packages are temporarily stored and expanded during the installation process. If the storage is nearly full, the upgrade may fail midway, potentially leaving the device in an inconsistent state or requiring manual intervention via the boot loader.

The second mandatory task is to back up the active configuration . While Junos automatically maintains rollback files locally, these could be lost if the storage media fails or if a " clean install " (format install) becomes necessary. Having an external backup on a remote server or a local workstation ensures that the device ' s identity, policies, and interface settings can be restored quickly regardless of the upgrade outcome. Other tasks, such as creating a rescue configuration or performing a file system cleanup, are also highly recommended to ensure the " last known good " state is preserved. Disabling interfaces is generally unnecessary as Junos manages the transition gracefully, and deleting rollbacks would counterproductively remove historical recovery points. Ensuring these two pillars—storage availability and off-box backups—provides the safest foundation for a successful software lifecycle management event.

The Junos Command Line Interface (CLI) is designed with an intuitive, context-sensitive help system that assists users in navigating the command hierarchy. When an administrator enters a question mark (?) at the prompt, the CLI provides immediate feedback based on the current location within the hierarchy. First, it lists all available commands and options that are valid at that specific point. This allows the user to see the breadth of possible next steps without needing to refer to external documentation.

Second, the ? character triggers the display of summary information for each of those commands and options. This brief descriptive text provides a clinical overview of what each command achieves, helping the user select the appropriate tool for their task. This " help-on-demand " feature is functional in both operational and configuration modes. It is important to distinguish this from the help command; while help (such as help topic or help reference) provides more exhaustive documentation and usage examples, the ? prompt is primarily a quick-reference tool for command completion and syntax discovery. This mechanism ensures that even complex configurations can be built accurately by exploring the available options and their summarized purposes directly within the terminal environment. Reference: User Interfaces, CLI Help Facilities, Command Discovery.

==========
