The SBL (SurfControl Web Filtering) server integration is part of UTM web filtering on SRX. To confirm that the firewall is properly connected and communicating with the SBL server, the command used is:

show security web filtering status

This command displays connectivity information with the SBL server, license status, and filtering operations.

Other options:

Anti-virus (Option A) checks antivirus engine status.

Content-filtering statistics (Option C) shows local content filtering counters.

Anti-spam status (Option D) checks spam engine connectivity.

Correct Command: show security web filtering status

Junos OS is the core operating system used across Juniper routing, switching, and security platforms, including SRX Series Firewalls. It is not a separate network management system; management platforms such as Security Director are used for centralized security administration. Juniper describes Junos OS as the single operating system powering a broad portfolio of physical and virtual networking and security products. Therefore, option A is correct because Junos OS is a network operating system, and option B is correct because Juniper supports it across physical platforms and virtualized deployments. Options C and D are incorrect because they narrow Junos OS to management or IoT-only use cases, which does not match Juniper’s architecture.

An SRX Series Firewall can operate in flow mode or packet mode. Flow mode is the normal security firewall mode, where the SRX analyzes traffic statefully, creates sessions, and applies services such as security policies, NAT, screens, and application security. Packet mode processes traffic on a per-packet basis and is stateless, making the SRX behave more like a router for selected forwarding functions. Juniper documentation specifically identifies these two operating modes for SRX Series Firewalls. Route mode is not an SRX firewall operating mode; routing is a forwarding function within Junos OS. Wireless mode is also not a firewall processing mode. Therefore, the correct answers are flow mode and packet mode.

The simplest and most direct method of verifying Web filtering effectiveness is to attempt to access permitted and blocked URLs .

Option A: Installing a local NGWF server is not required; NGWF queries Juniper’s cloud.

Option B: File extension checking applies to content filtering, not web filtering.

Option C: Examining policies shows configuration but does not verify enforcement.

Option D: Correct. Attempting to browse URLs that should be blocked or allowed confirms the Web filtering policy is effective.

Correct Method: Attempt to access permitted or blocked URLs

On high-end SRX platforms, control-plane (Routing Engine–destined) traffic transits the loopback (lo0) and is best captured by applying a firewall filter on lo0 with the then sample action , together with traffic sampling under forwarding-options to write packets to a file.

sample sends matched control-plane packets to the sampling process, which can record them for analysis.

datapath-debug capture focuses on data-plane/SPC paths and is not the tool for generic control-plane packet capture.

tcpdump from shell is not the supported workflow on SRX; the operational command is monitor traffic, but for high-end control-plane capture, the recommended and scalable method is lo0 filter + sampling .

Port mirroring mirrors transit data-plane traffic, not RE-destined control-plane packets.

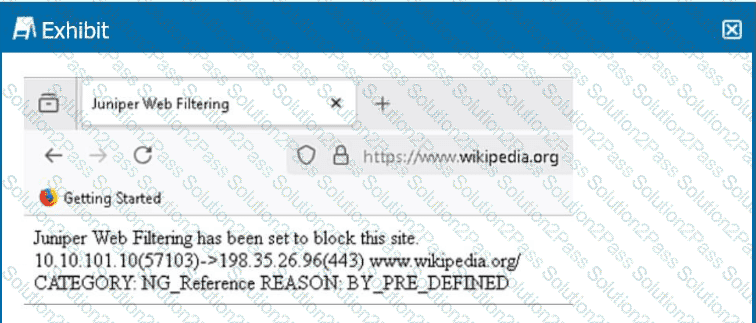

From the exhibit:

The user attempted to access https://www.wikipedia.org.

The block page indicates:

CATEGORY: NG_Reference

REASON: BY_PRE_DEFINED

The header states: “Juniper Web Filtering has been set to block this site.”

Analysis of options:

Option A: Correct. The log shows “REASON: BY_PRE_DEFINED,” which means the site was blocked because it matched a predefined category in the Web filtering database.

Option B: Correct. The category “NG_Reference” indicates that the NextGen (Enhanced/Cloud-based) Web Filtering type is being used.

Option C: Incorrect. The exhibit does not provide any information about SSL proxy configuration; it only shows that the HTTPS site was blocked.

Option D: Incorrect. The block page shown is the standard Juniper default block page, not a custom message.

Correct Statements: The URL matches a predefined Web filtering category, and the NextGen Web Filtering type is being used.

To enable Juniper NextGen Web Filtering, the SRX must have the required NGWF license and the web-filtering type must be configured for NGWF. Juniper documentation states that Enhanced Web Filtering and NGWF require separate licenses and that NGWF can use the wf_key_ng_juniper license key. Juniper also documents NGWF as a configurable web- filtering type, including ng-juniper, and notes that administrators can confirm missing license conditions using the web-filtering status command. A public IP address on the loopback interface is not a general NGWF requirement. SSL host inbound traffic on the untrust zone is also not required for enabling NGWF; SSL proxy or SNI behavior may affect HTTPS inspection, but it is not the base enablement step.

Content filtering on SRX Series Firewalls is part of Juniper Content Security, but Juniper documentation states that content filtering does not require a separate license. Content filtering provides basic data loss prevention by filtering traffic based on MIME type, file extension, and protocol commands. Therefore, option C is correct because no separate content filtering license is required, and option B is correct because file extension is one of the supported filtering attributes. Option A is incorrect because it directly contradicts Juniper’s content filtering documentation. Option D is not the best answer because content filtering is not described as full file-content inspection for determining file type; deeper inspection functions are associated with other Content Security services such as antivirus and AppID-based inspection.

Intra-zone traffic: On SRX devices, traffic between interfaces in the same security zone is allowed without requiring a security policy (Option C is correct). Policies are only evaluated for inter-zone traffic.

Junos-host functional zone: This zone is a predefined functional zone that allows administrators to apply policies controlling access to the SRX firewall itself, such as SSH, HTTP, or SNMP traffic (Option D is correct).

Null zone: This zone is a predefined discard zone. Interfaces placed in the null zone drop all traffic. It does not allow policy logging of dropped control plane traffic (Option A is incorrect).

Management functional zone: This is used to define management interfaces, not the “functional zone” as stated in Option B (incorrect wording).

Correct Statements: C and D

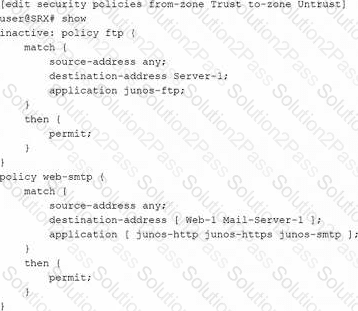

The exhibit shows that the FTP policy is marked inactive, so it remains in the configuration but does not take effect when the configuration is committed. Juniper documentation explains that inactive configuration elements are ignored and are not applied during commit. One valid fix is to activate the FTP policy and commit the configuration so that the policy becomes active again. Another valid fix is to use rollback 1 to return to the previously committed configuration, then commit that restored configuration. Simply moving the inactive FTP policy before another policy would not help because an inactive policy is still ignored. Changing the destination address to any is unnecessary because the primary problem shown is the inactive FTP policy.

Multiple routing instances (such as virtual routers or VRFs) can be configured on an SRX to provide separation of routing tables. This enables:

Maintaining separation of routing information (Option B): Different departments, tenants, or customers can have their own independent routing domains for security and isolation.

SNMP monitoring (Option A) is unrelated to routing instances.

Routing protocols (Option C) can be run inside each instance, but the purpose of multiple instances is separation, not general routing protocol management.

Simplifying interface configuration (Option D) is not a function of routing instances.

Correct Purpose: To maintain separation of routing information for security purposes.

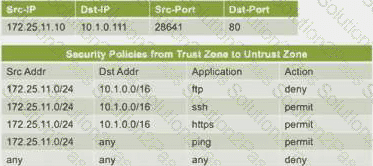

The incoming packet shown in the exhibit uses destination port 80, which represents HTTP traffic. The policy table contains entries for FTP, SSH, HTTPS, and ping before the final policy. Because the packet does not match FTP, SSH, HTTPS, or ping, it continues down the ordered policy list until it reaches the final any-any-any deny rule. Junos security policies are evaluated in order, and the first matching policy determines the action for the traffic. This makes option D correct. Since the final matching rule denies the packet, option C is also correct. The packet is not permitted by HTTPS because HTTPS uses TCP destination port 443, not port 80.
