AZ-800 Microsoft Administering Windows Server Hybrid Core Infrastructure Free Practice Exam Questions (2026 Updated)

In the Administering Windows Server Hybrid Core Infrastructure materials, Microsoft emphasizes using Microsoft Defender for Cloud – Just-in-time (JIT) VM access to control administrative access to Azure VMs. The guide e xplains that JIT “ locks down inbound traffic to management ports (for example, RDP 3389) by updating the VM’s NSG/Azure Firewall so they’re blocked by default . When access is needed, an authorized user submits a JIT request in Defender for Cloud specifying the port(s), source IP, and time window . If approved, Defender for Cloud temporarily opens the rule and automatically reverts it when the window expires.” This delivers a request/approval workflow before a Remote Desktop session can be established and min imizes exposure of management ports.

The same objectives note that while Azure AD Privileged Identity Management (PIM) controls role activation/elevation , it does not provide the network gate required to force a request prior to RDP connectivity. Similarly , an NSG by itself can allow/deny traffic but offers no on-demand request workflow . Azure Front Door is for HTTP(S) applications and is not used for RDP. Therefore, to ensure administrators must request access prior to connecting via RDP to VM1, you config ure Defender for Cloud JIT VM access , which enforces time-bound, IP-scoped openings of port 3389 and automatically closes them, aligning with the exam guidance for securing Windows Server IaaS VMs.

When building Windows container images, the base image determines both compatibility and image size. The hybrid core curriculum emphasizes that Nano Server is the smallest Windows base image, intended for headless, app-only workloads such as .NET (/.NET Core) applications. .NET Core’s modular, self-contained approach enables it to run on Nano Server images designed for Windows containers, yielding significantly smaller images and faster pull/start times than Server Core or Windows Server (Full) bases. Server Core includes additional components (GUI-less but still broad OS surface) and is used when you need APIs or frameworks not present in Nano. “Windows” or “Windows Server (Full)” are not container base images for modern Windows containers and would produce unnecessarily large layers. To meet the requirement “the image must be as small as possible” for a .NET Core app, the guidance is to select Nano Server as the base (for matching architecture and Windows version), then layer the .NET runtime or self-contained app on top. This choice aligns with best practices for minimizing footprint, improving density, and reducing network transfer during CI/CD.

The hybrid networking module in AZ-800 details Azure Network Adapter (ANA) as a Windows Admin Center (WAC) workflow that creates a point-to-site (P2S) VPN from an on-premises Windows Server to an Azure virtual network. The documentation states that ANA is initiated directly from Windows Admin Center , which automates provisioning of the necessary Azure resources (e.g., VPN gateway configuration and certificates) and installs/configures the VPN client on the server, establishing secure connectivity to the target VNet . The Azure portal does not install or configure the on-premises VPN client for a standalone server; Azure AD Connect is used for identity synchronization and is unrelated to network tunneling; and Device Manager is not used for configuring VPN or Azure connectivity. In practice, you add the server to WAC, o pen the Network tool, and select Add Azure Network Adapter , sign in to Azure, choose VNet1 , and complete the wizard. This is the prescribed, streamlined method for connecting Server1 to VNet1 using Azure Network Adapter, validating Windows Admin Center as the correct choice.

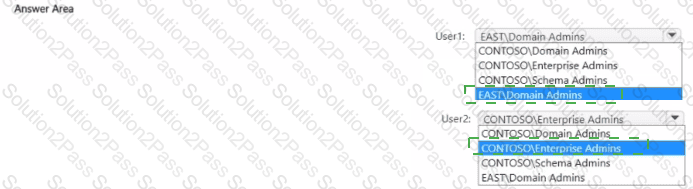

The Administering Windows Server Hybrid Core Infrastructure guidance for AD DS promotion and forest operations states that adding a new domain controller to an existing domain requires credentials that “ are a member of Domain Admins in the target domain (o r equivalent delegated rights) .” This is the minimum built-in role permitted to run AD DS installation and write to the domain’s configuration containers for DC promotion. Therefore, to add an additional DC in east.contoso.com , the least-privilege group fo r User1 is EAST\Domain Admins .

For creating a new domain (child domain or new tree) in an existing forest, the exam materials specify that this is a forest-wide operation handled by the Domain Naming Master and requires enterprise-level permissions: “ to cr eate or remove domains in a forest, you must use an account that is a member of the Enterprise Admins group .” Domain Admins in a single domain are insufficient because the task modifies forest-level naming contexts. Thus, to deploy the first DC for west.co ntoso.com , the least-privilege role that satisfies the requirement for User2 is CONTOSO\Enterprise Admins .

These selections follow the principle of least privilege: User1 is scoped to the child domain’s administration only, while User2 receives the forest- level rights necessary to add a new domain.

In the Administering Windows Server Hybrid Core Infrastructure materials (hybrid security and IaaS management), Just-In-Time (JIT) VM access from Microsoft Defender for Cloud is the prescribed way to require approval-based, time-bound Remote Desktop access to Azure VMs. The guide explains that JIT “locks down inbound traffic to management ports (for example, TCP/3389) and opens them only on request, for a limited time and only from approved source IPs.” Administrators request access; upon approval, Defender for Cloud creates a temporary NSG rule that expires automatically—you specify the maximum allowed window (e.g., 2 hours) and the ports. This matches the requirement: “Ensure that server administ rators request approval before they can establish a Remote Desktop connection to an Azure virtual machine. If the request is approved, the connection must be established within two hours.” Alternatives don’t meet this: PIM governs Azure roles, not VM RDP port exposure; Azure Bastion provides secure RDP/SSH over TLS without public IPs but doesn’t provide approval/time-boxed gating; the Remote Desktop extension is for classic Cloud Services and not for policy-driven approval windows. JIT is the least-privilege, policy-enforced solution aligned with the exam’s hybrid security objectives.

The exam content for Group Policy processing stresses User Group Policy loopback processing for session hosts (RDS/AVD): “In environments like Remote Desktop Session Host (or Azure Virtual Desktop), enable loopback processing on the OU that contains the session host computers so that user settings from that GPO apply when users log on to those computers, regardless of the user’s own OU.” The requirement states: “Apply GPO4 to the Azure Virtual Desktop session hosts. Ensure that Azure Virtual D esktop user sessions lock after being idle for 10 minutes. Users must be able to control the lockout time manually from their client computer.” The idle-lock is a user configuration setting that must apply when users sign in to the session hosts, not to their personal devices. Therefore, enable loopback processing (Merge/Replace) in GPO4, which is linked to the VirtualDesktops OU containing the session hosts. Using security filtering or Enforced cannot make user settings in GPO4 override the user’s own OU without loopback. Loopback ensures the AVD hosts impose the 10-minute lock for sessions, while leaving users free to set their own client device policies independently—fulfilling least-impact design.

Within the hybrid governance section of Administering Windows Server Hybrid Core Infrastructure, Microsoft specifies that Azure Arc–enabled servers are the mechanism to bring on-premises and multi-cloud servers under Azure control to apply Azure Policy (Guest Configuration) and Defender for Servers. The prerequisite is installing the Azure Connected Machine agent (Azure Arc agent) on each server: “To manage servers with Azure Policy and configuration management, install the Connected Machine agent to onboard them to Azure Arc; once connected, you can assign Azure Policy guest configuration and monitor compliance just like Azure VMs.” Hybrid Azure AD Join is unrelated to Azure Policy assignment; the Azure Monitor agent provides telemetry but does not onboard to Arc for policy governance; a hybrid runbook worker is for Automation runbooks, not for enforcing Azure Policy. Therefore, to “use Azure Policy to enforce configuration management policies on the servers in Azure and on-premises,” deploy the Azure Connected Machine agent to all servers to Arc-enable them and then assign the desired policies.

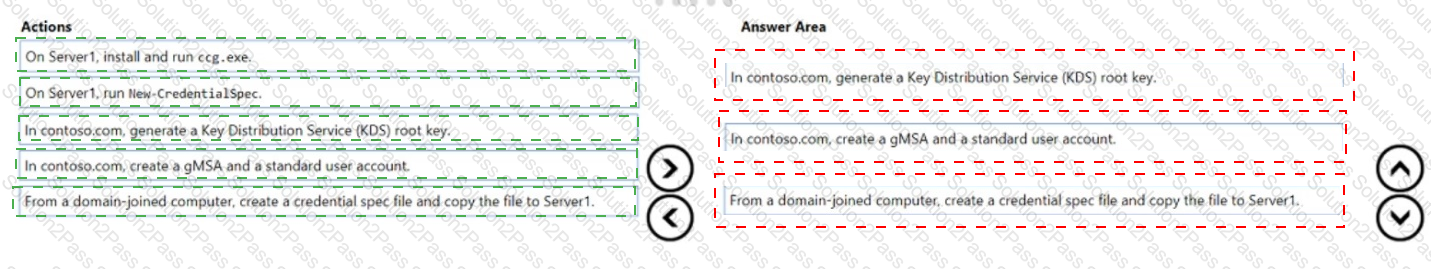

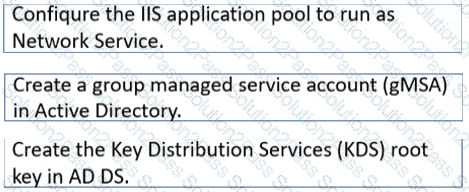

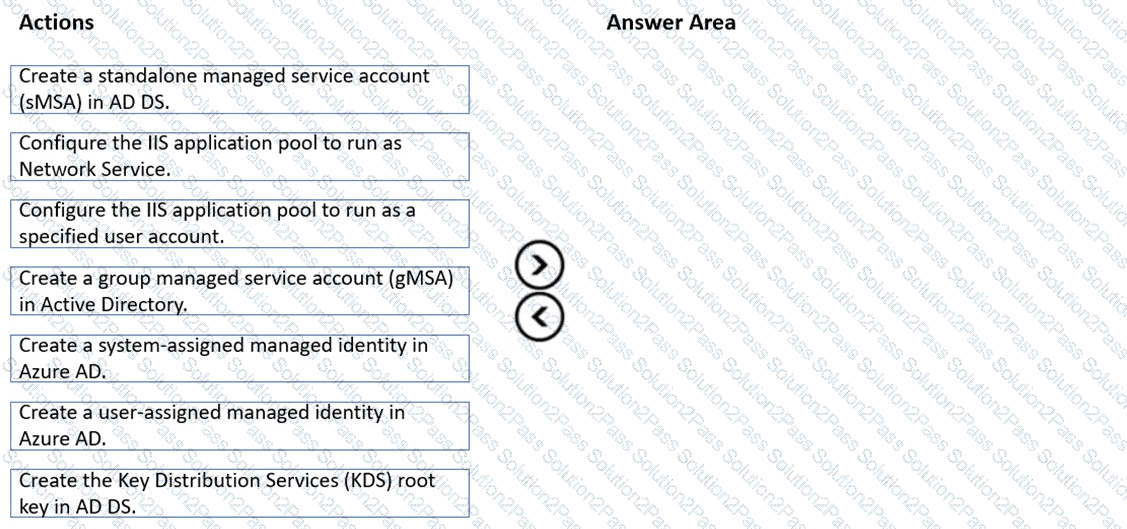

In the Administering Windows Server Hybrid Core Infrastructure materials (AZ-800), Microsoft explains that Group Managed Service Accounts (gMSAs) are designed for services running on multi ple servers and “provide automatic password management, simplified SPN management, and the ability to delegate the management to other administrators.” The guidance further states that before you can create any gMSA, “the domain must have a KDS root key so that the Key Distribution Service can generate and rotate strong, unique passwords for gMSAs on a schedule.” After the KDS root key is created, “use New-ADServiceAccount to create the gMSA and grant the computers (e.g., web servers) permission to retrieve the account password.” For IIS, the course notes specify that a gMSA can be used for app pools: “Configure the IIS application pool identity to a custom account and specify the gMSA name (ending with ‘$’) without a password; the password is managed automa tically by AD and rotates by policy (for example, every 30 days).”

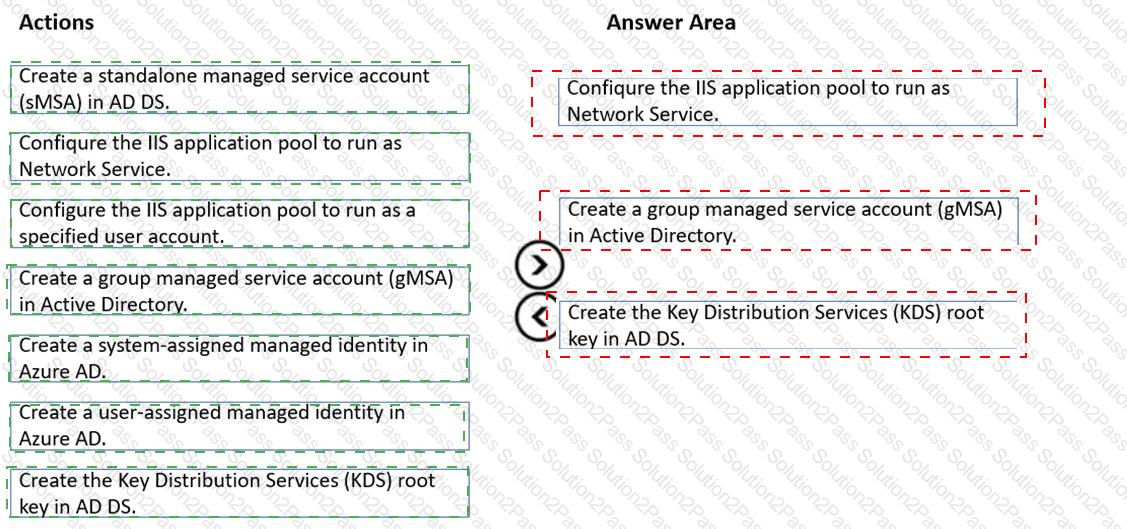

Mapping these requirements to the scenario: Webapp1 runs on WEB1 and WEB2 and must use the same service account with an automatic 30-day password change . Therefore, the correct sequence is: create the KDS root key , create the gMSA , and then set the IIS application pool to run under that account. This fulfills the security requirement while allowing both web servers to share the same, automatically-rotated credentials.

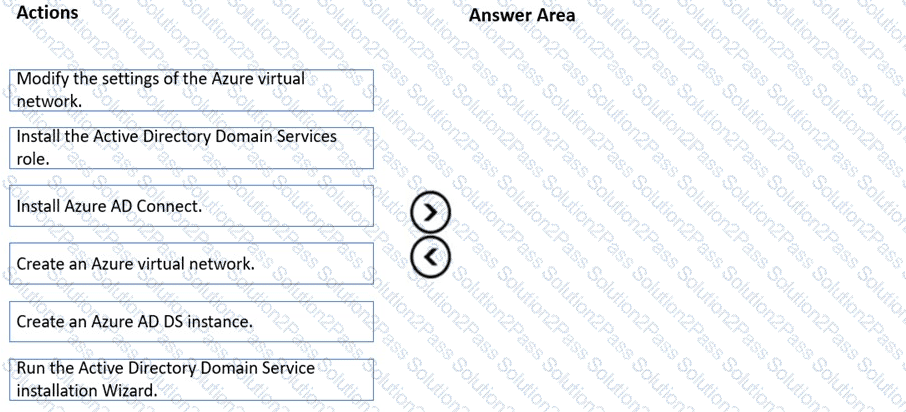

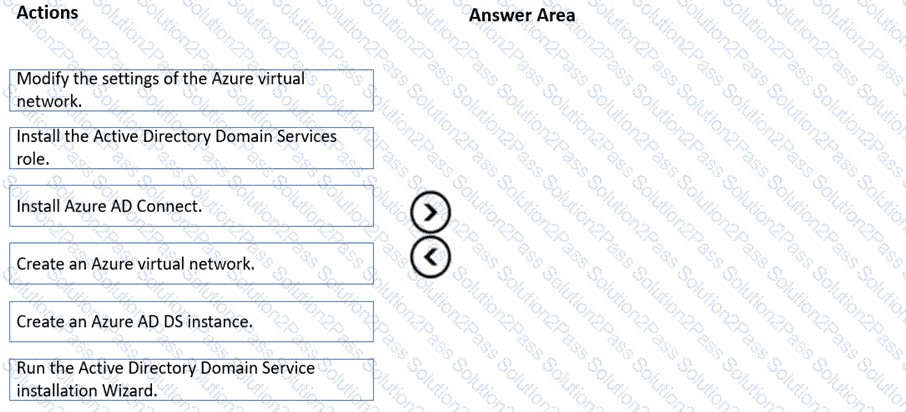

The exam materials explain that to add a new domain controller to an existing AD DS forest in Azure, you deploy a Windows Server IaaS VM and then promote it: “To extend on-premises AD DS into Azure, provision a Windows Server VM in Azure and run AD DS to create an additional domain controll er for the existing domain.” Conversely, Azure Active Directory Domain Services (Azure AD DS) provides a managed domain that is separate from and not writable by your on-premises administrators —you “do not get domain admin rights or access to DCs” —so it cannot be used to add a DC (dc3.corp.fabrikam.com) to the existing corp.fabrikam.com forest. Azure AD Application Proxy and Azure AD administrative units are unrelated to deploying DCs. Therefore, the correct implementation is to deploy an Azure virtual machine in Vnet1, install AD DS/DNS, and promote it to become DC3 in the existing domain.

In the Administering Windows Server Hybrid Core Infrastructure guidance for extending AD DS into Azure, Microsoft states that when you place a domain controller in an Azure virtual network you must run DNS on that domain controller and point the VNet to that DNS server: “Domain controllers in Azure IaaS should host the AD-integrated DNS zone, and the virtual network’s DNS server setting must reference those DC/DNS IPs so Azure VMs use AD DNS rat her than the Azure-provided resolver.” The materials also emphasize that Azure’s default DNS cannot host or manage AD DS zones, so custom DNS is required for domain-joined workloads. Therefore, to meet the requirement you (1) install the DNS Server role on DC3 so it can host the corp.fabrikam.com AD-integrated zone (F), and (2) configure the DNS Servers setting on Vnet1 to the IP of DC3 (and any additional DCs), ensuring all Azure VMs in Vnet1 resolve the domain via AD DNS (D). Creating a public Azure DNS zone or a Private DNS zone with the same AD name is not appropriate for AD-integrated name resolution. This design also supports the security requirement of preventing domain controllers from relying on Internet-facing resolvers.

In Administering Windows Server Hybrid Core Infrastructure , Microsoft states that high availability for DHCP on Windows Server is achieved by using DHCP failover rather than the legacy split-scope (80/20) model. The guidan ce explains that DHCP failover “ synchronizes lease data between two DHCP servers and can be configured in Load Balance or Hot Standby mode on a per-scope basis,” and that you enable it on each DHCP scope to create a partner relationship that automatically replicates scope configuration and active leases. This meets the requirement to keep address assignment available if one DHCP server is down.

The same materials further note that DHCP broadcasts do not traverse routers; therefore, when the partner server i s reachable across a routed boundary (another site/subnet) , you must configure the router as a DHCP relay (IP helper) to forward DHCPDISCOVER messages to the remote DHCP server(s). The text emphasizes: “When clients and DHCP servers are on different subnet s, configure a relay agent on the router to forward requests to the DHCP server IP addresses.”

Applying this to Fabrikam: create DHCP failover between DHCP1 (Scope1) and DHCP2 (Scope2) ( E ) and configure the routers in New York and Seattle as DHCP relays th at forward to both DHCP servers ( B ). You do not use Failover Clustering for DHCP here, and you do not create extra 25% scopes; those are split-scope practices superseded by DHCP failover.

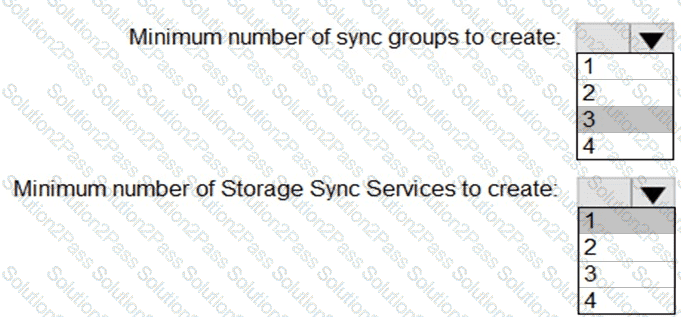

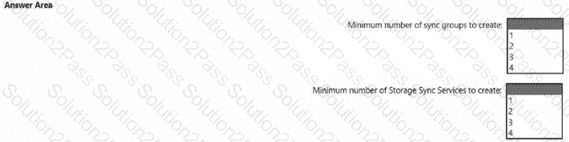

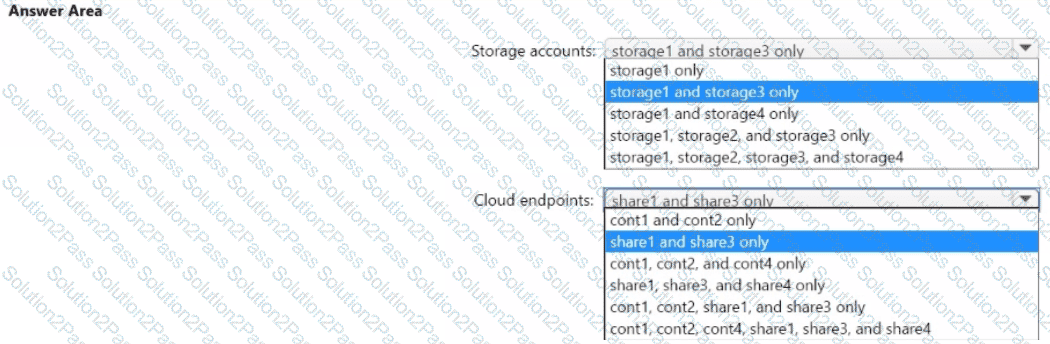

In Azure File Sync architecture (covered in Admin istering Windows Server Hybrid Core Infrastructure under “Implement and manage storage solutions”), the fundamental design points are:

Sync group – “A sync group defines a sync topology. Each sync group contains exactly one cloud endpoint (an Azure file sh are) and one or more server endpoints.” A server endpoint is a folder on a registered Windows Server. A server can participate in multiple sync groups so long as the server endpoints are different paths.

Storage Sync Service – “The Storage Sync Service is the top-level resource that maintains server registrations and houses your sync groups.” A Windows Server registers to one Storage Sync Service at a time, and that service can contain many sync groups and many servers.

Applying these rules to the requirement:

You have three Azure file shares: newyorkfiles, seattlefiles, and companyfiles. Because each sync group maps to one cloud endpoint, you need one sync group per share ⇒ 3 sync groups.

FS1 must sync with newyorkfiles and companyfiles; FS2 must sync with seattlefiles and companyfiles. Since one Storage Sync Service can host multiple sync groups and multiple servers, and a server must be registered to a single service, the most efficient design is a single Storage Sync Service containing all three sync groups and both servers.

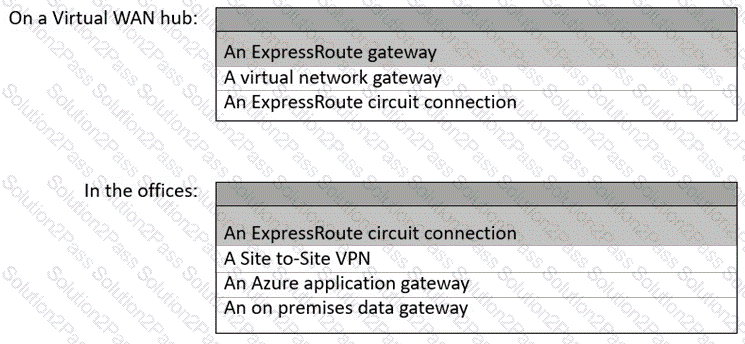

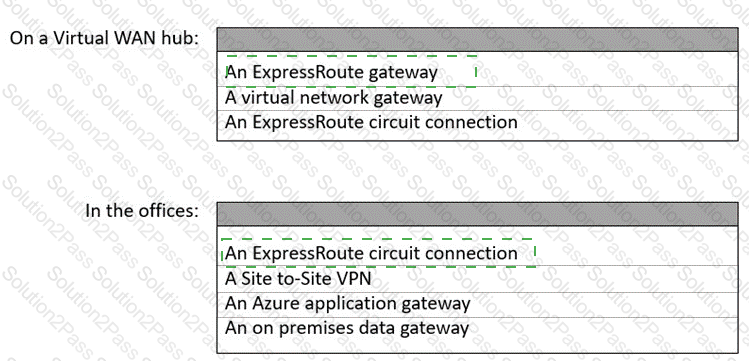

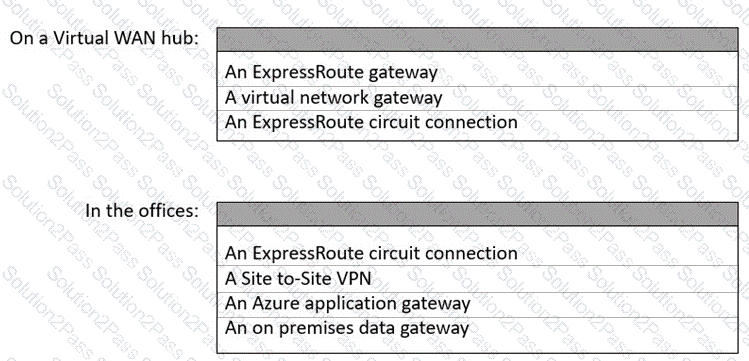

The exam materials for Administering Windows Server Hybrid Core Infrastructure explain that when replacing private WAN links with Azure, Azure Virtual WAN (vWAN) can be used to centralize connectivity. For private connectivity, ExpressRoute integrates directly with a vWAN hub by deploying an ExpressRoute gateway in the hub. The gateway is the Azure resource that terminates ExpressRoute and enables hub-and-spoke routing to connected VNets (such as Vnet1 ). The guides emphasize: “ In a Virtual WAN hub, use the ExpressRoute gateway to connect ExpressRoute circuits and propagate routes acro ss the hub to your virtual networks .”

On-premises, each site (New York and Seattle) requires an ExpressRoute circuit connection provisioned via a connectivity provider. The circuit is the dedicated private connection from the customer edge to Microsoft’s edge and is what the office sites actually use; it’s then linked to the vWAN hub’s ExpressRoute gateway. The same materials note that Site-to-Site VPN is an alternative transport but is not required when ExpressRoute is mandated. Likewise, Application Gateway is a Layer-7 load balancer for HTTP/S traffic, and on-premises data gateway relates to Power BI/Power Platform hybrid connectivity, neither of which establishes network transport between offices and Azure.

Therefore, to meet the requirement “connect both on-premises offices to Vnet1 by using ExpressRoute,” configure an ExpressRoute gateway on the vWAN hub and ExpressRoute circuit connections in the offices.

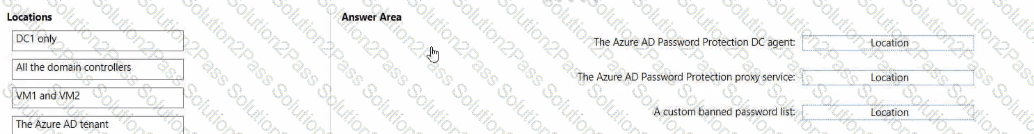

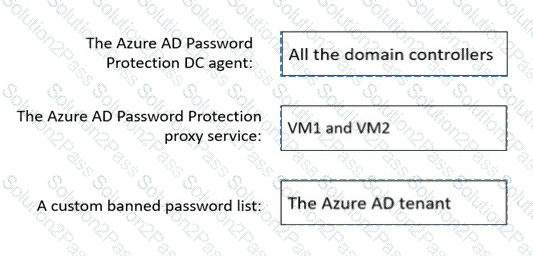

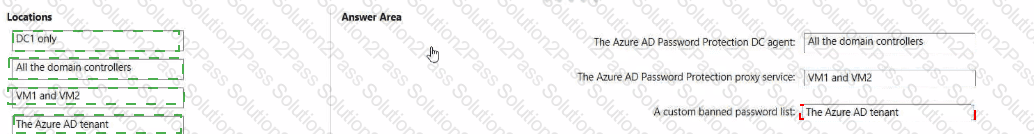

The Administering Windows Server Hybrid Core Infrastructure materials explain that Azure AD Password Protection for on-premises AD uses two components : the DC agent and the proxy service . The DC agent is installed on every domain controller because it “ intercepts password set/change operations locally on the DC and evaluates them against the forbidden-password policy .” The guidance further states that to ensure consistent enforcement “ the DC agent should be deployed to all DCs in the forest, since password changes may occur on any DC .” The proxy service is installed on member servers (not necessarily DCs) and “ relays policy downloads and telemetry to Azure AD on behalf of DCs ,” which satisfies envi ronments where “ domain controllers must not directly contact Internet endpoints .” Finally, configuration of the global and custom banned password lists is performed in Azure AD , where administrators “ define tenant-wide custom banned terms; DCs obtain the p olicy via the proxy and cache it for local enforcement .”

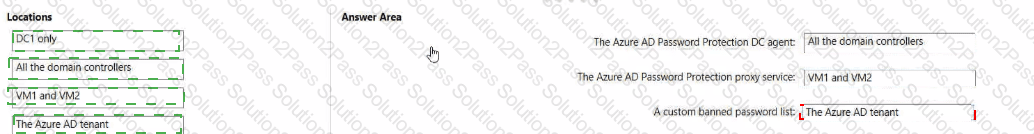

Given Fabrikam’s requirement to prevent DCs from accessing the Internet, the proxy must run on non-DC servers ( VM1 and VM2 ). To guarantee enforcement wherever a password is changed, the DC agent must be on all domain controllers . The custom banned password list is configured in the Azure AD tenant and then distributed to on-premises DCs via the proxy.

Comprehensive and Detailed Explanation with all Administering Windows Server Hybrid Core Infrastructure documents: =

In the Administering Windows Server Hybrid Core Infrastructure study materials, Automanage for Azure VMs is described as a service that “onboards supported Azure virtual machines into a curated set of best-practice services automatically.” The guide notes that Automanage supports Azure IaaS VMs running Windows Server (2012 R2 and later) and common Linux distributions (for example Ubuntu/RHEL), while unsupported operating systems such as Windows client SKUs or older Windows Server releases are excluded. The same content emphasizes that Automanage targets “only supported Azure VMs” and does not extend to machines that don’t meet OS prerequisites.

Given the scenario, Server1 (supported Linux server) and Server2 (supported Windows Server) meet Automanage prerequisites, whereas the remaining Azure VMs are not in the supported matrix (client OS or an older/unsupported server release). Therefore, enabling Automanage on Server1 and Server2 only satisfies the technical requirement to “use Azure Automanage on all supported Azure virtual machines.”

To meet the requirement that VM3 be configured for per-folder quotas, the Windows Server file services module directs you to install File Server Resource Manager (FSRM). The course content explains: “FSRM provides quota management, file screening, and storage reporting. Quotas can be applied to volumes and to specific folders, enabling administrators to control the space consumed.” None of the other features listed deliver folder-level quota capability: Enhanced Storage and Windows Standards-Based Storage Management relate to storage management/SMI-S, and iSNS Server concerns iSCSI discovery services. Therefore, the first step is to install FSRM on VM3; after installation, you can create per-folder quota templates and assignments to enforce the desired limits.

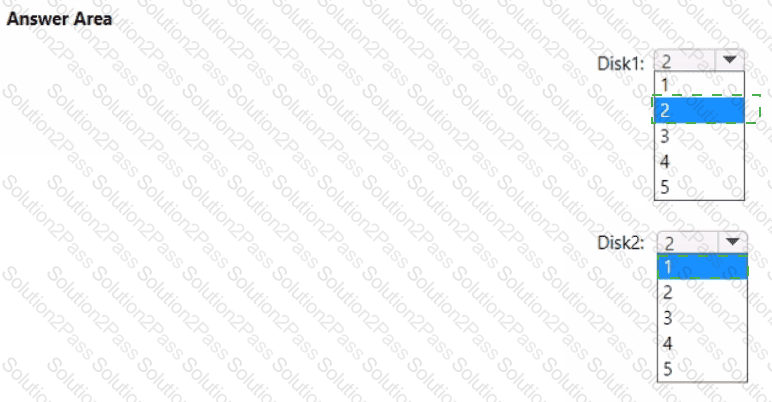

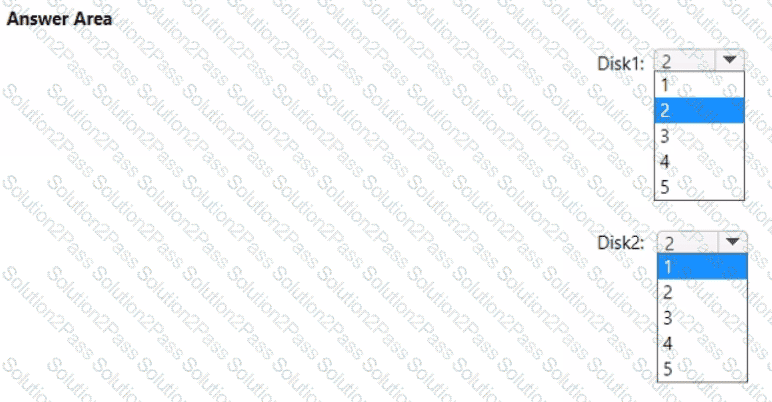

Disk1 (three-way mirror): 2 disks; Disk2 (parity): 1 disk

\In the Administering Windows Server Hybrid Core Infrastructure materials on Storage Spaces resiliency, Microsoft describes how each resiliency type determines simultaneous disk-failure tolerance. The guide explains that mirror spaces keep multiple copies of data: “Two-way mirror writes two copies and can sustain a single disk failure; three-way mirror writes three copies and can sustain the loss of any two disks without data loss.” It also differentiates parity spaces , which stripe data with parity information: “Parity provides capacity efficiency comparable to RAID-5 and tolerates a single disk failure (use dual parity to withstand two failures).”

Applying these to SSPace1:

Disk1 uses a three-way mirror across eight physical disks. By definition, a three-way mirror survives two concurrent disk failures and remains online, satisfying the “always available” requirement.

Disk2 is configured as parity across twelve ph ysical disks. Standard parity (single parity) is equivalent to RAID-5 and survives one disk failure ; only dual parity would allow two, but the configuration provided specifies parity (not dual parity).

Therefore, the maximum simultaneous physical disk fail ures while maintaining availability are 2 for Disk1 and 1 for Disk2 .

The Administering Windows Server Hybrid Core Infrastructure content notes that Microsoft Entra Connect cloud sync uses lightweight agents and supports synchronizing specific OUs from multiple forests into a single tenant. The guide highlights that cloud sync “is designed for multi-forest or cross-organization scenarios and allows scoping to selected OUs and groups,” enabling granular onboarding of just the identities you need. The requirement says “the users in the Marketing OU (in Fabrikam’s forest) must have access to storage1.” Granting access to Azure Files using Entra-based authorization requires that those users exist in the same Entra tenant. Cloud sync enables importing only the Fabrikam Marketing OU into A. Datum’s tenant without establishing full trust for all users. Azure AD Connect in active or staging mode would target the A. Datum forest and isn’t intended for selectively bringing in a separate partner forest OU; AD FS is a federation solution and does not create tenant objects for ACLs on Azure resources like Azure Files. Therefore, implement Microsoft Entra Connect cloud sync and scope it to the Marketing OU to meet the requirement.
