OMG OMG-OCUP2-ADV300 Practice Test Questions Answers

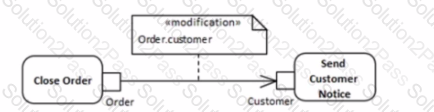

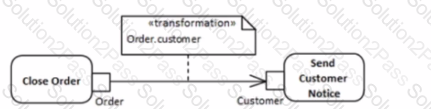

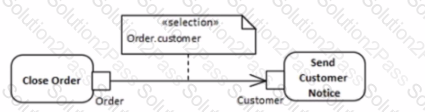

The correct answer is C, which uses a transformation edge to indicate that when an order is closed, information is transformed or processed to notify the customer. This is expressed in UML with an object flow that has a transformation property, which specifies how an object is transformed from one state to another as it flows along the edge. Thisis appropriate for a scenario where closing an order leads to the creation of a customer notice, implying some form of transformation or processing of the order information to generate the notice.

References:

UML 2.5 Specification: The UML 2.5 specification details how object flows with transformations can be used to show that one piece of data is transformed into another as it flows from one action to another.

Alf (Action Language for Foundational UML) is essentially a textual notation for UML behaviors that can be attached to a UML model in any place where a UML behavior can be specified. Alf Input text serves as a concrete representation for UML model elements within the fUML, allowing for behavioral modeling using a textual surface notation. This facilitates a model-driven process capable of generating fully executable source code, thus integrating structural modeling with behavioral modeling12. Alf allows for detailed behavioral specification in a textual form as opposed to the more cumbersome graphical activity diagram notation, making it a practical tool for specifying the operational behavior of a system within the UML framework2.

In UML, operations can have preconditions defined, which are constraints that must be true before the operation is invoked. When an operation is redefined in a subclass, it is possible to add new preconditions or alter existing ones. Redefining an operation does not typically allow for changes to its scope or the addition of templates, but the preconditions may be expanded to reflect the semantics of the subclass. This is in line with the behavioral specification of operations in UML, where preconditions are part of the behavioral contract of an operation, as described in the UML 2.x Superstructure Specification.

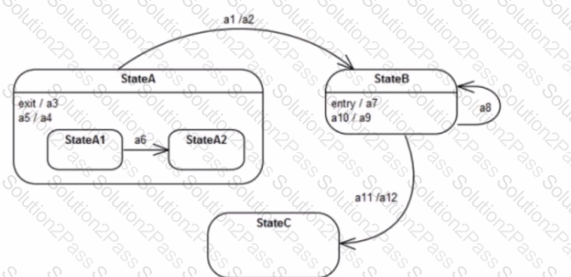

Assuming the system is inStateA1, the behaviors (or actions) executed when moving toStateCwould begin with any behaviors associated with internal transitions or exit actions withinStateA1. Transitiona6would be the trigger to go fromStateA1toStateA2, executinga4(the exit action ofStateA1) before the transition. Upon exitingStateAaltogether (a3is the exit action forStateA), the system would follow the transition labeleda1toStateB, executinga7as the entry action ofStateB. Then, the transition fromStateBtoStateCwould occur, likely with an internal trigger withinStateBor by completion, followed bya11to complete the transition intoStateC. The actions follow the flow of state transitions and the associated entry and exit actions as prescribed by UML state machine behavior specifications.

Protocol Conformance in UML is a relationship between protocol state machines that ensures consistency in behavior inheritance:

A.Incorrect as it describes a general-to-inherited relationship, which is not the focus of protocol conformance.

B.Incorrect, as it describes a relationship the wrong way around (general to nested).

C.Correct. Protocol Conformance ensures that a specific Protocol State Machine conforms to the rules and constraints specified by a redefined, more general Protocol State Machine.

D.Incorrect, because it generally describes conformance but does not specifically focus on the relationship between specific and general state machines in the context of protocols.

References:

UML Specification: Protocol State Machines section.

Specifics of protocol conformance are detailed under state machine and classifier behaviors in the UML 2.5 Documentation.
