Alf (Action Language for Foundational UML) is essentially a textual notation for UML behaviors that can be attached to a UML model in any place where a UML behavior can be specified. Alf Input text serves as a concrete representation for UML model elements within the fUML, allowing for behavioral modeling using a textual surface notation. This facilitates a model-driven process capable of generating fully executable source code, thus integrating structural modeling with behavioral modeling12. Alf allows for detailed behavioral specification in a textual form as opposed to the more cumbersome graphical activity diagram notation, making it a practical tool for specifying the operational behavior of a system within the UML framework2.

In UML, operations can have preconditions defined, which are constraints that must be true before the operation is invoked. When an operation is redefined in a subclass, it is possible to add new preconditions or alter existing ones. Redefining an operation does not typically allow for changes to its scope or the addition of templates, but the preconditions may be expanded to reflect the semantics of the subclass. This is in line with the behavioral specification of operations in UML, where preconditions are part of the behavioral contract of an operation, as described in the UML 2.x Superstructure Specification.

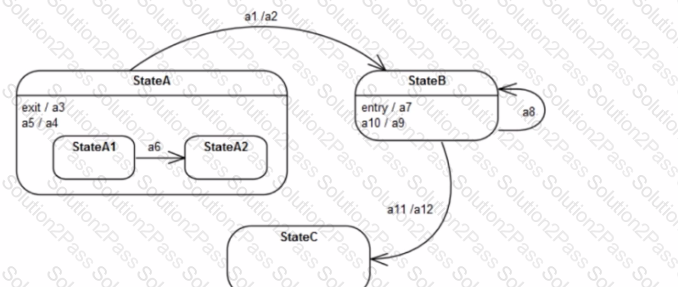

Assuming the system is inStateA1, the behaviors (or actions) executed when moving toStateCwould begin with any behaviors associated with internal transitions or exit actions withinStateA1. Transitiona6would be the trigger to go fromStateA1toStateA2, executinga4(the exit action ofStateA1) before the transition. Upon exitingStateAaltogether (a3is the exit action forStateA), the system would follow the transition labeleda1toStateB, executinga7as the entry action ofStateB. Then, the transition fromStateBtoStateCwould occur, likely with an internal trigger withinStateBor by completion, followed bya11to complete the transition intoStateC. The actions follow the flow of state transitions and the associated entry and exit actions as prescribed by UML state machine behavior specifications.

Protocol Conformance in UML is a relationship between protocol state machines that ensures consistency in behavior inheritance:

A.Incorrect as it describes a general-to-inherited relationship, which is not the focus of protocol conformance.

B.Incorrect, as it describes a relationship the wrong way around (general to nested).

C.Correct. Protocol Conformance ensures that a specific Protocol State Machine conforms to the rules and constraints specified by a redefined, more general Protocol State Machine.

D.Incorrect, because it generally describes conformance but does not specifically focus on the relationship between specific and general state machines in the context of protocols.

References:

UML Specification: Protocol State Machines section.

Specifics of protocol conformance are detailed under state machine and classifier behaviors in the UML 2.5 Documentation.

Protocol State Machines in UML are used to specify the allowable protocol transitions that can be observed in the instances of a classifier. The interpretations that can be defined for protocol state machines are:

A.Behavioral and protocol are not specific types of interpretations but rather describe aspects of state machines in general.

B.Declarative and procedural describe styles or approaches to programming or specification, not specific to UML state machine interpretations.

C.Declarative and executable is the correct answer. Declarative interpretations specify the allowed sequences of events in a state machine, while executable interpretations are concerned with the actual implementation that can be executed by a machine.

D.Executable and non-executable are distinctions but not specifically pertaining to protocol state machine interpretations alone.

References:

UML Specification: State Machines chapter, particularly sections on protocol state machines.

Further details can be found in the UML 2.5 Documentation discussing the differences between different state machine interpretations.

When extending a UML metaclass with a stereotype, it is critical to ensure that the metaclass and the stereotype are semantically related. This is because a stereotype is a way to extend the UML metamodel to create new kinds of model elements that can include additional semantics and constraints, but still adhere to the base behavior defined by the metaclass. The stereotype should be a meaningful specialization of the metaclass and not contradict its fundamental semantics. By keeping them semantically related, there is less need for additional constraints on the metamodel, and the resulting profile is more intuitive for users. This is consistent with the principles described in the UML 2 Specification, particularly in the sections on profiles and stereotypes.

StateMachine Redefinition in UML allows for the specialization of a StateMachine by a derived Classifier. This is crucial as it ties into the broader capability of UML to specialize behaviors and classifiers:

Ais incorrect; UML does discuss StateMachine Redefinition.

Bdescribes one aspect of redefinition but is too narrow as it omits that redefinition can also redefine transitions and internal behaviors, not just states or events.

Cdescribes more of an error correction or revision process, which is not specifically what StateMachine Redefinition is about.

Dcaptures the essence of StateMachine Redefinition, emphasizing that it is a necessary extension of UML's capabilities to allow for specialization and refinement of classifiers and their behaviors.

References:

UML Specification, Section on StateMachines

StateMachine Redefinition is further elaborated in UML 2.5 Documentation under the Behavior StateMachines sections.

In UML, a Dependency is a relationship that signifies that one NamedElement, the client, depends on another NamedElement, the supplier, meaning that a change in the supplier could affect the client. If NamedElement A is the supplier and NamedElement B is the client in a Dependency relationship, and there is a Comment indicating that both participate in a transformation, the interpretation is that B (the client) depends on A (the supplier) for that transformation. The comment does not necessarily change the nature of the Dependency relationship; it simply adds additional information about the nature of their interaction. A transformation could mean that B transforms A's supplied element in some way, but in terms of UML Dependency relationships,it would still be interpreted as "A depends on B" or "B requires A for its transformation". This interpretation aligns with the UML 2.x Infrastructure and Superstructure specifications, which explain Dependencies and their meanings within the UML metamodel.

The Model-Driven Architecture (MDA) approach is a design methodology that covers the entire software development lifecycle, from requirements to technology implementation. It emphasizes the use of models as the primary artifacts in the development process, allowing for a more abstract and high-level approach to software design. MDA supports the transformation of models from platform-independent models (PIMs) to platform-specific models (PSMs) and ultimately to code, ensuring that the initial requirements are accurately reflected in the final technology implementation.

MDA is not limited to Meta Data Aspects (A) or Design and Architectural Models (B) alone, nor is it primarily about deriving models from Artificial Intelligence Systems (D). Instead, it provides a comprehensive framework that facilitates the creation of software systems by bridging the gap between business requirements and technology solutions.

References:

An MDA Approach Based on UML and ODM Standards to Support Big Data Analytics1

Improving Automatic UML2 Profile Generation for MDA Industrial Development2

Applying 4+1 View Architecture with UML 2

In UML, when an operation is marked with the term{guarded}, it means that the operation is subject to a concurrency constraint. It specifies that the operation cannot have overlapping executions; in other words, if the operation is already in execution, a new attempt to start it will have to wait until the current one completes. This prevents race conditions and ensures thread safety for that operation when dealing with concurrent accesses in multi-threaded environments. This interpretation is based on the UML 2.x Superstructure Specification, which describes how operations can be marked with constraints to define their behavioral features in terms of concurrency.

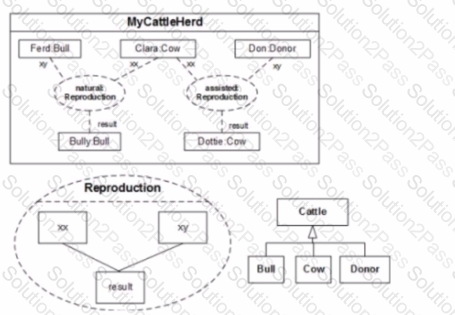

The UML diagram illustrates two types of reproduction for cattle: natural and assisted. In natural reproduction, a bull (xy) and a cow (xx) result in a new cattle (result), which aligns with biological principles. The same principle applies to assisted reproduction, where the donor is also cattle (xy), and the result is a new cattle. Since bothFerd BullandDon Donorare specialized types ofCattle, and the result of both reproductions isCattle, it implies that bothxxandxyare of typeCattle, but within the context,xxis specifically aCow. Therefore,xxis aCow,xyisCattle(which can be aBullorDonor), and the result is alsoCattle. This interpretation aligns with the principles of UML where specific instances (likeFerd BullandDon Donor) are instances of the more general classifierCattle.

A minimal reflexive metamodel is a metamodel that is expressed using itself, meaning it can be used to describe its own structure and semantics. This concept is akin to a self-describing system. In the domain of metamodeling, this allows for a consistent and coherent definition of the metamodel that is both the subject and the tool of its own description2. This reflexivity is a key property that enables the metamodel to be used in a variety of contexts, ensuring that it remains consistent with its own definitions.

A stereotype in UML is a powerful extension mechanism that allows developers to tailor UML models for particular domains or platforms. Stereotypes can adapt UML model elements by adding constraints, changing notation, and adding attributes and operations. However, they cannot remove existing constraints from a model element12.

Notation Change (A): Stereotypes can indeed change the notation of a model element to make it more expressive or domain-specific. For example, a stereotype could be used to visually distinguish between different kinds of classes in a class diagram1.

Adding Constraints (B): Stereotypes can add new constraints to a model element to specify additional rules or requirements that are not defined by the standard UML1.

Removing Constraints ©: This is not a capability of stereotypes. Constraints define rules that must be followed, and once they are part of a model element, they cannot be removed by a stereotype. Instead, they are an intrinsic part of the model’s definition1.

Adding Attributes and Operations (D): Stereotypes can be used to add attributes and operations to a model element, which allows for the specification of additional properties or behaviors that are not part of the standard UML metamodel1.

In summary, while stereotypes are versatile and can extend the capabilities of UML model elements in various ways, they do not have the ability to remove constraints that are already applied to those elements. This is because constraints are consideredfundamental rules that govern the integrity of the model, and removing them would potentially violate the model’s correctness or completeness1.

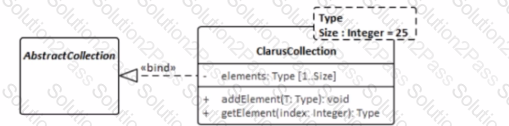

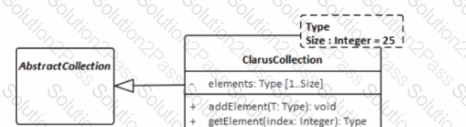

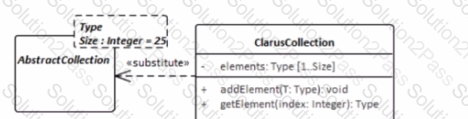

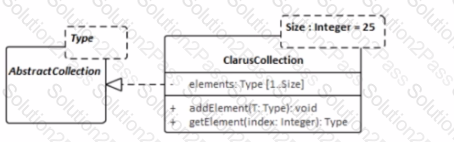

The UML model fragment that best supports the project's requirements for collection class design is one that allows the fixed length of the collections to be specified but also permits flexibility for collections longer than 25 elements. In Option C, theClarusCollectionclass is shown as a template class with a template parameterSizeset to a default of 25. However, the dashed lines and the separate box forTypeandSizeindicate that while there is a default value, it can be overridden. This means that theSizecan be parameterized, thus allowing the creation ofClarusCollectioninstances with different fixed lengths, not just 25. This design will enable most collections to be created with the default size of 25, but also allows for creating collections with sizes greater than 25, providing the flexibility required by the project's requirements. This adheres to the UML 2.x specification on templates and parameterization.

The capability that enables the discovery and manipulation of metaobjects and metadata is Reflection. In the context of the Meta-Object Facility (MOF), reflection allows you to examine and interact with the structure and semantics of metamodels, models, and their elements. It provides a way to introspect and dynamically access information about the modeling constructs, such as classes, attributes, relationships, and constraints.

Regarding the development of alternate syntax for Actions in UML:

A.Incorrect, as it does not address the need to align with the standard abstract syntax of UML.

B.Correct. When developing alternate syntax (graphical or textual), it should still map back to the standard abstract syntax of UML, ensuring that the semantic meaning is preserved across different representations.

C.Incorrect, as UML does not explicitly forbid alternate graphical concrete syntax if it adheres to the abstract syntax rules.

D.Also incorrect, as alternate textual syntax is allowed provided it conforms to the abstract syntax.

References:

UML Specification: Notation section, which discusses the requirements and flexibility regarding syntax representation.

More on the abstraction and syntax can be found in the introductory and foundational chapters of the UML 2.5 Documentation.

The answer is B, "The transmitted object may be copied and the object identity may be changed." When an object is sent from one action to another, it is not always guaranteed that the identity of the object will be preserved. It depends on the semantics of the transmission, which may allow for object copying, and hence the object identity may change during the process.

References:

UML 2.5 Specification: The section on send actions within activity diagrams describes the behavior of object flows, including transmission semantics regarding object identity and copying.

fUML (Foundational UML) is a subset of the standard Unified Modeling Language (UML) that includes standard, precise execution semantics. This subset encompasses typical structural modeling constructs of UML such as classes, associations, data types, and enumerations, as well as the ability to model behavior using UML activities composed from a set of primitive actions. Therefore, a model constructed in fUML is executable in the same sense as a program in a traditional programming language, but with the level of abstraction and richness of expression of a modeling language2.

Given that the system is inStateA1, the sequence of triggers that will move the system toStateCmust take into account the transitions and their associated triggers as defined in the UML state diagram. Starting fromStateA1, the triggera5will cause a transition withinStateA, followed bya6, which moves toStateA2. The triggera5is not relevant as it is an internal transition inStateA1. Then,a3(the exit action forStateA) anda2would be followed to leaveStateAaltogether. Once out ofStateA,a1is used to transition toStateB, wherea10is an entry action, not a trigger. Finally, to get fromStateBtoStateC, the triggersa11followed bya12are needed. This sequence of triggers reflects the correct usage of exit, entry, and transition triggers as defined by UML state machine semantics.
