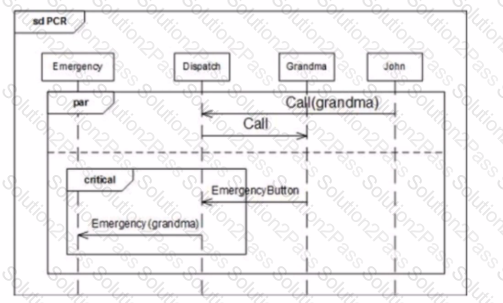

In UML 2, a “critical” section in a sequence diagram, like the one depicted, refers to a period where certain interactions are protected so that they can be executed without interruption or interference from other interactions (events). This is akin to a critical section in multi-threading where certain threads have exclusive access to resources or operations for a period of time. The correct answer is option C because it aligns with this definition: during the “critical” section on the sequence diagram, no other events may interfere between its events.

In addition to ObjectFlow, which is used to denote the flow of objects between activities in a UML Activity diagram, data movement can also be facilitated through:

A.Pin is a point on a node that is used to accept or provide objects or data, but does not move data by itself.

B.Correct. Variables can be used to hold and move data within an activity, facilitating state maintenance or transitions between different actions.

C.Property, while it holds data, typically pertains to classes or components, not activities.

D.ControlFlow dictates the order of execution but does not inherently move data.

References:

UML Specification: Activity Diagrams section.

Details on how data can be managed within activities can be explored in the UML 2.5 Documentation, particularly under Activity and Object Nodes.

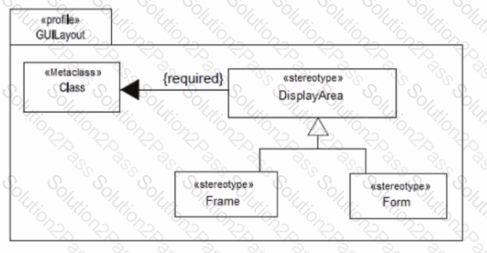

The UML diagram fragment provided shows a UML profile with a required extension from the metaclassClassto the stereotypeDisplayArea, which in turn has two subclassesFrameandForm. The use of{required}indicates that whenever an instance ofClassis extended by theDisplayAreastereotype, it becomes mandatory to do so. However, this does not enforce that every instance ofClassmust be linked toDisplayAreaor its subclasses (FrameorForm). It only means that if theDisplayAreastereotype is applied, it is required. Therefore, there is no obligation for every instance ofClassor its subclasses to be stereotyped asDisplayArea,Frame, orForm. It's also worth noting that the last option (E) could be considered true in some interpretations of UML, but given the options provided and common UML practices, option D is more accurate.

In UML, the{subsets}keyword is used to indicate that one property is a subset of another property. In the provided diagram fragment, the association end-b {subsets part}indicates that the propertybon classAis a subset of the propertyparton classB. This means that the elements associated withAthroughbare contained within the larger set associated withBthroughpart. This kind of relationship is typically used in more complex class models where a part-whole hierarchy is represented, and it allows the model to show that certain associations are more specific subsets of a more general association. This usage is explained in the UML 2.x Superstructure Specification, where the semantics of association subsets are defined.

For asynchronous invocations in UML, when an exception is thrown and there is no matching exception handler within the activity, the exception is effectively lost because there is no direct mechanism to propagate it back to the caller. This reflects the nature of asynchronous communication where the calling process does not wait for the completion of the called process and, thus, may not be designed to handle exceptions that occur during the called process.

References:

UML 2.5 Specification: The UML specification describes the behavior of actions within activities and how exceptions are handled, or not handled, in the case of asynchronous calls. It specifically states that for asynchronous calls, the exception is not propagated back to the caller as there is no return flow defined for such invocations.

In UML, a template is a parameterizable element, and the parameters for a template are typically classes or other classifiers. According to the UML 2.x Superstructure Specification, all subclasses of Classifier can potentially be used as template parameters. This includes classes, components, datatypes, interfaces, signals, and more. The specification provides the flexibility to define template parameters that are specialized types, allowing for powerful and reusable designs. The ability to parameterize these elements is foundational to creating generic and reusable model elements, which is a core capability of the UML's templating mechanism.
