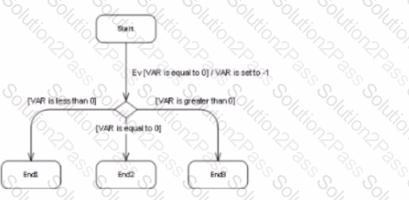

UML 2 state machine concepts, here's the analysis of the state machine's behavior after the event and the most likely answer:

State Transition Triggered by Event Ev:

The state machine starts in the "Start" state. When the event "Ev" occurs, there's a transition leaving "Start" with a condition "[VAR is equal to 0]".

Value of Local Variable VAR:

The prompt specifies that the value of local variable VAR is equal to zero at the time of the event.

State Transition Evaluation:

Since the condition "[VAR is equal to 0]" is true (given VAR's value is zero), the transition from "Start" to state "State1" is triggered.

Completion of Run-to-Completion Step:

Upon reaching "State1", there are no further outgoing transitions or events to consider. "State1" itself has no exit actions specified. Therefore, the run-to-completion step reaches its end at "State1".

Most Likely Answer:

Based on the analysis above, the most likely answer is:

C. End3

Explanation for Other Options:

A. End1: There's no direct path from "Start" to "End1".

B. End2: Similar to option A, there's no transition leading to "End2" when the event occurs and VAR is zero.

D. Start: The state machine transitions out of "Start" upon the event "Ev". It won't return to "Start" without another transition.

Possible Ambiguity:

It's important to note that state machines can involve complex logic and actions within states. While "State1" appears to be a terminal state in this case, it's conceivable that there could be hidden actions within "State1" that modify VAR or trigger further transitions. The prompt and the provided image don't provide enough information to definitively rule out such possibilities.

Considering the Absence of Mentioned Ambiguity:

Assuming there are no such hidden actions or unspecified behaviors within "State1", then answer C (End3) is the most reasonable conclusion based on the information available in the prompt and image.

The abstract syntax of UML is specified using the Meta-Object Facility (MOF) metamodel. MOF is a modeling language that provides a meta-meta-model at the top layer of the four-layer metadata architecture, which is used to define the metamodels, like the UML. The MOF specification defines the structure and semantics for constructing metamodels, including the UML. By using MOF, UML ensures that its structure is well-defined and can be processed by tools that understand MOF-based metamodels. The use of MOF to specify UML abstract syntax ensures a clear, structured, and standardized method of describing the semantics of UML components, enabling consistent interpretation and implementation across different modeling tools and environments.

In UML, the aggregation kind 'composite' is one of the two types of aggregation, shared and composite. Composite aggregation, also known as composition, implies that the composed objects do not have a separate lifecycle from the owner object and are parts of the whole. This is in contrast to shared aggregation (aggregation), where the parts can be shared with different owners and have their own lifecycle.

Let's look at the options:

A. Composite aggregation implies ownership and is related to, but not equivalent to namespace containment. Namespace containment is more about the scope for named elements rather than lifecycle management.

B. While it's true that instances of the composed object's type are often associated only with the composite object, the key aspect of composite aggregation is not just the exclusive context but the lifecycle dependency, which is not captured in this option.

C. This option is correct because, in UML, composite aggregation (composition) implies that the parts are existentially dependent on the whole. When the composite (whole) object is destroyed, so are all of its parts, indicating a strong lifecycle dependency between the composite object and its composed parts.

D. This option describes a relationship more akin to set theory than UML composition. In UML, composite aggregation doesn't deal with subsets and unions in the context of set theory.

Thus, the most accurate answer, according to the UML specification regarding composite aggregation, isC: When the Property's composite object ceases to exist, all of its composed objects also cease to exist.

Abstractions in a model are helpful because they can express or suppress detail as needed. This capability is essential in managing complexity in a model by focusing on the high-level, essential aspects of the system while omitting or simplifying the less critical details. This selective detail management aids in understanding and analyzing the system’s core functionality without getting overwhelmed by its intricacies. Abstractions facilitate clearer communication, more focused analysis, and more efficient system design by highlighting the most relevant aspects of the system in various contexts.

A valuable model in UML and systems design is characterized by its usefulness rather than its complexity or how "correct" it is in an engineering sense. A model's primary objective is to effectively communicate the key aspects of a system or process, and simplicity often enhances this communication by making the model easier to understand and use. The value of a model thus comes from its ability to facilitate decision-making, problem-solving, and understanding among stakeholders. This perspective aligns with the principle of Occam's Razor in modeling, which suggests that simpler solutions are preferable when all other factors are equal. In UML, a model that provides clear insights with minimal complexity is considered more valuable because it is accessible to a wider audience and can be more readily applied to solve real-world problems.

In the context of a UML (Unified Modeling Language) model, the class named 'Employee' represents a template for all entities that are classified as employees within the business enterprise model. Therefore, the correct answer is:

B. The set of all employees of the company

The term 'Employee' in the class diagram is a UML Class, which is defined as a description of a set of objects that share the same attributes, operations, relationships, and semantics (UML 2.5 specification, section 9.2). A class in UML is a blueprint from which individual objects (instances of the class) are created. It is not a representation of any single employee, an anonymous employee, or a diagram of an employee, but rather the conceptual model that defines the properties and behaviors of all employee instances in the domain being modeled.
