The diagram displays an activity labeled "Account Authentication".

There are two main paths branching from the start of the activity:

One path leads to an activity named "Validate Password".

The other path leads to an activity named "Send OTP".

Both paths converge into a decision diamond labeled "Authentication Successful?".

Depending on the outcome of the decision (Yes/No), the flow continues to either a "Grant Access" or "Deny Access" activity.

Explanation of why Option B is Correct:

This diagram accurately represents the scenario of account authentication where there are two alternative paths for validation: using a password or an OTP (One-Time Password). The decision point after these paths merges the flow for a final decision on granting or denying access based on successful authentication.

Comparison with Other Options:

Option A, C, and D show different activity sequences that don't align with the two initial validation paths (password vs. OTP) and the subsequent decision point based on authentication success.

References

UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams https://www.omg.org/spec/UML/2.4/Superstructure/PDF

Enumeration literals in UML are used within an enumeration to define a set of named constants. According to the UML specification:

A. This statement is correct. Enumeration literals are indeed immutable, which means once they are defined within an enumeration, their values cannot be changed.

B. Enumeration literals cannot be anonymous; they must be named so that they can be referenced unambiguously within the model.

C. Enumeration literals can be compared for equality. In fact, this is one of their primary uses, to allow for comparison between different values of an enumerated type to determine if they are the same.

D. Enumeration literal names must be unique within their enumeration. They cannot appear more than once as this would cause ambiguity in references to the literals.

The most accurate statement according to the UML 2 Foundation specification isA: EnumerationLiterals are immutable.

In UML, an Object Diagram is a type of static structure diagram that shows a snapshot of the detailed state of a system at a point in time. It focuses on some particular set of objects and attributes, and the links between them. When it comes to the number of instances that can be represented in an Object Diagram, it can range from zero (in cases where the diagram is used to show that no instances of a class exist under certain conditions) to many instances. Therefore, an Object Diagram can show 0 instances, 1 instance, or many instances, which is represented by the multiplicity notation 0..*.

Therefore, the correct answer is:

D. 0..*

In UML use case diagrams, when specifying the number of actors involved in a use case, a multiplicity marker can be used. The multiplicity marker is a number placed near the actor symbol that denotes how many instances of the actor are involved in the use case.

Option C correctly uses a multiplicity marker of '2' next to the actor 'Player', which indicates that exactly two instances of 'Player' are involved in the "Play Tennis" use case.

Here is a brief explanation of why the other options are incorrect:

A) Option A shows two separate 'Player' actors involved in "Play Tennis" without a multiplicity marker, implying possibly different kinds of players, but does not specify that exactly two instances are required. B) Option B shows two 'Player' actors involved in "Play Tennis" without a multiplicity marker, also not specifying the exact number of instances required. D) Option D uses a multiplicity marker, but it is incorrectly placed near the 'Play Tennis' use case instead of the 'Player' actor, which does not follow UML notation for indicating actor multiplicity.

Therefore, the correct answer is:

C. Option C

State machines are ideal for modeling systems or objects that exhibit distinct states and transitions between them based on events or conditions. Let's analyze why option D is the best fit and why others are less suitable:

D - Transitions in a Physical System:The transitions between different states of matter (ice, water, steam) are governed by well-defined conditions (changes in temperature and pressure). State machines can effectively represent these states and the rules governing the changes between them.

Other Options:

A - Control of a Digital Watch: While a state machine could model some aspects of a watch (e.g. time display mode, set mode), interactions with buttons are better represented by event-driven models or user interface flow diagrams.

B - Client-Server Messaging: Sequence diagrams or communication diagrams are more suitable for modeling message exchanges, as they focus on the interaction between different components.

C - Office Automation Workflows: Business process modeling notations (BPMN) or data flow diagrams would be more appropriate for capturing the processes and data movements in an office system.

E - Distributed Medical Insurance System: A combination of sequence diagrams (for message exchanges), activity diagrams (for processes), and state machines (for behavior within individual system components) would likely be needed to model a complex system like this.

References:

UML Specification (Superstructure) Version 2.5.1: The section on state machines is a primary reference for their capabilities (https://www.omg.org/spec/UML/2.5.1 ).

Modeling Guides: Various resources on UML modeling techniques often provide insights into when different diagram types are most appropriate.

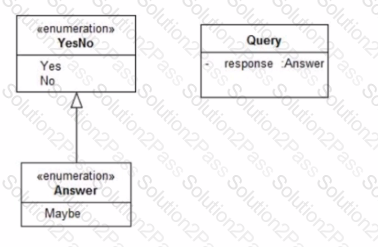

The second diagram fragment you provided includes two enumeration types, YesNo and Answer, where YesNo is a generalization of Answer. The class Query has an attribute 'response' of type Answer. Given that YesNo is a generalization of Answer, the possible values for 'response' include the literals of Answer plus those inherited from YesNo. Since Answer includes 'Maybe', and YesNo includes 'Yes' and 'No', all three are valid values for 'response'.

References:

UML 2.x Superstructure Specification: Discusses attributes and their types, the concept of generalization, and how attributes of a generalized type can take on values from their own literals as well as those from their parent in the hierarchy.

UML 2.x Infrastructure Specification: Explains the foundational modeling constructs related to enumeration, classes, and attributes, which provides the basis for determining the legal values of an attribute based on its type's enumeration literals.

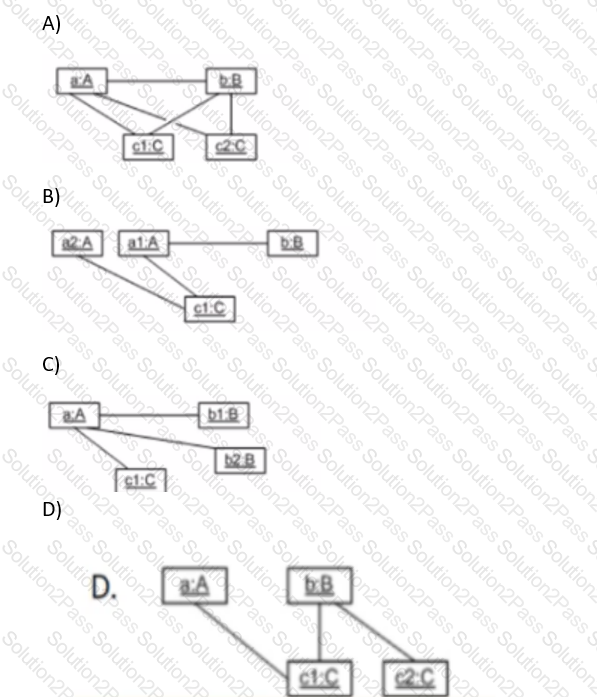

The question asks to identify which object diagram corresponds to the provided class diagram. In order to verify which object diagram is correct, we must look at the class diagram to understand the relationships and multiplicities between the classes, and then match these with the objects and links in the object diagrams.

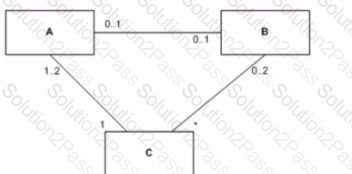

The class diagram (not visible in your query but implied to be the reference for the object diagrams provided) must contain three classes, A, B, and C, with specific multiplicity relationships among them. Here’s how we deduce the correct object diagram:

Multiplicity between A and C is "1..2", which means that for each instance of A there must be one or two links to instances of C.

Multiplicity between B and C is "0..2", which means that for each instance of B there are zero, one, or two links to instances of C.

Multiplicity between A and B is "0..1", which indicates that for each instance of A there can be zero or one link to an instance of B.

With these rules, we analyze the object diagrams:

Option Ahas one instance of A linked to two instances of C, which is correct according to the "1..2" multiplicity. However, there are two instances of B (b1 and b2) each linked to a single instance of C (c1), which violates the "0..2" multiplicity rule because it implies there should be two links from c1 to the B instances (b1 and b2) but instead, there are two separate links to the same instance of C (c1), which is not allowed.

Option Bhas similar issues where two instances of A (a2 and a1) are linked to a single instance of C, which violates the "1..2" multiplicity rule.

Option Cshows each instance of A and B linked to their own separate instances of C. This violates the "1..2" multiplicity between A and C since there is only one link from A to C and does not show the possibility of two links which the multiplicity "1..2" would allow.

Option Dshows a single instance of A linked to two instances of C (c1 and c2), which satisfies the "1..2" multiplicity. Additionally, there is a single instance of B linked to one of the instances of C (c1), satisfying the "0..2" multiplicity. The A instance has no direct link to the B instance, which is allowed because the "0..1" multiplicity permits zero links between instances of A and B.

Based on this analysis, the only object diagram that satisfies all the multiplicity constraints of the class diagram isOption D.

The verification of the answer can be cross-checked with the UML 2 Foundation documentation, specifically in the section dealing with object diagrams and their correlation with class diagrams, which will confirm that object diagrams represent instances of classes and must comply with the multiplicities defined in the class diagram they are derived from. Multiplicity notation and interpretation are fundamental concepts in UML and are well documented in the UML specification by the Object Management Group (OMG).

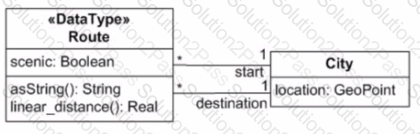

The provided diagram depicts aDataTypenamed Route with operations, attributes, and associations to aClassnamed City. In UML, aDataTypeis a type of classifier that specifiesthe values that do not have identity (i.e., are not distinguishable from other objects).DataTypesmay contain Attributes and Operations, so options B and C are incorrect.

However,DataTypesshould not have associations toClassesbecauseDataTypesare meant to be value types without identity, and associations typically imply a relationship between instances (which have identity). Thus, the presence of associations from Route to City is not consistent with the definition of aDataType.

References:

UML 2.x Superstructure Specification: Sections on Classifiers and DataTypes provide definitions of what constitutes aDataTypeand what features they can have. They specifically mention thatDataTypesare kinds of classifiers that do not have identity and are often used to type attributes.

UML 2.x Infrastructure Specification: This foundational document gives additional context on the semantics of different types of classifiers, includingDataTypes, and how they relate to other elements in a UML model.

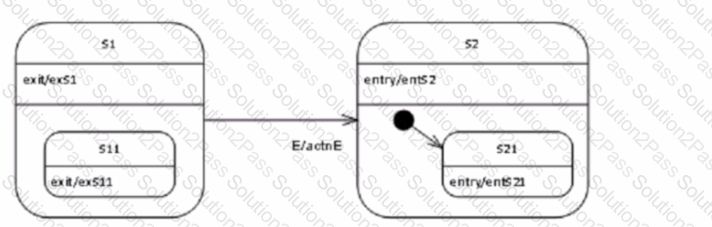

The image depicts a state machine with the following states:

S1

S11

S2

S21

The state machine transitions are labeled as follows:

gxSH - This triggers the transition from the initial state to S1.

E - This event triggers the transition from S11 to S21.

exS1 - This signifies exiting state S1.

exS11 - This signifies exiting state S11.

entS2 - This signifies entering state S2.

entS21 - This signifies entering state S21.

actnE - This indicates an action associated with the E event.

Given the state machine is currently in state S11 and an event of type E occurs, here's the sequence of behavior executions:

actnE: The action associated with event E is executed.

exS11: The state machine exits state S11.

exS1: Since S11 is nested within S1, exiting S11 also implicitly triggers exiting S1.

entS2: The state machine enters state S2.

entS21: The state machine enters the nested state S21.

Justification for excluding other options:

Option A (actnE; exS1; exS11: entS21; entS2) has the order of entering S2 and S21 reversed.

Option C (exS11; actnE; entS2) omits the execution of the action associated with event E.

Option D (gxSH; exS1; actnE; entS2) includes the irrelevant initial transition trigger (gxSH).

Option E (exS11; exS1; actnE; entS2; entS21) has an extra exiting of state S1, which is not part of the valid transition path.

Following the state transitions and action triggers depicted in the state machine diagram, option B accurately reflects the sequence of behaviors that occur when event E triggers a transition from state S11.

In UML, an initial node is the starting point of an activity thread and represents the start of the flow in an activity diagram. According to the UML 2.5.1 specification, an initial node has no incoming edges and precisely one outgoing edge1. This means that onlyone activity can feed an initial node at the beginning of an activity thread, which aligns with option C.

The initial node is depicted as a filled circle and is used to show where the control starts within the activity. When the activity is invoked, control tokens are placed on the initial node and can then traverse the outgoing edge to the first action or activity node. The specification clearly states that there should be only one outgoing edge, ensuring that the flow of control is unambiguous at the start of the activity.

For further details and verification, you can refer to the UML 2.5.1 specification, particularly Chapter 15.7, which covers the Activity, ActivityFinalNode, InitialNode, and other related elements2. Additionally, the Object Management Group (OMG) provides resources and guidelines for the UML exams, including the types of questions that may appear and the knowledge areas covered3.

It’s important to note that while multiple initial nodes can exist within a single activity diagram, each initial node can only be the source of one outgoing edge, and thus, only one activity can feed each initial node.

DataTypes in UML are a type of classifier that represents a set of values that do not have identity, which means that two instances of a DataType are indistinguishable if all their attributes are equal. This is in contrast to instances of Classes, which are distinguishable by their identity - each instance is considered unique even if their attributes have the same values.

Option A is incorrect because DataTypes can indeed have operations in UML. Option B is also incorrect; DataTypes can have attributes of any complexity. Option D is incorrect because DataTypes can also have features inherited from their super DataTypes; it is not solely about instantiation.

The UML 2.5 specification discusses DataTypes in section 10.5.8, stating that DataTypes do not have an identity and are often used to type attributes and operation parameters. The equality of DataType instances is based on the equality of their attribute values. Classes, however, are described in section 9.2 of the UML 2.5 specification as elements that can have identity, and instances of a Class are distinguished based on that identity.

The correct answer is Option B based on its visual representation and alignment with the given scenario:

Class Start Condition: Both diagrams (Option B and Option C) include a decision diamond labeled "10 Students Present?". This captures the condition for the class to start.

Professor Arrival: Option B explicitly shows the arrival of the professor using an action rectangle labeled "Professor Arrives". This directly addresses the second part of the scenario where the professor's presence is required.

Start Activity: Both Option B and C have a subsequent activity labeled "Start Class".

Why Option B is More Accurate:

While both Option B and Option C depict the 10 student condition, Option B goes a step further by including the professor's arrival as a separate action, making it a more precise representation of the two-part requirement for the class to start.

Other Options Analysis:

Option A: This diagram lacks the "10 Students Present?" condition and the professor's arrival, making it unsuitable for the given scenario.

Option D: This diagram entirely misses the concept of students or the professor, focusing on a different situation.

References

UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams, Decisions, and Actions https://www.omg.org/spec/UML/2.5.1/

In UML, basic types like byte, short, and long are represented as DataType elements. These are typically used to specify the types of attributes, parameters, or return values of operations in a model. Option A shows three separate classes named Byte, Short, and Long, which would represent these as distinct data types within the UML model.

Option B incorrectly uses stereotypes on objects, which is not the correct UML representation for data types. Option C shows a class with attributes of different types, but it does not define these types as basic types. Option D is incorrect because it uses stereotypes on DataType elements, which is not the standard way to represent basic types in UML.

According to the UML 2.5 specification, DataTypes are a kind of classifier that specifies a domain of values without identity (section 10.5.8). DataTypes are not classes; they do not have operations and cannot have instances that maintain an identity.

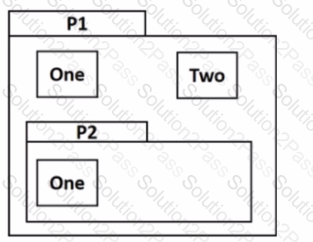

In UML, when you need to reference an element from another package while inside a different package, you use the qualified name. A qualified name includes the package name followed by two colons and then the element name. This ensures that the reference is clear and unambiguous, especially when different packages may have elements with the same name.

The correct syntax for referring to elementOneof PackageP1from inside PackageP2isP1::One, where::is the scope resolution operator used to separate the package name from the element name.

Therefore, the correct answer is:

D. P1::One

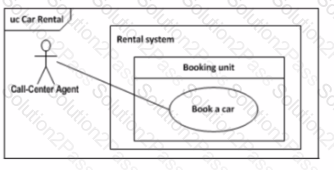

In the context of UML Use Case diagrams, the "owner" of a use case is the system or unit that provides the services of the use case. The use case "Book a car" is contained within the "Rental system" boundary, which is represented as a rectangle in the diagram. This indicates that "Book a car" is a function or service provided by the "Rental system."

The "Call-Center Agent" is an actor that interacts with the use case, but it does not own it. The "Car Rental" seems to be a higher-level packaging element (like a system name), but it is not the immediate container of the use case. The "Booking unit" is a part of the "Rental system" that is specifically responsible for the "Book a car" functionality, but in terms of UML semantics, the use case is owned by the system that contains it, which in this case is the "Rental system."

Therefore, the correct answer is:

C. Rental system

The correct answer is E. 5. Based on the image you provided, the diagram depicts the following sequence of steps involved in creating an order:

Create Order: This signifies the initiation of the order process.

Fill Order Request: This step likely involves gathering information or processing details about the order.

Create Invoice: An invoice is typically generated after an order is finalized.

Notify Customer: The customer is informed about the order, possibly confirmation or receipt.

The key here is that the process starts with creating the order (step 1) and ends with notifying the customer (step 4). Steps 2 and 3 (filling the order request and creating an invoice) can happen concurrently and don't necessarily follow a specific order in relation to each other.

Therefore, following the logic of the sequence, there are five steps (0-based indexing), making E. 5 the most suitable answer.

In the development of a domain model, the prime responsibility for decision-making should ideally rest with the users, as they are the ones who will be using the system operationally. Users have the most direct and frequent interactions with the system, making them best positioned to provide relevant insights into what the system should do and how it should behave to meet their needs effectively. While other stakeholders such as customers, project managers, and developers play significant roles, the users’ intimate knowledge of the domain processes and their requirements make them key contributors to ensuring that the domain model aligns closely with real-world application and utility.

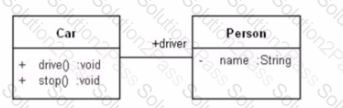

In UML, the features of a class are the combined set of attributes (properties) and operations (methods) that are defined for that class. A feature is a characteristic that classifiers (like classes) can possess. In the context of UML, operations are considered behavioral features, while attributes are considered structural features.

Let's analyze the given options in the context of the Car class:

A. "drive()" is an operation (method) of the Car class, but "Car" itself is the name of the class, not a feature.

B. "stop()" is an operation of the Car class, but "driver" is a role name for an association, not a feature of the Car class.

C. "name" is an attribute of the Person class, not the Car class. "stop()" is indeed an operation of the Car class.

D. "drive()" and "stop()" are operations of the Car class. "Person" is not a feature of the Car class, but no attributes of the Car class are shown in the diagram, and since features include both operations and attributes, the correct answer from the available options isD. It is understood that operations of a class are features, so the answer includes both operations of the Car class: "drive()" and "stop()".

According to the UML 2 Foundation specification, both structural features (attributes) and behavioral features (operations) are considered features of a class, so the correct answer would be the operations "drive()" and "stop()" since those are the only features explicitly represented in the Car class in the diagram.
