830-01 Riverbed RCPE Certified Professional WAN Optimization Free Practice Exam Questions (2025 Updated)

Prepare effectively for your Riverbed 830-01 RCPE Certified Professional WAN Optimization certification with our extensive collection of free, high-quality practice questions. Each question is designed to mirror the actual exam format and objectives, complete with comprehensive answers and detailed explanations. Our materials are regularly updated for 2025, ensuring you have the most current resources to build confidence and succeed on your first attempt.

Riverbed 830-01 Premium Access     Download Demo
Page: 1 / 6
Total 402 questions

In the exhibit,

there is a resident firewall inside the WAN cloud that drops packets with any TCP option. The customer allows you to use fixed-target rules instead. The firewall policy can only allow unassigned ports 7750-7751 to pass-through it. Additionally, the SH3 has been configured with service port 7750, while SH4 has been configured with service port 7751. Which of the following fixed-target rule specification is correct?

A.

The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7800. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7800.

B.

The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7810. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7810.

C.

The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7750. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7750.

D.

The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7751. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7750.

E.

The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7750. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7751.

Select the command needed to add support for virtual in-path to your Steelhead appliance so that you can use WCCP or PBR with a Steelhead appliance.

A.

in-path inpath0_0 enable

B.

in-path oop enable

C.

ip virtual enable

D.

in-path virtual enable

E.

in-path wccp_pbr enable

WCCP uses bits to create and distribute buckets. Using HASH assignment, what are the maximum number of bits used?

A.

4

B.

7

C.

8

D.

32

E.

256

When using Correct Addressing, what is the out-of-band (OOB) splice connection described as?

A.

A virtual connection contained within one of the inner-connections which corresponds to a client-server connection

B.

A separate connection between the Primary IP addresses of the client and server Steelhead appliances

C.

A separate inner-connection between two Steelhead appliances not directly related to any one of the user inner connections

D.

No such construct exists

Place the following commands to upgrade a Steelhead appliance from the CLI in the correct order. (NotE. include only the necessary steps)

1) SH (config) image install image.img 2

2) SH (config) image fetch http://server/path/image.img

3) SH (config) boot system 2

4) SH (config) restart clean

5) SH (config) reload

6) SH (config) write memory

A.

1, 2, 3, 4, 5, 6

B.

2, 3, 5, 1, 6

C.

1, 2, 5, 4

D.

2, 1, 3, 6, 5

E.

1, 2, 3, 6, 5

A server-side logical in-path deployment is shown in the exhibit. Additionally, SH12 is configured with a fixed-target rule pointing to SH11. The client behind SH12 will not be able to establish a connection to SERVER1 as a logical loop will occur when the number of optimized connections in SH11 has reached the maximum system limit.

What is the best way to resolve this issue?

A.

Use the largest Steelhead appliance model

B.

Enter the “in-path loopguard enable” command

C.

Use more than one Steelhead appliance

D.

Limit the number of TCP connections to be optimized

E.

Put SERVER1 in a different subnet from SH11

Which of the following statements are true about server-side out-of-path deployments? (Select 4)

A.

They require no routing changes

B.

They require the use of WCCP or PBR for traffic redirection

C.

They hide the original client IP address from the server

D.

They require the use of a fixed-target rule on the client-side Steelhead appliance

E.

They require the use of either physical in-path or virtual in-path on the client-side Steelhead appliance

What probe is being used in the inner channel between two Steelhead appliances when using Full Transparency in hex?

A.

0x4e

B.

0x4d

C.

0x4c

D.

0x4b

E.

No probe is used

How do you clean the datastore on a Steelhead appliance?

1) > restart empty

2) > reload clean

3) # restart empty

4) # restart clean

5) (config) # reload clean

A.

1, 2

B.

2, 3

C.

4, 5

D.

3, 4, 5

E.

1, 2, 3, 4, 5

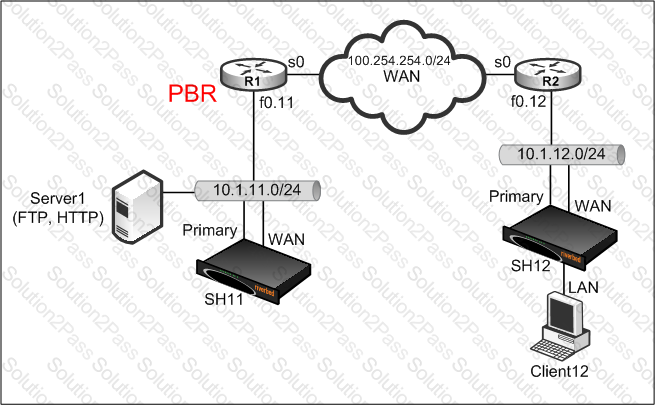

You choose to deploy a Steelhead appliance logically in-path using policy-based routing (PBR) as the traffic redirection method. Additionally, you want to mark the Type of Service (ToS) value for active FTP as AF21 using route-maps. Which route-map specified Type of Service (ToS) value is correct? (Hint: Use the calculator)

A.

EF21

B.

0x48

C.

0x58

D.

0xb8

E.

18

In a WCCP configuration, during a packet trace, you notice the return WCCP communication on a CAT 6500 is using GRE. The Steelhead appliance is directly connected to it. What can be done to alleviate the router's CPU? (Select 2)

A.

Force L2 return

B.

Use PBR

C.

Use peering rules to avoid using GRE altogether

D.

Use NBAR to redirect

E.

Nothing can be done to force traffic as a different return

When enabling WCCP v2 support, what does a multicast TTL value of 1 imply?

A.

This enables WCCP v2 support

B.

The Steelhead appliance uses a multicast scope of 1 hop

C.

This enables WCCP multicast

D.

This enables WCCP unicast

What steps take place during an upgrade process?

A.

The new software image will be loaded into the Backup partition; a reboot will be necessary to have the Steelhead appliance switch to the newer software

B.

The new software image will be loaded into the Booted partition; a reboot will be necessary to have the Steelhead appliance switch to the newer software

C.

The new software image will be loaded into the Backup partition; a restart will be necessary to have the Steelhead appliance switch to the newer software

D.

The new software image will be loaded into the Booted partition; a restart will be necessary to have the Steelhead appliance switch to the newer software

E.

The new software image will be loaded into the Backup partition; a configuration save will be necessary to have the Steelhead appliance switch to the newer software

A single client-server TCP connection is made through two Steelhead appliances (default in-path deployment). This is a lab-controlled environment and no other client-server connections are made. How many TCP connections will exist between the in-path interfaces of both Steelhead appliances after the user connection is fully established?

A.

1

B.

20

C.

22

D.

42

What is the default Connection Forwarding keep alive interval?

A.

1 second

B.

3 seconds

C.

5 seconds

D.

10 seconds

E.

15 seconds

When deploying failover Interceptors, all in-path interfaces must:

A.

be deployed on different physical links.

B.

be deployed on 802.1Q trunks.

C.

be deployed on all the same physical links.

D.

be deployed separately.

Simplified routing learns to associate MAC addresses to IP addresses by: (Select 2)

A.

Tracking destination IP addresses and matching them to the correct MAC address

B.

Tracking source IP addresses and matching them to the correct MAC address

C.

Tracking ARP requests sent by surrounding routers

D.

Tracking ARP requests sent by surrounding switches

When using Correct Addressing, without Enhanced Auto-discovery (EAD), what is the size of the probe response in the return SYN/ACK packet from the server-side Steelhead appliance?

A.

4 bytes

B.

10 bytes

C.

14 bytes

D.

18 bytes

E.

32 bytes

In the exhibit,

which interfaces should the WCCP router R1 listen to for multicast communication with the server-side Steelhead appliances, assuming the multicast address is 239.0.0.1? (Select 2)

A.

A

B.

B

C.

C

D.

D

E.

E

In the Interceptor appliance version 3.0 and later the command to enable cluster failover is:

A.

failover-peer enable.

B.

Interceptor appliance communication allow-failure enable.

C.

Interceptor appliance failover enable.

D.

Enable interceptor appliance peer failover.
