220-1101 CompTIA A+ Certification Exam: Core 1 Free Practice Exam Questions (2025 Updated)

Data throttling, often implemented by network providers to manage bandwidth usage, can slow data speeds after a certain usage limit is reached. Turning off wireless would prevent uploads, while roaming and 5G status primarily affect connectivity rather than speed throttling. CompTIA A+ Core 1 objectives cover connectivity troubleshooting for mobile devices, including factors impacting network speed and performance.

When a laptop screen is not displaying on a conference room TV despite being connected to a wireless HDMI dongle, the issue is often related to the TV being set to the wrong input source. Since the in-room computer's desktop is displayed, it suggests the TV is currently set to the input source used by the in-room computer. Changing the TV's input source to the one associated with the wireless HDMI dongle connected to the user's laptop is the simplest and most direct approach to resolve the issue. This does not involve adjusting network settings or hardware configurations but rather selecting the correct input source through the TV's input selection menu.

When print jobs remain stuck in the printer queue despite successful network communication (indicated by successful ping replies) and no issues with paper supply or toner levels, a common reason can be that the first job in the queue requires manual intervention, such as paper to be fed into a manual feed tray. Printers often pause the entire print queue if the first job requires a specific type of paper or manual insertion that hasn't been addressed, preventing subsequent jobs from processing.

Older motherboards use 20-pin connectors, while newer power supplies use 24-pin connectors. An adapter resolves the compatibility issue cost-effectively.

Why Not A (Adjust the input voltage): Input voltage adjustment is unrelated to connector compatibility.

Why Not B (Install a modular power supply): While modular supplies are versatile, this doesn’t address the connector issue directly.

Why Not C (Rebuild the failed power supply): Rebuilding is costly and complex compared to using an adapter.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.4, power supply compatibility​.

Secure print is the best option to address the concern of printing confidential documents on a shared enterprise multifunction printer (MFP). Secure print requires users to enter a PIN or use an ID card at the printer to release their print jobs. This ensures that documents are only printed when the user is physically present to collect them, preventing sensitive information from being left unattended or viewed by unauthorized individuals.

While a central printer server, audit logs, and Wi-Fi direct printing have their own benefits, they do not provide the same level of immediate security for confidential documents as secure print does. A central printer server centralizes management but does not prevent unauthorized viewing. Audit logs provide a record of activity but do not prevent the initial security breach. Wi-Fi direct printing allows for a direct connection to the printer but does not secure the document during printing.

A USB-C cable is the best option for installing an RS-232 serial signature pad to an ultralightweight laptop. USB-C is a universal connector that supports various protocols and devices, including serial devices. A port replicator is a device that expands the connectivity options of a laptop by providing additional ports. Wi-Fi Direct is a wireless technology that allows devices to connect directly without a router or access point. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB.

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple disks into a logical unit to improve performance, reliability, or both. There are different types of RAID levels that use different methods of data distribution and redundancy.

RAID 0 is a level that stripes data across multiple disks without any redundancy. It offers the highest performance but no fault tolerance. If any disk fails, the entire array is lost.

RAID 1 is a level that mirrors data across two disks. It offers the lowest performance but the highest fault tolerance. It can survive the failure of one disk.

RAID 5 is a level that stripes data across multiple disks with parity information. It offers a balance between performance and fault tolerance. It can survive the failure of one disk, but not two or more disks.

RAID 10 is a level that combines RAID 1 and RAID 0. It creates a striped array of mirrored pairs. It offers high performance and high fault tolerance. It can survive the failure of one disk in each pair, or multiple disks in different pairs.

Therefore, if the server administrator wants to rebuild the array to withstand a potential multidrive failure in the future, RAID 10 is the most likely choice.

The most likely reason for a computer showing an APIPA address after being plugged into a network port is that the PC is unable to contact a DHCP server1. Automatic Private IP Addressing (APIPA) is a DHCP fail-safe that protects a computer system from failure. It invokes a standby mechanism for local Internet Protocol version 4 (IPv4) networks supported by Microsoft Windows. With APIPA, DHCP clients can obtain IP addresses even when DHCP servers are not functional1. The other options are less likely to be the cause of the issue1.

A hypervisor is a software layer that manages and allocates resources for virtual machines (VMs) on a physical host machine. A technician can use a hypervisor to adjust the resource allocation for a virtual workstation, such as increasing the amount of RAM assigned to it from the available pool of memory on the host machine. This can improve the performance and functionality of the virtual workstation without requiring any hardware changes or modifications. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 59)

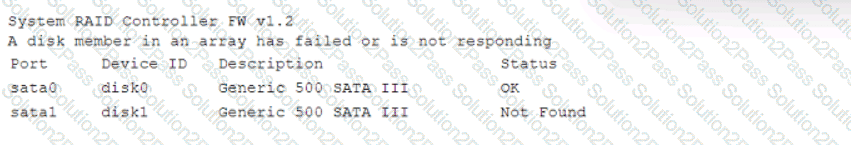

Since the RAID card does not support hot swapping, the technician needs to shut down the server and check the RAID controller’s status to verify RAID health. S.M.A.R.T. is a feature of hard drives, not RAID cards. Replacing the failed drive while users are connected could cause data loss or corruption. Physically cleaning the HDDs and connectors is unlikely to solve the slow boot time and performance issues.

A multipage misfeed is when more than one sheet of paper feeds into the printer at once, causing paper jams or misprints. A multipage misfeed can be caused by low paper supply or wrinkled paper in the tray, as reported by the user in this case. High latency is not related to paper jams, but to network delays or slow performance. Page orientation refers to whether the page is printed in portrait or landscape mode, which does not affect paper jams either. Driver mismatch could cause printing errors or compatibility issues, but not paper jams.

When installing RAM into a server that will be used as a VM host, it is recommended to install ECC (Error-Correcting Code) RAM to help prevent errors that can cause virtual machines to crash. References: https://www.servermonkey.com/blog/ecc-vs-non-ecc-ram-what-are-the-differences.html

When installing RAM into a rackmount server that will be used as a VM host, it would be best to install ECC (Error Correcting Code) RAM which can detect and correct common types of data corruption.

To increase the volume on a laptop using only a keyboard, a user can press and hold down the Fn key while pressing one of the function keys (usually F1-F12) that has an icon representing volume up.

A loopback plug is a device that can be used to test the functionality of a network interface card (NIC) by sending and receiving data packets from itself. The loopback plug connects to the NIC’s port and simulates a network connection without requiring another device or cable. The technician can use a loopback plug to verify that the NIC is able to transmit and receive data without errors or interruptions.

The frequency bands that 802.11b and 802.11g operate in are 2.4GHz bands, which allow for longer range but lower speed than higher frequency bands such as 5GHz or 6GHz bands used by newer standards such as 802.11a/n/ac/ax.

 M2PCIeNVMeSSD. M.2 PCIe NVMe SSDs are the fastest internal storage devices available for desktops. They are faster than SATA SSDs and PCIe SATA HDDs12.

Automatic document feeder (ADF) is a feature that allows a multifunction printer to photocopy documents with hundreds of pages automatically without requiring manual intervention. ADF scans multiple pages from a stack of documents and feeds them into the printer one by one. SMB is a network protocol that allows file sharing and printer access among different devices on a network. PCL is a printer language that controls how data is formatted for printing. SSH is a network protocol that allows secure remote access to another device over an encrypted connection.

The correct answer is B. Use the Function key.

The explanation is that some laptops have a Function key (Fn) that can be used to toggle the track pad on or off. This can be useful if the user wants to use an external mouse instead of the track pad, or if the track pad is accidentally activated by palm movements. The user should look for a Fn key on their keyboard and a track pad icon on one of the other keys, such as F5 or F9, and press them together to enable or disable the track pad.

TPM stands for Trusted Platform Module, which is a hardware component that securely stores encryption keys and other sensitive data12. TPM can be used to enable hard drive encryption, which is a technology that encrypts the data stored on a hard drive using sophisticated mathematical functions34. Hard drive encryption protects the data from unauthorized access in case the hard drive is lost, stolen, or tampered with.

Enabling the audio device is the correct action to correct an audio issue where a laptop does not have any audio output from the built-in speakers and Windows Device Manager shows a down arrow for the audio device. A down arrow indicates that the audio device is disabled and needs to be enabled by right-clicking on it and selecting Enable device. Replacing the speakers, increasing the volume, or updating the driver are unlikely to solve the issue if the audio device is disabled.

This is because HDMI (High-Definition Multimedia Interface) is a digital video cable that can also carry audio signals1. HDMI cables are commonly used to connect devices like Blu-ray players, game consoles, and streaming boxes to HDTVs and monitors. The other options are not capable of carrying audio signals. VGA (Video Graphics Array) is an analog video cable that only carries RGBHV signals12. S-Video (Super Video) is another analog video cable that carries separate luminance and chrominance signals1. DVI (Digital Visual Interface) is a digital video cable that can carry either analog or digital signals, but not audio1.

According to the Official CompTIA A+ Core 1 Study Guide (220-1101) 1, the correct answer is A. Document the findings, actions, and solution in the company knowledge base.

The explanation is that after resolving an issue, a technician should always document what was done and how it was fixed. This helps to create a record of the problem and its solution for future reference and also to share knowledge with other technicians.

https://www.comptia.org/training/books/a-core-1-220-1101-study-guide

By documenting the findings, actions, and solution in the company knowledge base, it will help to ensure that if the Issue happens again, the technician or a different technician will be able to quickly and easily find the solution and resolve the Issue. Additionally, it is important to document the solution so that the same Issue does not need to be troubleshot multiple times in the future.

Host-only mode is a network option that isolates a client-side virtual machine from the rest of the network. It allows the virtual machine to communicate only with the host machine and other virtual machines on the same host. NAT mode allows the virtual machine to share the host’s IP address and access the network through it. Bridge mode allows the virtual machine to have its own IP address and connect directly to the network. Direct mode is not a valid network option for virtual machines.

A patch panel is a mounted hardware unit containing ports used to manage cable connections. The individual pairs of a Cat 6 cable are terminated on the patch panel, which then provides a central location for cable management and organization. The patch panel is then connected to the switch using a patch cable.

A damaged battery can cause a laptop to overheat and swell, making it unable to sit level on the workspace. A swollen battery can also pose a fire hazard and damage other components of the laptop, such as the motherboard or keyboard. The technician should replace the battery as soon as possible and dispose of it properly according to local regulations. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 25)

One of the possible causes of random and incorrect characters appearing on print jobs sent to a laser printer is an outdated or corrupted driver. The driver is a software component that communicates between the operating system and the printer, and converts data into a format that the printer can understand. If the driver is outdated or corrupted, it may send incorrect or garbled data to the printer, resulting in poor print quality or errors. The technician should update the driver to the latest version from the manufacturer’s website, or uninstall and reinstall it if necessary. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 47)

A digitizer is a component that handles touch-screen operation on a mobile device. It is a layer of material that detects and converts the touch of a finger or a stylus into an electrical signal that can be processed by the device12. A digitizer works with a display screen to create a touch-screen interface that allows a user to interact with the device by touching pictures or words on the screen.

A private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network. A private cloud can offer more security and control than other cloud models, as well as customized infrastructure that suits the organization’s needs. A bank would most likely choose a private cloud model to leverage cloud computing while maintaining isolation from other businesses. A public cloud is a cloud computing model that provides services and resources to anyone over the internet. A hybrid cloud is a combination of public and private cloud services that share data and resources.

According to the Official CompTIA A+ Core 1 Study Guide (220-1101) 1, the correct answer is A. Document the findings, actions, and solution in the company knowledge base.

The explanation is that after resolving an issue, a technician should always document what was done and how it was fixed. This helps to create a record of the problem and its solution for future reference and also to share knowledge with other technicians.

https://www.comptia.org/training/books/a-core-1-220-1101-study-guide

By documenting the findings, actions, and solution in the company knowledge base, it will help to ensure that if the Issue happens again, the technician or a different technician will be able to quickly and easily find the solution and resolve the Issue. Additionally, it is important to document the solution so that the same Issue does not need to be troubleshot multiple times in the future.

The message prompting to press "OK" indicates that the printer is waiting for a user input. This suggests that there is some issue with the printer settings, and the most probable cause is that the default paper type has been changed, and the printer needs the user to confirm the paper type before proceeding with the print job. This is a common issue that can occur when the default paper type is not set correctly or has been changed without the user's knowledge.

If paper gets stuck at the last stage of printing, the rollers responsible for moving the paper through the printer are likely worn out or dirty.

Why Not B (Tray assembly): The tray assembly manages paper loading, not feeding during the print process.

Why Not C (Toner): Toner is unrelated to paper jams.

Why Not D (Printhead): Printheads manage ink/toner distribution, not paper movement.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 4.6, printer troubleshooting​.

To clean sticking keys on a laptop keyboard, using compressed air is the most effective and safest method. Compressed air can dislodge and remove crumbs, dust, and other debris from under the keys without risking damage to the keyboard's electronic components or the keys themselves. This approach is non-invasive and widely recommended for keyboard maintenance.

Comprehensive and Detailed Step-by-Step Explanation:

To determine the correct device, we need to understand how a DOCSIS (Data Over Cable Service Interface Specification) network functions in a Small Office/Home Office (SOHO) environment:

C. Cable Modem:

A cable modem is required to convert the signal provided by the ISP (Internet Service Provider) over a DOCSIS network into a format that is usable by the local area network (LAN).

DOCSIS is a standard for high-speed internet over cable television infrastructure, and the cable modem acts as the gateway between the ISP's coaxial network and the LAN.

Without the cable modem, devices in the LAN would not be able to access the internet.

RAID 0 is a configuration that stripes data across multiple disks without parity or redundancy. It provides the fastest speed and maximum storage capacity among the RAID types listed, but it also has no fault tolerance. RAID 1 mirrors data across two disks, providing redundancy but halving the storage capacity. RAID 5 stripes data across three or more disks with parity, providing fault tolerance but reducing the storage capacity by one disk. RAID 10 combines mirroring and striping across four or more disks, providing both speed and redundancy but reducing the storage capacity by half.

Thunderbolt 3 is a USB-C port, so any device with a USB-C connector can be plugged into it. MiniUSB, microUSB and USB-A are not compatible with Thunderbolt 3.

NFC stands for near-field communication, which is a wireless technology that allows two devices to exchange data when they are in close proximity (usually within a few centimeters). NFC is commonly used by mobile devices to process payments at kiosks, such as Apple Pay or Google Pay. Wi-Fi 6 is a wireless standard that provides faster speed and lower latency than previous versions of Wi-Fi. Bluetooth is a wireless technology that allows devices to communicate over short distances (usually within 10 meters). RFID stands for radio-frequency identification, which is a wireless technology that uses radio waves to identify and track objects that have RFID tags attached to them
