220-1101 CompTIA A+ Certification Exam: Core 1 Free Practice Exam Questions (2025 Updated)

The 2. band is subdivided into up to 14 channels, spaced at 5 MHz intervals from 2412 MHz up to 2484 MHz. Wi-Fi requires bandwidth of approximately 20 MHz, not 5 MHz. Consequently, a site designer needs to choose the channels that do not overlap. On a WLAN where only the first 11 channels are available, channels 1, 6, and 11 can be selected as non-overlapping. Note: In the Americas, regulations permit the use of channels 1-11 only, while in Europe, channels 1-13 are permitted. In Japan, all 14 channels are permitted.

The phone's GPS may fail due to a loss of service from the carrier, which provides the phone with GPS location data. The fact that the in-car GPS continued to function suggests that the issue was related to the phone, not the GPS satellites. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 372

Electromagnetic interference (EMI) is unwanted noise or interference in an electrical path or circuit caused by an outside source. Hence shielded Cat 6 is better

If a technician determines that the root cause of sporadic network connectivity issues is EMI, the most cost-effective cable medium that can be used without sacrificing system performance is shielded Cat 6 cable. Shielded cables protect against electromagnetic interference (EMI) and radio frequency interference (RFI). References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 548)

If users are experiencing decreased bandwidth and connectivity issues in a Wi-Fi mesh network, the technician should use a Wi-Fi analyzer to determine whether the channel in use is overcrowded and to identify which channel the mesh network should use for best performance. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 308

Device interference is the most likely cause of the wireless connection dropping or becoming slow. Interference can come from other wireless devices, microwave ovens, or physical barriers like walls and metal objects. Hidden SSID, Ethernet port flapping, and high ISP latency are not likely to cause this issue.

Wireless interference from other devices can cause a drop in wireless connection speed and stability. In a small office environment, there may be several wireless devices competing for the same bandwidth, causing the issues described. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.7 Given a scenario, troubleshoot wired and wireless networks with appropriate tools

An administrator would use Infrastructure as a Service (IaaS) to migrate virtual machines from on-premises to the cloud. IaaS is a cloud computing service that provides virtualized computing resources, such as servers, storage, and networking, that can be used to deploy and run applications in the cloud. By using IaaS, an administrator can create a virtual machine in the cloud and migrate the existing virtual machine from on-premises to the cloud. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.3

The most likely action that would resolve the issue is to clean the keyboard. Sometimes dust, hair, and other debris can affect keyboard functionality. The technician can try to clean the keyboard as much as possible, which may be enough to get the keyboard back in working order

The technician should check the MAC filtering list next as the new router may have a different MAC address than the old router. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 332

To fix a Cat 5 cable issue where the cable fails when it is moved around, the technician would need to use an RJ45 connector (option E) and a crimper (option F). The technician can use the crimper to attach a new RJ45 connector to the end of the cable, which should resolve the issue.

An RJ45 connector (option E) is a type of connector commonly used for Ethernet networking. It is an 8-position, 8-contact (8P8C) modular plug and jack that is used to terminate Cat 5 and other types of twisted pair cables. A crimper (option F) is a tool used to attach connectors to the ends of cables. In this case, the technician would use the crimper to attach a new RJ45 connector to the end of the Cat 5 cable.

When a cable fails when it is moved around, it often indicates that there is a problem with the connector at the end of the cable. By attaching a new RJ45 connector using a crimper, the technician can ensure that the cable has a secure and reliable connection.

The black smudges over the entire image on a printed receipt are most likely caused by a jammed ribbon that is rubbing on the paper. The solution is to clear the bad ribbon and feed it through the printer properly. Ribbon jams can be caused by various issues, such as incorrect installation or a damaged ribbon. References: CompTIA A+ Certification Exam Objectives - 220-1001: 4.5 Given a scenario, troubleshoot common printer problems.

The digitizer is the component that enables input on a mobile device's touch screen. It is a transparent layer that sits over the screen and detects the location of touch inputs. OLED (Organic Light Emitting Diode) is a type of display technology. Inverter is a component used in older LCD displays to provide power to the backlight. CMOS (Complementary Metal-Oxide-Semiconductor) sensor is a type of image sensor used in digital cameras and smartphones to capture images. References: CompTIA A+ Certification Exam: Core 1 - Page 177

Based on the information provided in the scenario, the most likely cause of the issue is that the user’s internet connection is down (option A). This would explain why the user is unable to access any of the organization’s servers or network items and why web pages are not functioning. However, since the user can still access local file folders and other local machines, it suggests that their local network is still functioning.

The user can access local file folders and other local machines but none of the organization's servers or network items, indicating that the issue is with the user's internet connection, not with the user's domain account, switch, or IP address.

When a user receives a notification indicating that there is limited or no connectivity, it means that their device is unable to establish a connection to the network. In this scenario, the user can access local file folders and other local machines but is unable to access any of the organization’s servers or network items and web pages are not functioning. This suggests that the issue is with the user’s internet connection.

An internet connection allows a device to communicate with other devices and servers outside of its local network. If the internet connection is down or not functioning properly, the device will be unable to access any resources outside of its local network. This would explain why the user in this scenario can still access local resources but is unable to access any of the organization’s servers or network items.

The issue described in the question is most likely due to an incorrect configuration of the printer's duplex settings. To enable automatic duplex printing, the technician needs to read the printer's installation manual to understand how to configure the printer's duplex settings correctly. Once the settings are configured, the printer should be able to print on both sides of the paper automatically.

To fix the issue of a newly installed printer capable of automatically printing on both sides of the paper but only printing on both sides manually, the technician should read the installation manual and configure duplex settings. Duplex printing settings can be configured in the printer driver software, which can be accessed through the printer settings in the Control Panel. Installing the most recent firmware upgrade available for the printer, contacting the vendor for a hardware replacement, or reinstalling the printer software and drivers and restarting the printer will not resolve the issue.

Installing an M.2 SSD will improve a workstation's overall response time for frequently used applications and data without removing the current hard drive. M.2 drives are faster and more efficient than traditional hard drives, making them a good option for increasing overall performance. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 1.5 Given a scenario, configure storage devices and use appropriate media

In this situation, the MOST cost-effective cable medium that would not sacrifice system performance would be B. Shielded Cat 6. Electromagnetic interference (EMI) can disrupt network connectivity by interfering with the signals transmitted over network cables. Shielded Cat 6 cables are designed to provide protection against EMI by incorporating a layer of shielding material around the cable’s conductors. This shielding helps to prevent EMI from interfering with the signals transmitted over the cable.

The symptoms suggest that the charging cable falls out of the phone, indicating that the charge port may contain foreign objects such as lint, which can interfere with the connection between the charging cable and the phone.

An MX (Mail Exchange) record specifies the mail server responsible for receiving email for a domain.

Why Not A (CNAME): CNAME is used for domain aliasing, not for email delivery.

Why Not B (SRV): SRV records are used to locate specific services, not mail servers.

Why Not D (SOA): SOA records provide domain information but do not handle email.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, DNS record types​.

B. PAN (Personal Area Network):

A PAN is a network established between devices in close proximity, such as between a smartphone and a Bluetooth headset.

Bluetooth technology is specifically designed for short-range communication, making it a type of PAN.

Incorrect Options:

A. MAN (Metropolitan Area Network): A MAN covers a city or metropolitan area and is not relevant to Bluetooth connections.

C. SAN (Storage Area Network): A SAN is used for large-scale data storage, unrelated to Bluetooth connections.

D. WAN (Wide Area Network): A WAN spans large geographical areas (e.g., the internet) and is not relevant to this scenario.

Key Takeaway: Bluetooth connections, such as those between a headset and a device, create a Personal Area Network (PAN).

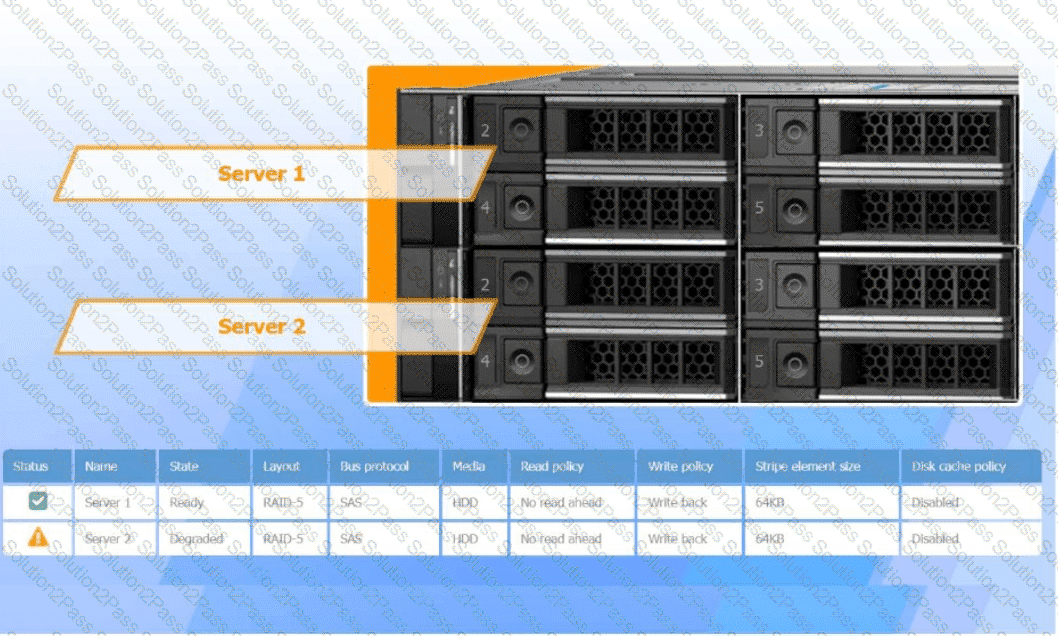

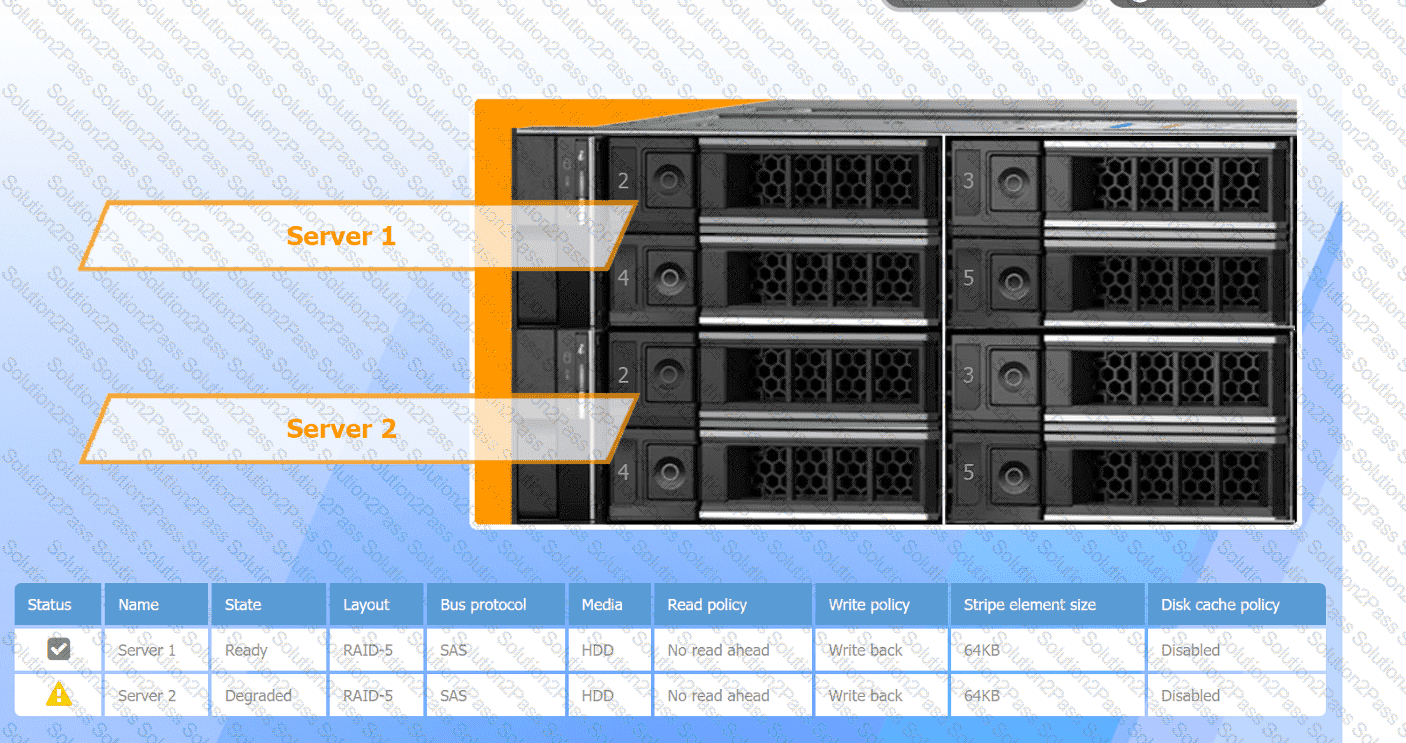

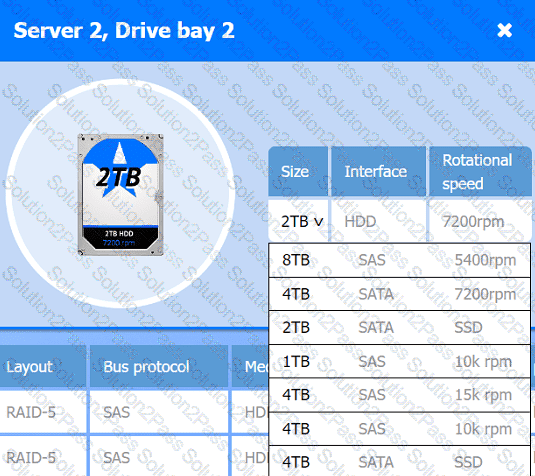

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

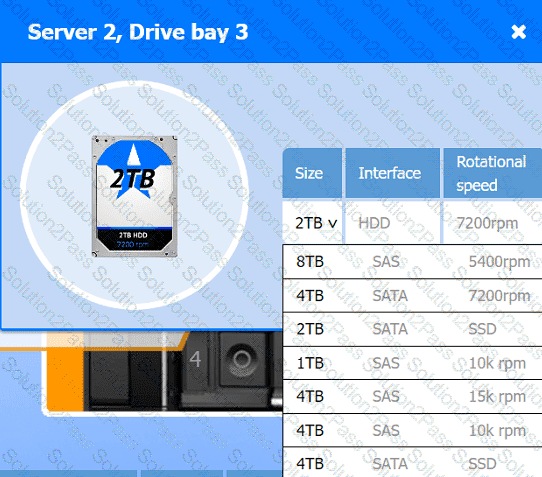

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

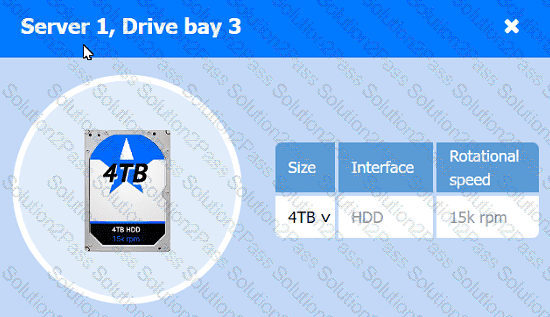

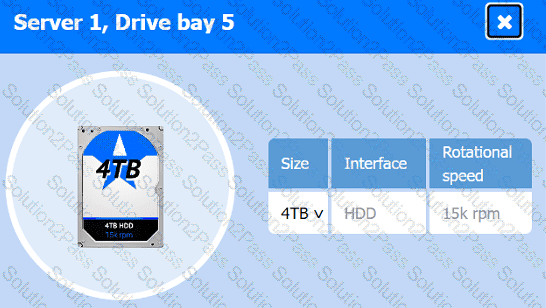

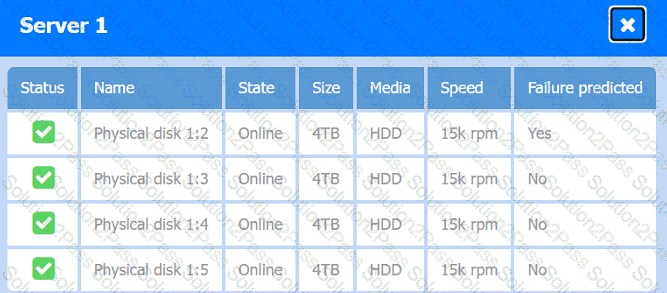

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A screenshot of a computer Description automatically generated

A screenshot of a computer Description automatically generated

Comprehensive and Detailed In-Depth Explanation:

High resource usage along with frequent pop-ups are strong signs of a malware infection. The next logical step is to update anti-malware definitions and run a full scan to detect and remove threats.

Option A: Network performance is likely not the root cause — local system behavior points to malware.

Option B: Drivers affect hardware functionality; they don’t resolve malware-related slowness.

Option D: DHCP issues usually cause IP conflicts or no network access, not CPU spikes or pop-ups.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.2: Given a scenario, detect, remove, and prevent malware using appropriate tools and methods.

For setting up a private network, the IP address range should be one that is reserved for private use. The range 172.16.0.0 to 172.31.255.255 falls within the set of IP addresses designated for private networks according to RFC 1918. This range is not routable on the public internet, making it ideal for a private network setup on a retail router.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

Multiple peripherals are non-functional, and the USB-C hub is a common point of failure.

Option Evaluation:

A. Verify the AC adapter voltage: Power issue could cause shutdowns, not device failure. Incorrect.

B. Repair the operating system: Not relevant since alternate devices are tested. Incorrect.

C. Replace the user's USB-C hub: Faulty hubs cause multiple peripheral failures. Correct.

D. Reinstall the drivers for affected devices: Driver issues wouldn’t affect all peripherals. Incorrect.

E. Make sure the printer is not drawing too much power: This is uncommon for peripherals via a hub. Incorrect.

When an external touch screen exhibits flickering without registering input on a presentation laptop, the first troubleshooting step should be to check the cables connecting the touch screen to the laptop. This includes ensuring that the cables are securely connected, undamaged, and are the correct type for transmitting both video and touch input data. Faulty, loose, or incorrect cabling can lead to issues like flickering and unregistered inputs.

Comprehensive and Detailed In-Depth Explanation:

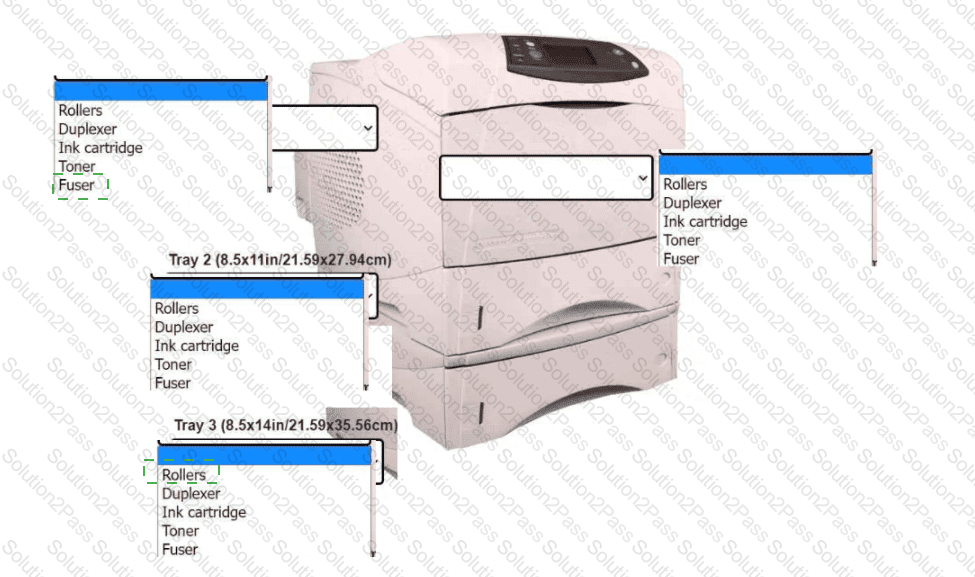

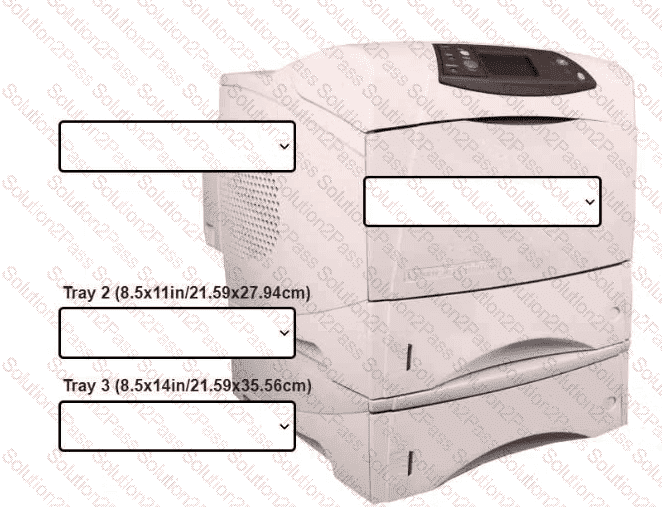

A maintenance kit for a laser printer often includes rollers, fuser, and other parts that wear out over time. If the printer is smudging and misfeeding, it's a sign that multiple components are failing, which a maintenance kit is designed to resolve.

Option A (Fuser): May cause smudging if it's not heating correctly, but it won’t resolve paper misfeeds alone.

Option C (Corona wire): Can cause poor image quality if dirty but doesn’t affect paper feeding.

Option D (Toner cartridge): Can cause streaks if defective, but not paper feed issues.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.4: Given a scenario, install and configure printers.

To make sure that the new operating system on the USB drive loads automatically, the user must configure the boot options in the BIOS/UEFI. Boot options determine the sequence of devices the computer will attempt to boot from when powered on. Setting the USB drive as the first boot option ensures that the system will load from the USB before trying other devices.

D. Boot options: The user should configure the boot sequence to prioritize the USB drive, so the system boots from it automatically.

Why the other options are incorrect:

A. BIOS password: A BIOS password is used to restrict access to the BIOS settings, not to control boot order.

B. Trusted Platform Module (TPM): TPM is a security feature used for cryptographic operations and securing hardware, not for controlling boot options.

C. USB permissions: This refers to access permissions for USB devices but does not affect booting from a USB drive.

This concept is part of the Hardware domain in the CompTIA A+ Core 1 exam, specifically regarding BIOS configuration​.

A significant increase in the number of reallocated sectors on a hard drive is a clear indication that the drive is experiencing physical damage or wear and tear that cannot be repaired through software means. Reallocated sectors are bad sectors that the drive's firmware has marked as unusable and moved data to spare sectors. This is often a precursor to drive failure. Therefore, the most prudent next step is to replace the hard drive to ensure data integrity and system reliability.

For network printing, the required ports are typically those used by printing protocols. Port 515 is used by the Line Printer Daemon (LPD) protocol, and port 631 is used by the Internet Printing Protocol (IPP). These ports need to be opened in the firewall to allow print jobs to be sent to and from network printers.

A loopback plug is used to test the functionality of network interface card (NIC) ports to ensure they can send and receive data. It is a diagnostic tool that loops back the signal to the device, allowing verification of the network port's operation. This aligns with CompTIA Core 1 objectives related to troubleshooting wired and wireless networks and verifying network connectivity​.

When configuring a router for a small business, the first setting a technician should configure is DHCP (Dynamic Host Configuration Protocol). DHCP is responsible for automatically assigning IP addresses to devices on the network, which is essential for enabling communication within the network. Without DHCP, devices would not receive the necessary IP configurations to communicate effectively.

A. DHCP: Configuring DHCP first ensures that all devices on the network receive their IP addresses automatically.

Why the other options are incorrect:

B. UPnP: UPnP (Universal Plug and Play) is used for simplifying device connectivity, but it is not a critical setting to configure first.

C. MAC filtering: MAC filtering is a security feature that limits which devices can connect to the network based on their MAC addresses, but it should be set up after basic network configuration.

D. VPN: VPN (Virtual Private Network) settings are for secure remote access, and should be configured after the essential network settings like DHCP are in place.

This topic falls under the Networking domain of the CompTIA A+ Core 1 exam​.

The first step in troubleshooting is to reproduce the issue. This ensures that the problem exists as reported, and the technician can observe it directly. In this case:

Testing the wireless speed on the user's laptop while connected to the new router allows the technician to verify the problem and gather evidence for further troubleshooting.

Reproducing the issue helps confirm whether the problem is with the laptop, the router configuration, or other network factors.

Key Concepts:

CompTIA Troubleshooting Steps:

Identify the Problem: Confirm and reproduce the issue as reported by the user.

Establish a theory of probable cause.

Test the theory to determine the cause.

Plan and implement the solution.

CompTIA A+ Exam Objectives References:

220-1101, Section 5.1: Details the best practices for troubleshooting, including starting with verifying the problem exists as reported​​.

Before creating a virtual machine (VM) on a computer, it's crucial to ensure that the CPU supports virtualization and that this feature is enabled in the BIOS (or UEFI) settings. While sufficient RAM and hard drive space are also important for running VMs effectively, and compatibility with the graphics card might be a consideration for VMs with intensive graphical requirements, the foundational step is to verify that the CPU supports virtualization and that this feature is activated in the BIOS settings. This is because virtualization technology, often referred to as VT-x (on Intel CPUs) or AMD-V (on AMD CPUs), is a prerequisite for running most virtualization software efficiently.

VGA (Video Graphics Array) is a legacy 15-pin connector used for transmitting analog video signals. VGA was commonly used to connect monitors to computers, but it has been largely replaced by more modern digital interfaces like DVI and HDMI.

C. VGA: A legacy 15-pin connector used for analog video signals.

Why the other options are incorrect:

A. DisplayPort: DisplayPort is a newer digital interface and does not use a 15-pin connector.

B. DVI: DVI (Digital Visual Interface) is a digital connector used for video signals but does not have 15 pins.

D. HDMI: HDMI is also a digital interface for audio and video, but it uses a different connector with no 15 pins.

This topic relates to the Hardware domain in the CompTIA A+ Core 1 exam​.

Comprehensive and Detailed In-Depth Explanation:

A modular power supply allows a technician to connect only the power cables that are needed, reducing clutter and improving airflow. This is ideal when aiming for a clean build with minimal visible internal cables.

Option A (SATA drive connections): Still require both power and data cables, adding to cable count.

Option B (Liquid cooling): May reduce some bulk from large air coolers, but adds tubing and still needs cabling.

Option D (Wireless NIC): Adds wireless capability but has no relation to internal cabling cleanliness.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.3: Given a scenario, apply the appropriate PC configuration.

To adjust the VLAN configuration, the technician needs to configure the switch. VLANs are configured on switches to segment network traffic logically, even if the devices are connected to the same physical network. By adjusting the VLAN settings on the switch, the technician can ensure that the sales department has access to the marketing department's network resources.

C. Switch: VLANs are configured on switches to logically separate or combine network segments.

Why the other options are incorrect:

A. Network card: A network card is a hardware component that connects a device to a network, but it does not configure VLANs.

B. Patch panel: A patch panel is used to organize and manage network cables but does not play a role in VLAN configuration.

D. Server: A server may host resources, but VLANs are managed at the switch level.

E. Hub: A hub is a basic networking device that simply forwards traffic; it cannot be used to configure VLANs.

This falls under the Networking domain in the CompTIA A+ Core 1 exam​.

When two devices on the same network are assigned the same IP address, it can lead to intermittent connectivity issues as the network switches between the two devices. This situation, known as an IP address conflict, can disrupt the normal operation of the network, leading to connectivity problems that appear sporadic or intermittent. Resolving duplicate IP addresses typically involves ensuring DHCP is correctly configured or manually setting unique static IP addresses for devices prone to conflicts.

The issue described suggests the 12V CPU power connector was likely forgotten during installation. The 12V power rail is essential for the operation of high-end workstation components, including the CPU. Without the 12V connection, the system will fail to POST and may power off shortly after being turned on.

Why 12V?

The 12V connector is critical for providing power to the CPU via the motherboard. Modern CPUs require a dedicated power source from the PSU, usually supplied through the 4-pin or 8-pin EPS12V connector.

If this connection is omitted, the motherboard will not receive adequate power for the CPU to function, resulting in the system failing to POST or shutting down after a brief period.

Incorrect Options:

A. 5V: The 5V rail powers USB devices, some motherboard components, and certain peripherals, but not the CPU directly.

C. 120V and D. 220V: These voltages refer to the power supply’s input from the wall outlet, not the internal connections to components.

CompTIA A+ Exam Objectives References:

220-1101 (Core 1), Section 3.5: Explains power supply requirements and troubleshooting scenarios related to component connections​.

DKIM (DomainKeys Identified Mail) is an email authentication method that attaches a digital signature to outgoing emails to verify the email’s authenticity and detect email spoofing.

SPF (Sender Policy Framework): Specifies which mail servers are authorized to send emails for a domain but does not involve digital signatures.

DNS Pointer (PTR): Used for reverse DNS lookups, not email authentication.

MX Records: Specify mail servers for email delivery but do not authenticate emails.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.4, email security and authentication​.

A sandbox in virtualization allows testing an application in an isolated environment to observe its behavior without affecting the host system.

Why Not A (Run an application on multiple workstations): This describes application virtualization, not sandboxing.

Why Not C (Migrate a legacy application): This is about virtualization for legacy support, not testing.

Why Not D (Create a firewall): A firewall does not act as a sandbox for application testing.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 4.2, virtualization and sandboxing​.
