FCSS_EFW_AD-7.6 Fortinet NSE 7 - Enterprise Firewall 7.6 Administrator Free Practice Exam Questions (2026 Updated)

The best way to block outdated SSL/TLS versions is to configure the SSL/SSH inspection profile to enforce a minimum SSL/TLS version and disable weak SSL versions.

By setting the minimum allowed SSL version in the HTTPS settings of the SSL/SSH inspection profile, FortiGate will:

● Block any connection using outdated SSL/TLS versions (such as SSLv3, TLS 1.0, or TLS 1.1).

● Enforce secure communication using only strong SSL/TLS versions (such as TLS 1.2 or TLS 1.3).

● Protect users from man-in-the-middle (MITM) and downgrade attacks that exploit weak encryption.

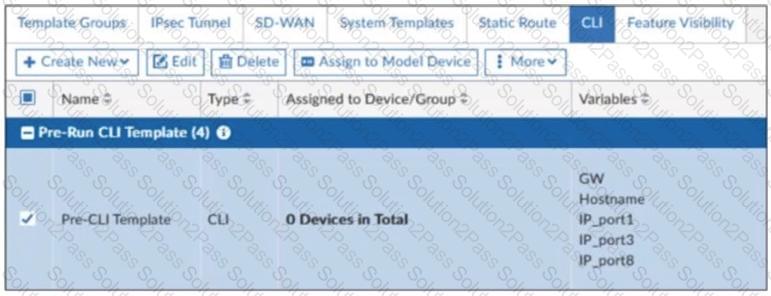

In FortiManager, pre-run CLI templates are used in Zero-Touch Provisioning (ZTP) and Low-Touch Provisioning (LTP) to configure a FortiGate device before it is fully managed by FortiManager.

These templates apply configurations when a device is initially provisioned. Once the pre-run CLI template is executed, FortiManager automatically unassigns it from the device because it is not meant to persist like other policy configurations. This prevents conflicts and ensures that the FortiGate configuration is not repeatedly applied after the initial setup.

When using IPsec VPNs and VXLAN, additional headers are added to packets, which can exceed the default 1500-byte MTU. This can lead to fragmentation issues, dropped packets, or degraded performance.

To resolve this, the MTU (Maximum Transmission Unit) should be adjusted only if all devices in the network path support it. Otherwise, some devices may still drop or fragment packets, leading to continued issues.

Why adjusting MTU helps:

● VXLAN adds a 50-byte overhead to packets.

● IPsec adds additional encapsulation (ESP, GRE, etc.), increasing the packet size.

● If packets exceed the MTU, they may be fragmented or dropped, causing intermittent connectivity issues.

● Lowering the MTU on interfaces ensures packets stay within the supported size limit across all network devices.

In a transparent mode Virtual Domain (VDOM) configuration, FortiGate operates as a Layer 2 bridge rather than performing Layer 3 routing. The set forward-domain < domain_ID > command is used to control how traffic is forwarded between interfaces within the same transparent VDOM.

A forward-domain acts as a broadcast domain, meaning only interfaces with the same forward-domain ID can exchange traffic. This setting is commonly used to separate different VLANs or network segments within the transparent VDOM while still allowing FortiGate to apply security policies.

Since Core1 and Core2 are not designated as management VDOMs, they rely on the root VDOM for connectivity to external resources such as FortiGuard updates. If the root VDOM lacks a VDOM link to these VDOMs or cannot reach FortiGuard services, security features like web filtering will stop working.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

According to the FortiOS 7.6 Infrastructure study guide and Hardware Acceleration documentation, the Network Processor 7 (NP7) is the flagship hardware component designed to offload high-performance network traffic from the system CPU. A critical advancement of the NP7 over previous generations (such as the NP6) is its native support for Virtual eXtensible LAN (VXLAN) hardware acceleration.

In enterprise environments where VXLAN is used to extend Layer 2 segments over a Layer 3 network, the encapsulation and decapsulation of VXLAN headers can be computationally expensive. The NP7 provides specialized circuitry to perform these operations at line rate, significantly reducing latency and preventing CPU saturation. This allows the FortiGate to maintain high throughput even when handling complex overlay tunnels.

While the CP9 (Content Processor) (Option C) provides acceleration for SSL/TLS inspection and IPsec encryption, it does not handle network layer encapsulation like VXLAN. NTurbo (Option D) is a software feature that offloads firewall sessions to the network processors but is not a hardware chip itself. The SP5 (Option B) also supports VXLAN offloading in newer mid-range models, but the NP7 is the primary " specialized acceleration hardware " referenced for high-end enterprise performance in the 7.6 curriculum.

Comprehensive and Detailed Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

Based on the FortiOS 7.6 Administration Guide and the HA Virtual Clustering documentation, the exhibit demonstrates a Virtual Clustering environment where multiple VDOMs are distributed across an HA cluster.

In a virtual cluster setup, VDOMs are assigned to either virtual cluster 1 (vcluster 1) or virtual cluster 2 (vcluster 2). Each virtual cluster has its own independent primary unit selection process. The primary unit for a virtual cluster is determined based on the standard HA selection criteria: Monitored Interfaces > HA Uptime > Priority > Serial Number.

According to the exhibit:

Virtual Cluster 1 (edit 1) contains VDOMs " Core1 " and " root " .

Virtual Cluster 2 (edit 2) contains VDOM " Core2 " .

The HA uptime is stated to be the same for both devices.

For edit 2 (Core2), HQ-NGFW-1 has a priority of 150, while HQ-NGFW-2 has a priority of 120.

In both units, override is disabled (default).

Since the uptime is equal and no monitored interfaces are down, the cluster uses the Priority value to select the primary unit for each vcluster. Currently, HQ-NGFW-1 is the primary for Core2 because its priority (150) is higher than HQ-NGFW-2 ' s (120). To ensure HQ-NGFW-2 handles the Core2 traffic, its priority for virtual cluster 2 must be increased to a value higher than 150. Option C (changing the priority from 120 to 200) achieves this.

Zero phase selectors in IPsec Phase 2 mean that no specific traffic selectors (subnets) are defined, allowing any traffic to be encrypted through the VPN tunnel. This can cause unintended traffic forwarding issues and disrupt network operations.

To prevent this from happening during future migrations:

● Using routing protocols ensures that only specific subnets are advertised over the tunnel. Dynamic routing (such as OSPF or BGP) helps define which networks should use the tunnel, preventing unintended traffic from being encrypted.

● Clearly defining phase 2 selectors avoids the problem of encrypting all traffic by explicitly stating the allowed source and destination subnets. This prevents the tunnel from affecting unrelated network traffic.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

According to the FortiOS 7.6 Administration Guide and the FortiGate Infrastructure study materials, inter-VDOM communication can be achieved using either software-based VDOM links or hardware-accelerated NPU VDOM links (vlinks).

While standard VDOM links (Option B) allow traffic to pass between VDOMs, they are processed by the system CPU, which can become a bottleneck in high-throughput environments. To ensure accelerated internet access as specified in the requirements, NPU vlinks (Option C) must be used. NPU vlinks are virtual interfaces created in pairs that allow traffic to be offloaded to the FortiGate’s Network Processor (NP6, NP7, etc.), significantly reducing latency and CPU overhead.

In the provided exhibit, the root VDOM has direct internet access, while VDOM1 and VDOMn do not. By configuring NPU vlinks between the non-root VDOMs and the root VDOM, you create a hardware-accelerated path. Traffic from the internal VDOMs is sent through the vlink to the root VDOM, which then forwards it to the Internet. This " hub-and-spoke " VDOM architecture, powered by NPU acceleration, ensures that all VDOMs share the internet connection without sacrificing performance.

" Zero phase 2 selectors " (also known as 0.0.0.0/0 selectors) are commonly used in dynamic VPN environments like ADVPN to allow any traffic to be routed into the tunnel. However, because the selector itself does not define the network range, there is a risk of traffic being sent down " invalid paths " if the routing table is not properly maintained.

Assign tunnel IP: For dynamic routing protocols to function over an IPsec tunnel, the tunnel interfaces must have IP addresses assigned.

Routing protocols: To ensure traffic only follows valid paths, dynamic routing protocols (such as BGP or OSPF) must be used to populate the routing table with the specific prefixes that are actually reachable through each tunnel.

==============

In a Fortinet Security Fabric where SAML SSO is enabled, the root FortiGate acts as the Identity Provider (IdP) for the fabric members. When an administrator logs into a downstream device (such as an ISFW or DCFW) using their Security Fabric credentials, their level of access is determined by the administration profile assigned during the setup. By default, for security reasons and to maintain the root ' s role as the primary management point, downstream fabric members often restrict these users to a readonly admin profile (specifically super_admin_readonly), which prevents them from having Login Read-Write options on those devices.

==============

In FortiManager, per-device mapping (also known as dynamic mapping ) is a fundamental feature used to manage objects that must have different values or names on different FortiGate units within the same ADOM.

According to the Fortinet Enterprise Firewall 7.6 Administrator Study Guide:

Policy Package View: When an administrator views a policy package in the FortiManager GUI, they see the ADOM-level object . In this case, the object is named or contains the value " 10.0.5 " .

Reinstall Preview/Installation: When FortiManager prepares the configuration for a specific device (like HQ-DCFW ), it checks for any per-device mappings defined for the objects used in the policy.

The Result: If a mapping exists, FortiManager replaces the ADOM-level object with the device-specific object or value. The reinstall preview shows the actual CLI commands that will be pushed to the device. In the exhibit, it is clear that the ADOM object " 10.0.5 " has been mapped to the device-specific address object " SSLVPN_tunnel_addr1 " for the HQ-DCFW unit.

This mechanism allows an administrator to maintain a single " Golden Policy " package for the entire enterprise while ensuring that device-specific details (like local subnet names or unique tunnel addresses) are correctly applied to each physical or virtual firewall.
