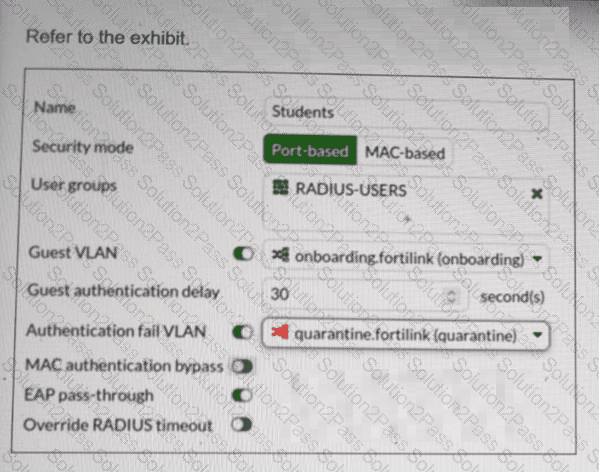

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the interaction between a managed switch and a connected endpoint depends on whether the endpoint can participate in the 802.1X authentication process. When a security policy is applied to a port, the switch sends EAP (Extensible Authentication Protocol) requests to the device to initiate the login.

The FortiSwitch handles two primary failure scenarios differently:

Non-supplicant (No 802.1X Support):If a device, such as a legacy PC or a basic printer, does not have an 802.1X supplicant, it will not respond to the switch ' s EAP requests. In this case, the switch waits for the duration specified in theGuest authentication delayfield (30 seconds in the exhibit). Once this timer expires without a response, the switch places the device into theGuest VLAN. As shown in the exhibit, the Guest VLAN is explicitly set to " onboarding.fortilink (onboarding) " .

Authentication Failure:If a devicedoessupport 802.1X but the user provides incorrect credentials, the RADIUS server returns an Access-Reject message. In this scenario, the device is moved to theAuthentication fail VLAN, which the exhibit identifies as " quarantine.fortilink (quarantine) " .

Note:BecauseMAC authentication bypass (MAB)is disabled in the exhibit, the switch will not attempt to authenticate the device ' s MAC address against the RADIUS server before defaulting to the Guest VLAN. Therefore, for any device lacking an 802.1X supplicant, the result is placement into theonboardingVLAN.

Regarding the scenario where a FortiSwitch did not reboot after the authorization process while the other devices did, the most likely cause, given the configuration settings in the exhibit, is:

The management mode was set to use FortiLink mode (Option B): If the FortiSwitch was already configured to use FortiLink for its management mode, it may not require a reboot to complete the authorization process as its management interface settings are already aligned with FortiLink requirements. This is unlike switches that might be transitioning from a standalone or another management mode, which would typically require a reboot to apply new management settings fully.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the auto-network setting (configured via config switch auto-network) is a global feature introduced to simplify the initial deployment of switches. Starting inFortiSwitchOS 7.6.0and continuing through7.6, this feature isenabled by defaulton all new and factory-reset units.1

The primary function of theauto-networksetting is to facilitate theautomatic discovery of the FortiGate and the establishment of the FortiLink interface (Option B). When enabled, the switch automatically scans its physical ports to detect a management entity, such as a FortiGate controller. This " zero-touch " discovery mechanism allows the switch to identify the correct uplink ports and automatically configure them as members of theFortiLinkfabric without manual CLI or GUI intervention.

Furthermore, the documentation notes that auto-network also managesauto-topology, which allows two switches to automatically form anInter-Switch Link (ISL)trunk between them.2This includes setting the management VLAN (typically VLAN 4094) and ensuring that DHCP snooping is trusted on these discovered links.3If an administrator intends to use the switch in a strictly standalone mode without any auto-discovery or FortiLink features, the documentation specifies that they must manually disable the auto-network status and the auto-fortilink-discovery global settings to prevent the switch from attempting to join a managed fabric.4

Regarding other options:Option Arefers to Dynamic Port Policy or NAC features.Option Cis a standard STP configuration unrelated to the auto-network discovery suite.Option Dis a broader management capability that depends on successful network discovery but is not the specific control point for the auto-network setting.

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

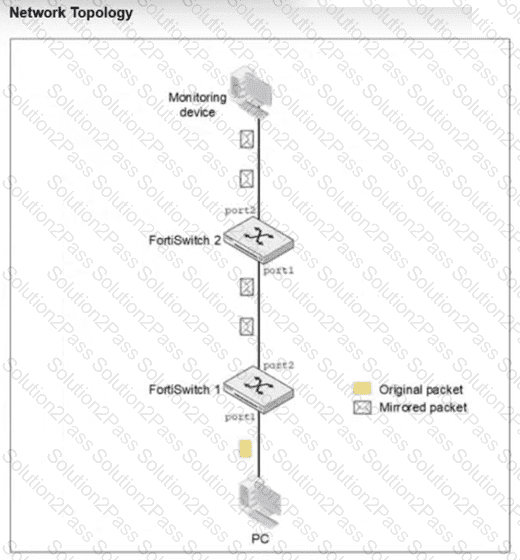

Standard SPAN Limitation: Switched Port Analyzer (SPAN) is a local port mirroring technology. By design, SPAN copies traffic from one or more source ports (or VLANs) to a destination port on thesame physical switch.

Traffic Forwarding: Standard SPAN traffic is not encapsulated and does not have the necessary headers to be routed or switched across a network fabric or trunk links between multiple switches. Therefore, if the source port is on FortiSwitch 1 and the monitoring device is on FortiSwitch 2, the mirrored frames will not reach the destination.

Alternative Solutions: To monitor traffic across multiple switches (multi-hop), technologies such asRemote SPAN (RSPAN)orEncapsulated Remote SPAN (ERSPAN)must be used. RSPAN uses a specific VLAN to carry the mirrored traffic across switches, while ERSPAN encapsulates the traffic in GRE packets so it can be routed across Layer 3 boundaries.

Troubleshooting Conclusion: Since the scenario describes a standard SPAN configuration and the traffic is failing to traverse from FortiSwitch 1 to FortiSwitch 2, the most likely reason is that basic SPAN does not support forwarding mirrored traffic across multiple switches.

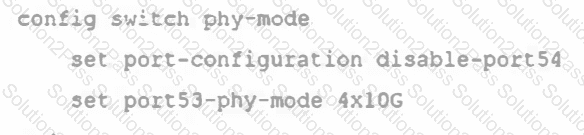

Regarding the configuration of a FortiSwitch to split a port into multiple smaller interfaces:

The CLI commands are enabling a split port into four 10Gbps interfaces (Option B): The command shown in the exhibit is typically used to configure a high-speed port (like a 40Gbps or 100Gbps interface) to be divided into smaller, independent 10Gbps interfaces. This feature allows more flexible use of the switch ' s physical resources.

The port full speed prior to the split was 100G SFP+ (Option C): Given the context of splitting the port into multiple 10Gbps interfaces, the original port configuration likely supported a high-speed transceiver such as 100G SFP+. This would make it technically feasible to divide the interface into multiple 10Gbps channels, enhancing connectivity options without requiring additional physical interfaces.

These configurations and capabilities are typical in modern network setups, especially in environments requiring high density and flexibility in connectivity, allowing network administrators to optimize physical infrastructure efficiently.

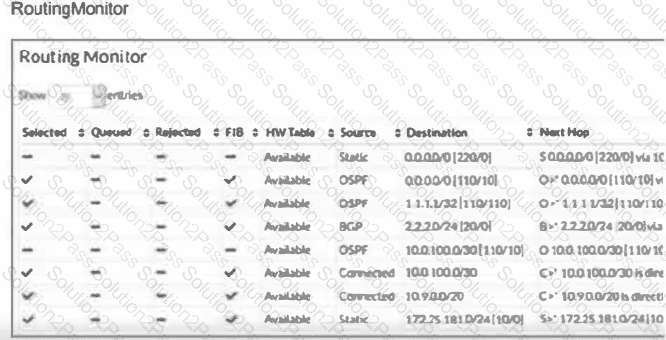

From the exhibit and the details given about the routes not installed in the FIB:

These two routes have a higher administrative distance value available to the destination networks (Option A): Administrative distance is a measure used by routers to select the best path when there are two or more different routes to the same destination from two different routing protocols. A higher administrative distance means that the route is considered less trustworthy, thus not selected for the FIB unless the more preferred routes fail.

These two routes will become primary, if the best routes are removed (Option B): In routing, if the currently installed routes (which are considered the best due to reasons like lower administrative distance) are removed or become unavailable, the next best routes based on administrative distance will be used. This behavior ensures redundancy and maintains network connectivity in diverse scenarios.

Pag 232, FortiSwitch_7.6_Study_Guide-Online " However, if you want to authenticate each device behind a port, and optionally, grant each device a different access level based on the credentials provided, then MAC-based is required. "

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink Guide (FortiOS 7.6), FortiSwitch supports two primary modes for 802.1X authentication:port-basedandMAC-based.

In802.1X port-based authentication, once a single supplicant (user or device) successfully authenticates, the physical port is transitioned to an " authorized " state, allowing all traffic from any device connected to that port (e.g., through a hub or unmanaged switch) to pass through. This is summarized by Option D, which is incorrect for MAC-based mode.

In contrast,802.1X MAC-based authentication(Option B) treats each device ' s MAC address as a distinct session. The switch maintains a table of authenticated MAC addresses for each port and applies security policies to each one individually. This granular approach allows the FortiSwitch to grantdifferent access levelsto different devices on the same physical port. For example, a laptop might be assigned to a corporate VLAN with a specific Dynamic Access Control List (DACL), while an IP phone on the same port is assigned to a Voice VLAN.

Furthermore, FortiSwitchOS 7.6 documentation specifies that MAC-based mode can support up to20 devices per port. Each device must provide its own credentials (or be validated via MAC Authentication Bypass), enabling the switch to enforce specific security attributes—such as VLAN IDs, QoS marking, and ingress ACLs—tailored to each uniquely identified device. While the switch typically communicates with aRADIUS server(Option C) for these credentials, MAC-based mode ' s primary functional advantage is this individual session management and authorization flexibility.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Quality of Service (QoS) on a FortiSwitch involves several distinct stages to manage traffic priority and bandwidth. The specific process of taking identified packets and placing them into a specific priority buffer for transmission is known asQueuing.1

On FortiSwitch, when a frame enters an ingress port, it is first classified based on its incomingCoS(Layer 2) orDSCP(Layer 3) markings.2However, it is theQueuing for egress traffic (Option B)mechanism that dictates which of the eight available hardware queues the frame will reside in before it is sent out of the destination port. The switch uses a mapping table (such as a CoS-to-queue or DSCP-to-queue map) to ensure that high-priority traffic, like voice or video, is placed in a higher-priority queue to minimize latency and jitter.

Regarding the other options:Classification (Option A)is the initial identification of the packet ' s priority but does not perform the physical mapping to a buffer.Policing (Option C)is an ingress mechanism used to drop or remark traffic that exceeds a defined rate.Shaping (Option D)is an egress mechanism that smooths out traffic bursts by delaying packets but is separate from the initial queue assignment. Therefore, the act of mapping specific markings to an egress queue is a fundamental function of the queuing mechanism.

When a FortiSwitch is converted fromstandalone (local) management modetoFortiGate-managed mode using FortiLink, FortiSwitchOS follows a well-defined and protective transition process. According to the FortiSwitchOS 7.6 Administrator Guide, the switchdoes not mergeits existing standalone configuration with FortiLink-managed settings, nor does FortiGate import or preserve the active configuration for reuse.

Instead, when the management mode change occurs, the FortiSwitchsaves the current standalone configuration internallyand thenresets its operational configuration to the default FortiLink configuration. This default configuration is required so the switch can correctly establish FortiLink control-plane communication with the FortiGate, including CAPWAP-based management, VLAN 4094 usage, and dynamic policy provisioning.

Once the FortiSwitch is under FortiGate management,all configuration is controlled centrally by the FortiGate, including VLANs, port policies, security features, and firmware management. The previously saved standalone configuration is retained only as a backup reference on the switch and isnot actively usedunless the switch is later reverted back to standalone mode.

This behavior ensures configuration consistency, prevents conflicts between local and centralized policies, and aligns the switch with the FortiGate-centricSecurity Fabric architecture. It also avoids unpredictable results that could occur if legacy standalone settings were merged with FortiLink-managed profiles.

The other options are incorrect because FortiSwitch does not register with FortiSwitch Cloud automatically, does not merge configurations, and FortiGate does not back up the standalone configuration during onboarding.

Therefore, the correct and fully documented answer isC. FortiSwitch saves the standalone configuration and changes to the default FortiLink configuration.

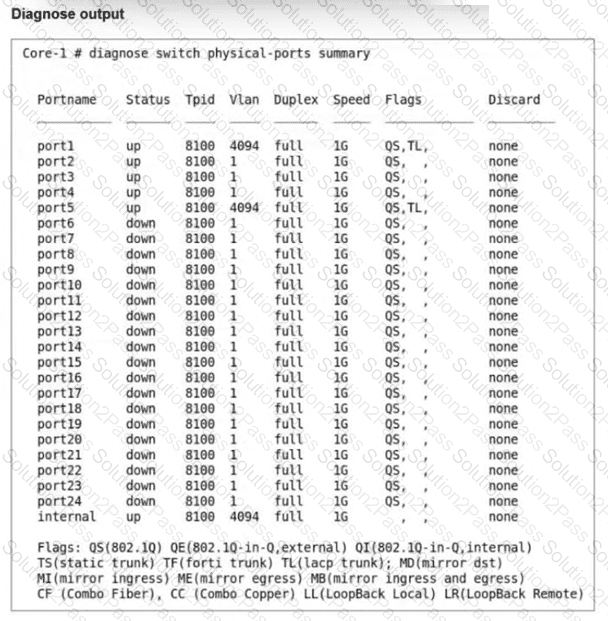

The output of the diagnose switch physical-ports summary command provides critical insight into how a FortiSwitch is being managed by examiningVLAN assignments,tag protocol identifiers (TPID), andinternal port behavior. In the provided exhibit, several ports—includingport1,port5, and theinternalport—are assigned toVLAN 4094.

According to the FortiSwitchOS 7.6 Administrator Guide,VLAN 4094 is reserved for FortiLink management trafficwhen a FortiSwitch is managed by a FortiGate. FortiLink uses this dedicated VLAN to carry control-plane traffic such as configuration synchronization, monitoring data, LLDP-based discovery, and keepalive messages between the FortiGate and FortiSwitch. The presence of VLAN 4094 on physical interfaces is a strong and explicit indicator ofFortiGate-managed mode.

In standalone or local management mode, FortiSwitch ports typically default toVLAN 1or administrator-defined VLANs, andVLAN 4094 is not automatically assigned. Similarly, FortiSwitch Cloud–managed devices do not use VLAN 4094 in this manner, as cloud management relies on IP connectivity to FortiEdge Cloud rather than FortiLink encapsulation.

Additionally, the internal port showing VLAN 4094 further confirms FortiLink operation, as this internal interface is used by the switch ASIC to communicate with the FortiGate over the FortiLink tunnel. This behavior is documented in FortiOS 7.6 and FortiSwitchOS 7.6 design guides as characteristic of FortiGate-managed FortiSwitch deployments.

Therefore, based on the VLAN assignments shown—specifically the use ofVLAN 4094—the most accurate and fully verified conclusion is thatthe FortiSwitch is managed by FortiGate, makingOption Bthe correct answer.

A FortiLink interface must be enabled on FortiGate (A): To manage a FortiSwitch stack, a dedicated FortiLink interface on the FortiGate is required. This interface is used to manage the communication between FortiGate and the FortiSwitch stack, enabling centralized control and configuration of the switches directly from the FortiGate.

The switch controller feature must be enabled on FortiGate (B): Enabling the switch controller feature on FortiGate allows it to manage connected FortiSwitch units. This feature provides tools and interfaces on the FortiGate for overseeing FortiSwitch configurations, monitoring switch status, and managing network policies across the stack.

In mixed-vendor network environments, such as deployments that include bothFortiSwitchandCiscodevices, properLayer 2 discovery protocolsmust be enabled to allow devices to automatically discover neighbors and exchange essential device and interface information. FortiSwitchOS 7.6 supports bothCisco Discovery Protocol (CDP)andLink Layer Discovery Protocol (LLDP)to ensure interoperability.

Cisco Discovery Protocol (CDP)is a Cisco-proprietary Layer 2 discovery protocol widely used by Cisco switches, routers, and IP phones. When CDP is enabled on FortiSwitch interfaces, Cisco devices can discover FortiSwitch neighbors and receive information such as device ID, port ID, platform, and capabilities. This is particularly important in Cisco-centric networks where CDP is the primary discovery mechanism.

Link Layer Discovery Protocol (LLDP), defined by IEEE 802.1AB, is a vendor-neutral discovery protocol supported by both Fortinet and Cisco devices. Enabling LLDP allows FortiSwitch and Cisco devices to exchange standardized information including system name, port description, VLAN information, and management address. LLDP is essential for cross-vendor compatibility and is commonly enabled by default in modern enterprise networks.

The remaining options are incorrect.Unidirectional Link Detection (UDLD)is used to detect unidirectional fiber or copper link failures and does not provide device discovery or information exchange.LLDP-MEDis an extension of LLDP specifically designed for media endpoints such as IP phones and is not required for general switch-to-switch discovery.

Therefore, to ensure automatic discovery and information exchange between FortiSwitch and Cisco devices,both CDP and LLDP must be enabled, makingOptions B and Cthe correct and fully verified answers based on FortiSwitchOS 7.6 documentation.

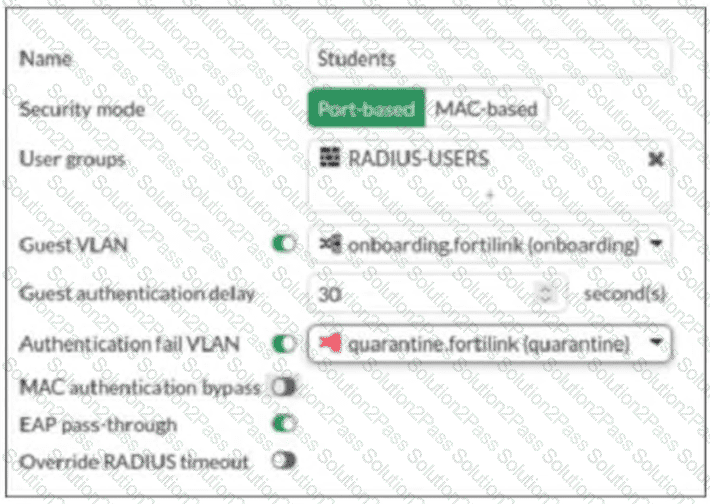

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, 802.1X port security allows administrators to define specific actions based on the outcome of an authentication attempt. The configuration exhibit shows a security policy named " Students " with two specialized VLAN assignments enabled: aGuest VLANand anAuthentication fail VLAN.

In FortiSwitchOS 7.6, these two settings serve distinct purposes based on the client ' s behavior:

Guest VLAN (Option C):This is used when a connected device doesnothave an 802.1X supplicant (software) or does not respond to EAP (Extensible Authentication Protocol) requests within the specified " Guest authentication delay " . In this scenario, the device is moved to the " onboarding " VLAN to allow for basic network access or software downloads.

Authentication fail VLAN (Option A):This is triggered specifically when a devicedoesattempt to authenticate via 802.1X but the authentication server (RADIUS) returns anAccess-Rejectmessage, typically due toincorrect credentials.

As stated in the scenario, the userattemptsto authenticate but enters thewrong credentials. According to the policy shown in the exhibit, theAuthentication fail VLANis enabled and set to " quarantine.fortilink (quarantine) " . Therefore, the FortiSwitch will logically move the port ' s traffic into the quarantine VLAN, isolating the user from the production network due to the failed login attempt. Option B is incorrect as there is no " shutdown " action configured, and Option D refers to a default state that is overridden by the explicit failure policy.
