To enable access to the FortiSwitch management interface from the network, certain configuration adjustments need to be made, particularly considering the VLAN settings displayed in the exhibit:

Adding port24 native VLAN to the allowed VLANs on internal (Option A): The management VLAN (VLAN 4094 in this case, as it is set as the native VLAN on the ' internal ' interface of the FortiSwitch) must be included in the allowed VLANs on the interface that provides management connectivity. Since port24 is set with a different native VLAN (VLAN 100), VLAN 4094 (the management VLAN) should be allowed through to ensure connectivity.

Allow VLAN ID 4094 on port24 if management traffic is tagged (Option C): Management traffic is tagged on VLAN 4094. Since port24 is connected to the network and serves as an uplink, allowing VLAN 4094 ensures that management traffic can reach the management interface of the FortiSwitch through this port.

The changes align with Fortinet’s best practices for setting up management VLANs and ensuring they are permitted on the relevant switch ports for proper management traffic flow.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, understanding how VLANs are processed on a switch port is fundamental to network segmentation. A FortiSwitch port behaves differently depending on whether traffic is entering (ingress) or leaving (egress) the interface.

First,you can assign only one native VLAN on a port (Option C). The Native VLAN (often called the PVID or Port VLAN ID) is the default internal ID assigned to any untagged frames arriving at the port. In a managed environment, this is typically set via the FortiGate ' s switch controller. By design, a single physical interface can only belong to one primary broadcast domain for untagged ingress traffic to ensure there is no ambiguity in the switch ' s internal forwarding logic.

Second, theuntagged VLAN setting applies to egress traffic only (Option B). While the " Allowed VLANs " list defines which tagged traffic can pass through the port, the " Untagged VLANs " list specifies which of those VLAN tags should beremovedby the switch before the frame is transmitted out of the physical port. This is crucial for connecting devices that do not support 802.1Q tagging, such as standard PCs or printers.

Regarding the incorrect options:Option Ais incorrect because the " Untagged " list does not define ingress rules; ingress is governed by the Native VLAN for untagged packets and the Allowed list for tagged packets.Option Dis incorrect because, in a managed FortiLink environment, all VLAN assignments should be performed through theFortiGate ' s Switch Controllerto ensure centralized management and consistency.

It provides benefits that can be obtained when using 802.1X authentication (C): MAC, IP, and protocol-based VLANs on FortiSwitch are beneficial in network environments where additional granularity is needed in traffic segmentation and security, similar to what can be achieved through 802.1X authentication. These VLAN types allow for dynamic assignment of ports to VLANs based on the characteristics of the incoming traffic, enhancing both security and network efficiency.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Dynamic ARP Inspection (DAI) is a security feature used to intercept, log, and discard ARP packets with invalid IP-to-MAC address bindings. DAI is primarily used to prevent " Man-in-the-Middle " attacks, such as ARP spoofing or ARP cache poisoning.

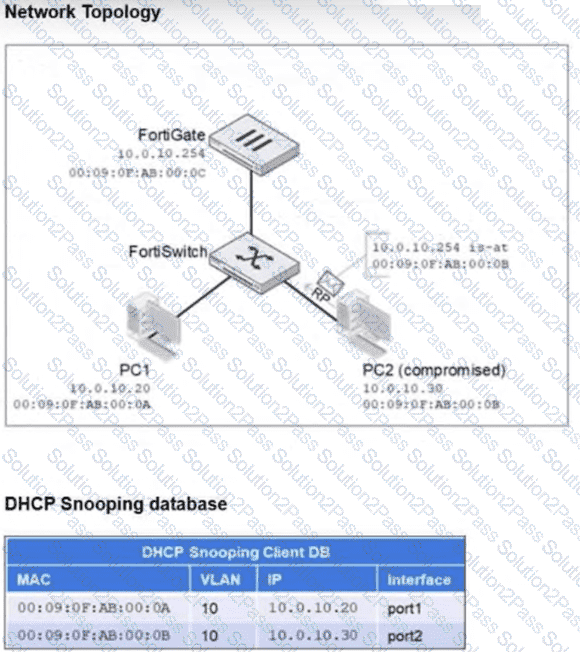

In this scenario, DAI is active on VLAN 10. When DAI is enabled, the FortiSwitch intercepts all ARP packets on untrusted ports and validates them against a trusted source—most commonly theDHCP snooping database. As shown in the " DHCP Snooping database " exhibit, PC2 is correctly mapped to IP 10.0.10.30 and MAC 00:09:0F:AB:00:0B.

When PC2 attempts to send a forged ARP reply claiming that IP 10.0.10.254 (the FortiGate ' s IP) is located at its own MAC address (00:09:0F:AB:00:0B), the FortiSwitch ' s DAI engine inspects the packet. It checks the DHCP snooping database for a binding that matches IP 10.0.10.254 to MAC 00:09:0F:AB:00:0B. Finding no such valid entry (because the database correctly identifies the MAC 00:09:0F:AB:00:0B as belonging to IP 10.0.10.30), the switch identifies the ARP packet as illegitimate.

Consequently, the FortiSwitch willdrop the ARP repliesbecause they fail the DAI validation check against the established DHCP snooping bindings. Option A is incorrect as DAI functions independently of IPSG once the database is populated. Option B is incorrect because " accepting " the spoofed packet is the opposite of DAI ' s purpose. Option C is incorrect because DAI is specifically designed to run on untrusted ports to protect the network from client-side attacks.

According to theFortiSwitchOS 7.6 Administration GuideandFortiOS 7.6 FortiLink Guide, the processing of Ethernet frames on a managed FortiSwitch port depends on whether the frame is tagged or untagged upon arrival (ingress) and how the port ' s VLAN membership is defined.

In the provided exhibit,port1is configured with set vlan " IP_Phone " (VLAN 20) as itsnative VLAN. By definition, the native VLAN handles untagged traffic; any untagged frame arriving at the port is assigned to VLAN 20, and any egress traffic from VLAN 20 is sent out of the port without a tag. However, the scenario specifically states that theIP phone tags its traffic with VLAN ID 20.

When a FortiSwitch receives atagged frame, it checks the VLAN ID against theallowed-vlanslist configured on that port. Although VLAN 20 is the native VLAN, the exhibit shows that the port has been explicitly configured with set allowed-vlans " quarantine " . This creates a restrictive filter that permits only tagged frames belonging to the " quarantine " VLAN to enter or exit the port. Because VLAN 20 (IP_Phone) is not present in the allowed-vlans list, the switch drops the tagged frames from the IP phone during ingress processing.

To resolve this, the administrator must modify theFortiSwitch port configurationby adding VLAN 20 to the allowed_vlans list (e.g., set allowed-vlans " quarantine " " IP_Phone " or set allowed-vlans-all enable). This ensures that the switch recognizes and permits tagged traffic for VLAN 20 on that physical interface. Option B is incorrect because l2forward is a Layer 3 interface setting on the FortiGate and does not address the physical port ' s ingress filtering logic on the switch. Disabling the edge_port (Option D) relates to Spanning Tree Protocol (STP) convergence and would not impact VLAN tag filtering.
