NSE5_FSW_AD-7.6 Fortinet NSE 5 - FortiSwitch 7.6 Administrator Free Practice Exam Questions (2026 Updated)

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, understanding how VLANs are processed on a switch port is fundamental to network segmentation. A FortiSwitch port behaves differently depending on whether traffic is entering (ingress) or leaving (egress) the interface.

First,you can assign only one native VLAN on a port (Option C). The Native VLAN (often called the PVID or Port VLAN ID) is the default internal ID assigned to any untagged frames arriving at the port. In a managed environment, this is typically set via the FortiGate ' s switch controller. By design, a single physical interface can only belong to one primary broadcast domain for untagged ingress traffic to ensure there is no ambiguity in the switch ' s internal forwarding logic.

Second, theuntagged VLAN setting applies to egress traffic only (Option B). While the " Allowed VLANs " list defines which tagged traffic can pass through the port, the " Untagged VLANs " list specifies which of those VLAN tags should beremovedby the switch before the frame is transmitted out of the physical port. This is crucial for connecting devices that do not support 802.1Q tagging, such as standard PCs or printers.

Regarding the incorrect options:Option Ais incorrect because the " Untagged " list does not define ingress rules; ingress is governed by the Native VLAN for untagged packets and the Allowed list for tagged packets.Option Dis incorrect because, in a managed FortiLink environment, all VLAN assignments should be performed through theFortiGate ' s Switch Controllerto ensure centralized management and consistency.

It provides benefits that can be obtained when using 802.1X authentication (C): MAC, IP, and protocol-based VLANs on FortiSwitch are beneficial in network environments where additional granularity is needed in traffic segmentation and security, similar to what can be achieved through 802.1X authentication. These VLAN types allow for dynamic assignment of ports to VLANs based on the characteristics of the incoming traffic, enhancing both security and network efficiency.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Dynamic ARP Inspection (DAI) is a security feature used to intercept, log, and discard ARP packets with invalid IP-to-MAC address bindings. DAI is primarily used to prevent " Man-in-the-Middle " attacks, such as ARP spoofing or ARP cache poisoning.

In this scenario, DAI is active on VLAN 10. When DAI is enabled, the FortiSwitch intercepts all ARP packets on untrusted ports and validates them against a trusted source—most commonly theDHCP snooping database. As shown in the " DHCP Snooping database " exhibit, PC2 is correctly mapped to IP 10.0.10.30 and MAC 00:09:0F:AB:00:0B.

When PC2 attempts to send a forged ARP reply claiming that IP 10.0.10.254 (the FortiGate ' s IP) is located at its own MAC address (00:09:0F:AB:00:0B), the FortiSwitch ' s DAI engine inspects the packet. It checks the DHCP snooping database for a binding that matches IP 10.0.10.254 to MAC 00:09:0F:AB:00:0B. Finding no such valid entry (because the database correctly identifies the MAC 00:09:0F:AB:00:0B as belonging to IP 10.0.10.30), the switch identifies the ARP packet as illegitimate.

Consequently, the FortiSwitch willdrop the ARP repliesbecause they fail the DAI validation check against the established DHCP snooping bindings. Option A is incorrect as DAI functions independently of IPSG once the database is populated. Option B is incorrect because " accepting " the spoofed packet is the opposite of DAI ' s purpose. Option C is incorrect because DAI is specifically designed to run on untrusted ports to protect the network from client-side attacks.

According to theFortiSwitchOS 7.6 Administration GuideandFortiOS 7.6 FortiLink Guide, the processing of Ethernet frames on a managed FortiSwitch port depends on whether the frame is tagged or untagged upon arrival (ingress) and how the port ' s VLAN membership is defined.

In the provided exhibit,port1is configured with set vlan " IP_Phone " (VLAN 20) as itsnative VLAN. By definition, the native VLAN handles untagged traffic; any untagged frame arriving at the port is assigned to VLAN 20, and any egress traffic from VLAN 20 is sent out of the port without a tag. However, the scenario specifically states that theIP phone tags its traffic with VLAN ID 20.

When a FortiSwitch receives atagged frame, it checks the VLAN ID against theallowed-vlanslist configured on that port. Although VLAN 20 is the native VLAN, the exhibit shows that the port has been explicitly configured with set allowed-vlans " quarantine " . This creates a restrictive filter that permits only tagged frames belonging to the " quarantine " VLAN to enter or exit the port. Because VLAN 20 (IP_Phone) is not present in the allowed-vlans list, the switch drops the tagged frames from the IP phone during ingress processing.

To resolve this, the administrator must modify theFortiSwitch port configurationby adding VLAN 20 to the allowed_vlans list (e.g., set allowed-vlans " quarantine " " IP_Phone " or set allowed-vlans-all enable). This ensures that the switch recognizes and permits tagged traffic for VLAN 20 on that physical interface. Option B is incorrect because l2forward is a Layer 3 interface setting on the FortiGate and does not address the physical port ' s ingress filtering logic on the switch. Disabling the edge_port (Option D) relates to Spanning Tree Protocol (STP) convergence and would not impact VLAN tag filtering.

Enable IGMP snooping proxy (C): To reduce the number of unwanted IGMP reports processed by the IGMP querier, enabling IGMP snooping proxy is effective. This feature acts as an intermediary between multicast routers and hosts, optimizing the management of IGMP messages by handling report messages locally and reducing unnecessary IGMP traffic across the network. This minimizes the processing load on the IGMP querier and improves overall network efficiency.

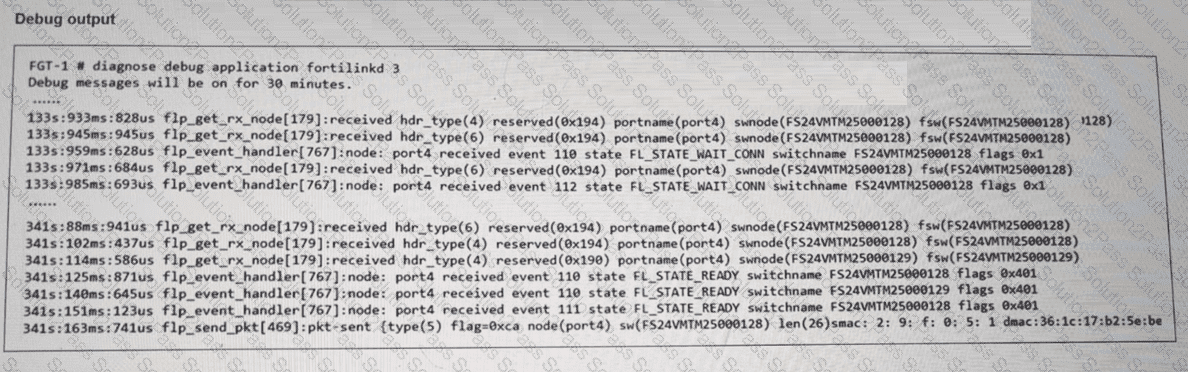

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health and stability of the control plane between a FortiGate and a managed FortiSwitch are maintained through a continuous keepalive mechanism. Once a FortiSwitch is authorized and transitions to theFL_STATE_READYstate (as shown in the debug output in the exhibit), the devices must ensure the management tunnel remains active.

The primary mechanism for this is theFortiLink heartbeat. The documentation specifies that a managed FortiSwitch sends heartbeat messages to the FortiGate every few seconds over the FortiLink interface. The FortiGate, acting as the controller, must acknowledge these heartbeats to confirm that the switch is still reachable and responding to management commands. If the FortiGate fails to receive a certain number of consecutive heartbeats, it will consider the switch " offline " in the GUI, even if physical link lights remain green.

Checking for these heartbeat exchanges is a critical troubleshooting step to verify that theCAPWAP(Control and Provisioning of Wireless Access Points) based management tunnel is functioning correctly without intermittent drops. Option A is incorrect as port disabling is a configuration choice, not a health check. Option C is incorrect because firmware updates are manual or scheduled, not automatic upon authorization. Option D is a logging function that relies on a healthy management tunnel but is not a direct measure of the FortiLink ' s operational health.

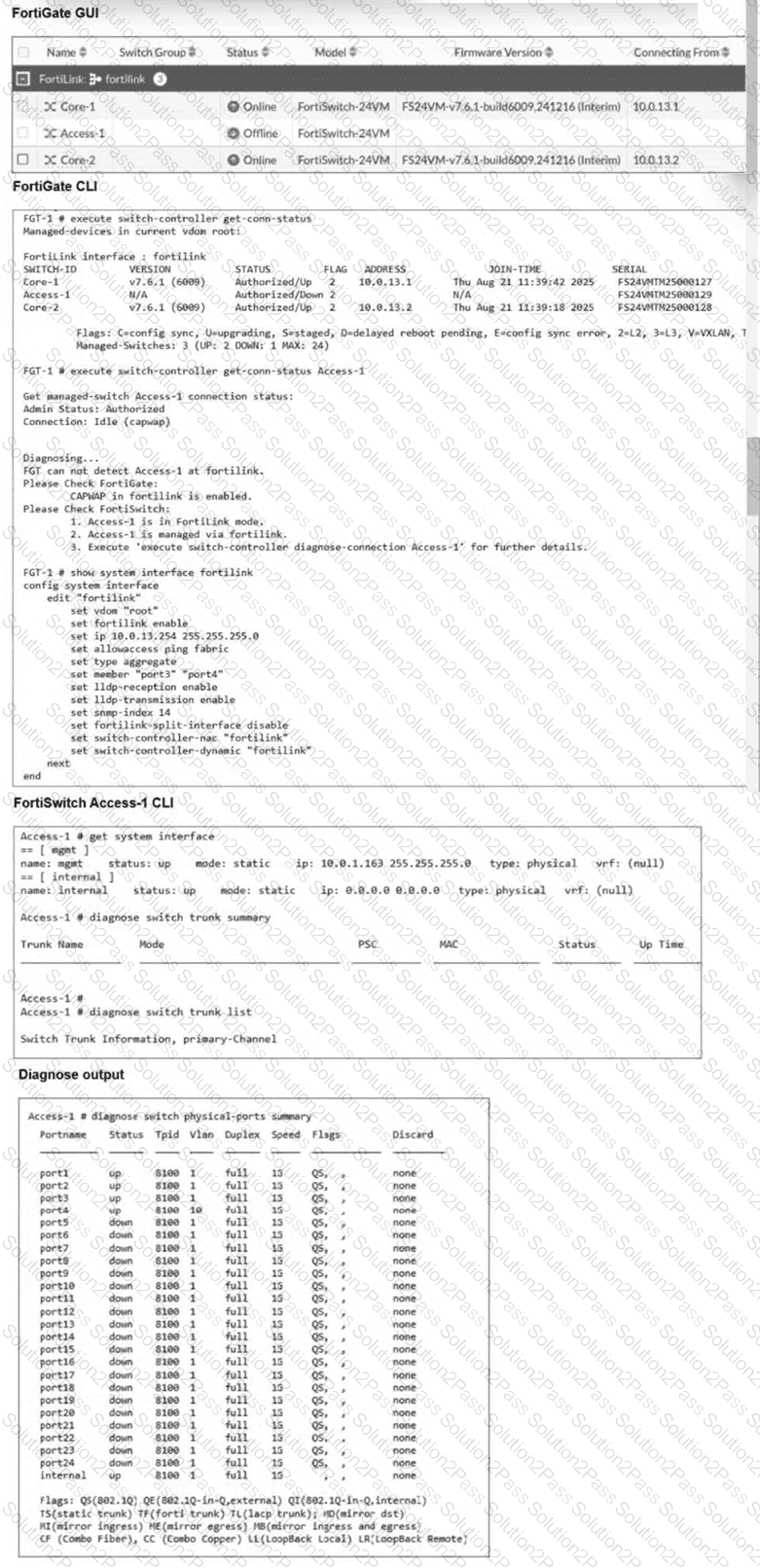

In a FortiGate-managed switching deployment usingFortiLink, FortiSwitch devices rely on theirinternal interfaceto establish management connectivity with the FortiGate. According to the FortiSwitchOS 7.6 Administrator Guide, when a FortiSwitch operates in FortiLink mode, theinternal interface must obtain an IP address dynamically via DHCPfrom the FortiGate over the FortiLink interface. This IP address is required for control-plane communication, including CAPWAP-based management messaging.

From the exhibit, FortiGate successfully managesCore-1andCore-2, whileAccess-1remains offline. The FortiGate diagnostic output explicitly reports that itcannot detect Access-1 at the FortiLink interface, even though CAPWAP is enabled and the switch is in FortiLink mode. This eliminates CAPWAP configuration (Option B) as the root cause.

Examining the FortiSwitch Access-1 CLI output reveals the key issue:

Theinternal interfaceis configured withmode: staticand an IP address of0.0.0.0.

This configuration prevents Access-1 from obtaining a valid FortiLink management IP address, which is mandatory for FortiGate discovery and authorization. In contrast, FortiSwitch devices managed by FortiGate must have their internal interface set toDHCP, allowing the FortiGate to automatically assign an address from the FortiLink subnet.

Assigning a static IP (Option A) is not recommended or required in FortiLink-managed mode, NTP configuration (Option D) has no impact on discovery, and CAPWAP is already enabled as shown in the FortiGate output.

Therefore, theinitial and required corrective actionis toset the Access-1 internal interface mode to DHCP, makingOption Cthe correct and fully verified answer based on FortiOS 7.6 and FortiSwitchOS 7.6 documentation.

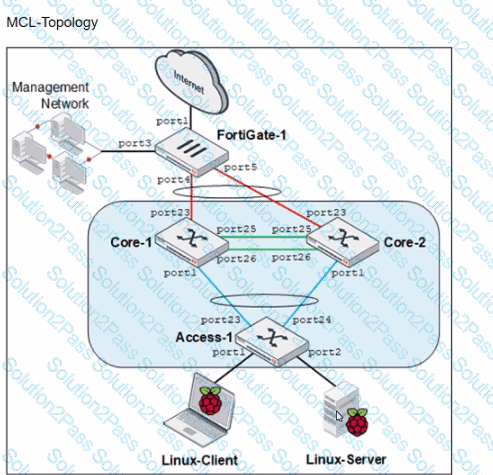

The STP (Spanning Tree Protocol) discarding state on port1 of Core-2, after Core-1 and Access-1 are managed and authorized by FortiGate-1, is likely due to the lack of an MCLAG (Multi-Chassis Link Aggregation Group) configuration between Core-1 and Core-2. In typical network configurations involving STP and MCLAG, the absence of MCLAG can lead to STP blocking one of the redundant paths to prevent loops, which is a critical function of STP. Port1 on Core-2 being in a discarding state suggests that it has been identified as providing a redundant path that could potentially create a network loop, hence STP has placed this port in a blocking (discarding) state to maintain a loop-free topology.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, the Spanning Tree Protocol (STP) is automatically enabled on managed FortiSwitches to ensure a loop-free Layer 2 topology within the FortiLink fabric. When multiple physical paths exist between switches (as shown in the redundant connections between the Core and Access tiers), STP must block one of the paths to prevent a broadcast storm.

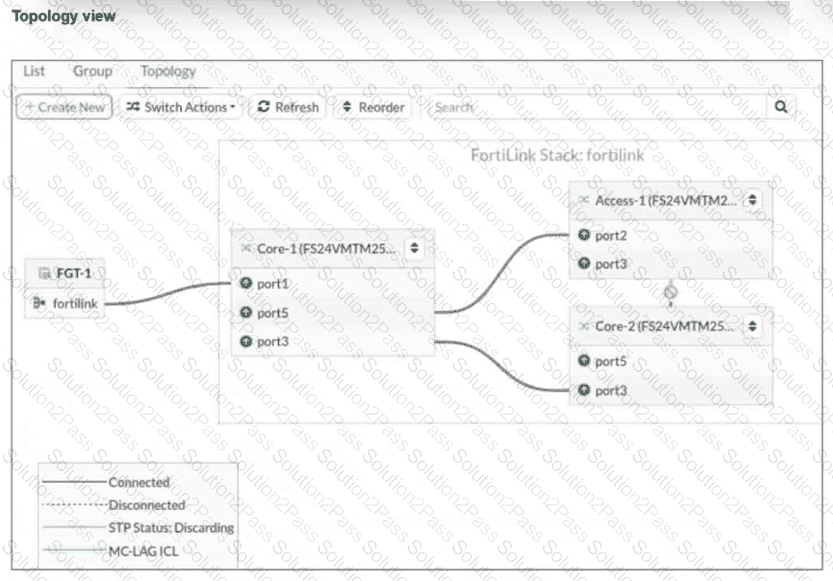

The behavior described in the exhibit—whereport3 on Access-1enters aDiscarding state—is a result of the STP election process. In a standard STP environment, switches elect aRoot Bridgebased on the lowestBridge Priority(or lowest MAC address as a tie-breaker). Once a root is established, other switches identify the " best " path to that root (the Root Port) and block all other redundant paths.

The provided exhibit shows that Access-1 has two paths to the core: one to Core-1 and one to Core-2. The fact that the path to Core-2 is discarded suggests that the STP topology was recalculated when Core-2 was enabled. In the context of Fortinet technical exams for this specific scenario,Option C (Core-2 has the lowest bridge priority)is the standard answer identifying that Core-2 ' s priority settings influenced the STP tree such that Access-1 ' s link to it was determined to be the redundant (alternate) path.

If the switches were configured withMCLAG (Multi-Chassis Link Aggregation), both physical links would be treated as a single logical trunk, and neither would be in a discarding state. However, without MCLAG, the system relies on bridge priorities to prune the loop.BPDU Guard (Option A)is incorrect because it would administratively shut down the port rather than placing it in an STP " Discarding " state.Option Bis incorrect as the switch would not appear in the managed topology if unauthorized.

QSFP+ transceiver (A): The QSFP+ (Quad Small Form-factor Pluggable Plus) transceiver is designed to handle 40G data rates and can be used to split a 40G port into multiple 10G connections. This type of transceiver supports such configurations, making it suitable for high-density applications where multiple 10G connections are derived from a single 40G port, thereby maximizing the utilization of the port and the fiber infrastructure.

According to theFortiSwitchOS 7.6 Administration Guide(specificallyPage 178) and theFortiSwitch 7.6 Study Guide, the Spanning Tree Protocol (STP) is the fundamental protocol used to manage redundant paths in a Layer 2 network. In the scenario described, where every FortiSwitch connects to every other FortiSwitch, afull Layer 2 meshis created. This architecture inherently produces multiple physical switching loops that, if left unmanaged, would cause catastrophic broadcast storms.

STP is responsible for detecting these loops by exchangingBridge Protocol Data Units (BPDUs). It then mathematically calculates a loop-free logical topology by placing redundant ports into ablocking (discarding)state while keeping primary paths in aforwardingstate. WhileMCLAG (Option A)provides node-level redundancy and eliminates STP delays by allowing two switches to appear as one, it is not a standalone solution for a global full-mesh topology. In fact, Fortinet MCLAG explicitly relies on STP through the mclag-stp-aware feature to detect and prevent loops caused by connections outside the Inter-Chassis Link (ICL).

Therefore, although MCLAG and LAG increase bandwidth and availability,STPremains the required underlying mechanism to maintain network stability in any highly redundant mesh environment. " Full mesh HA " (Option C) is not a defined feature in FortiSwitchOS 7.6.

Location (C): FortiSwitch uses LLDP-MED (Link Layer Discovery Protocol - Media Endpoint Discovery) to advertise various attributes to IP phones, among which " Location " is crucial in emergency situations. This information helps emergency responders to determine the physical location of the calling device, which is vital for prompt response in critical situations.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Remote Switched Port Analyzer (RSPAN) is a method used to monitor traffic across a network of switches by carrying mirrored traffic over a specific RSPAN VLAN. Because RSPAN floods mirrored traffic to all ports that are members of that specific VLAN across the intermediate switches (Switch B, etc.) until it reaches the destination port, it is critical to manage how that traffic is isolated.

The documentation explicitly states that the best practice is touse a dedicated VLAN assigned only to monitoring devices (Option B). When a VLAN is designated for RSPAN, the switch disables MAC address learning on that VLAN to ensure that the mirrored traffic—which contains the source and destination MAC addresses of the original conversation—does not interfere with the switch ' s normal MAC address table entries for those devices.2

Using a VLAN that already carries regular data traffic (Option A) would result in a massive amount of duplicate traffic being flooded to normal production hosts, leading to network congestion and potential security risks. Similarly, using a dynamic VLAN that includes all ports (Option C) would cause the mirrored traffic to be broadcast to every port in the switch fabric, significantly degrading performance. Finally, using the RSPAN VLAN as a native VLAN (Option D) is not recommended because native VLANs typically handle untagged traffic, whereas RSPAN requires consistent tagging to ensure the mirrored packets stay within the isolated monitoring domain across trunk links. Therefore, creating a unique, dedicated VLAN that is used exclusively for the transport of mirrored traffic is the architectural standard for FortiSwitch RSPAN deployments.

VLAN assignments on FortiSwitch ports must follow certain rules and guidelines to ensure network integrity and proper traffic segregation:

Only Assign One Native VLAN on a Port (C):

Native VLAN Configuration:Each switch port can have only one native VLAN. The native VLAN carries untagged traffic for that port. If the port receives untagged frames, they are assumed to belong to the native VLAN.

Importance of Singular Native VLAN:This is crucial for preventing VLAN hopping attacks and ensures clear and secure VLAN demarcation on each port.

Assign Untagged VLANs Using FortiGate CLI (D):

CLI Configuration:Untagged VLANs, often equivalent to the native VLAN, can be assigned through the FortiGate CLI when managing a FortiSwitch via FortiLink. This allows for central management and configuration of VLANs across connected switches.

Operational Efficiency:Using the CLI ensures that VLAN settings are applied uniformly, reducing the likelihood of misconfigurations that might occur when managing VLANs individually on each switch.

Page 452 of 7.6 study guide, specifically states " Although you can use the sniffer command to capture traffic on switch ports, the types of packets capture by the sniffer are very limited.

The use of the sniffer command on FortiSwitch CLI can be unreliable on port 23 for specific reasons related to the nature of traffic on the port:

D.The switch port might be used as a trunk member.When a switch port is configured as a trunk, it can carry traffic for multiple VLANs. If the sniffer is set up without specifying VLAN tags or a range of VLANs to capture, it may not accurately capture or display all the VLAN traffic due to the volume and variety of VLAN-tagged packets passing through the trunk port. This limitation makes using the sniffer on a trunk port unreliable for capturing specific VLAN traffic unless properly configured to handle tagged traffic.

Based on the DHCP snooping configuration details provided in the exhibit:

B. FortiSwitch is configured to trust DHCP replies coming on FortiLink interface.The configuration segment shows " trusted ports : port2 FlInK1 MLAG0, " indicating that the FortiSwitch is configured to trust DHCP replies coming from the specified ports, including the FortiLink interface labeled FlInK1. This setup is critical in environments where the FortiLink interface connects directly to a trusted device, such as a FortiGate appliance, ensuring that DHCP traffic on these ports is considered legitimate.

D. Global configuration for DHCP snooping is set to forward DHCP client requests on all ports in the VLAN.The " DHCP Broadcast Mode " set to ' All ' under the DHCP Global Configuration indicates that DHCP client requests are allowed to broadcast across all ports within the VLAN. This setting is essential for environments needing broad DHCP client servicing across multiple access ports without restriction, facilitating network connectivity and management.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Private VLANs (PVLANs) provide a mechanism to partition a regular VLAN (the Primary VLAN) into sub-VLANs to control Layer 2 traffic flow within the same broadcast domain.

In a multi-tenant environment requiring strict security, anIsolated VLAN (Option C)is the correct choice to prevent lateral communication between servers. The documentation specifies that ports within an Isolated VLAN are completely blocked from communicating with any other ports in the same Isolated VLAN or any Community VLANs. This effectively eliminates the risk of " east-west " traffic or lateral movement between tenant servers, even if they reside in the same physical switch and logical subnet.

However, the architecture of PVLANs ensures that these isolated ports can still communicate withPromiscuous ports. In this scenario, the shared FortiGate firewall would be connected to a Promiscuous port within thePrimary VLAN (Option D). This allows all tenant servers in the Isolated VLAN to send and receive traffic to the FortiGate for internet access and centralized security filtering, while remaining invisible to one another at the hardware layer.

Community VLANs (Option B)would be inappropriate for this specific requirement because ports within a Community VLANcancommunicate with each other, which violates the requirement for complete isolation between all servers. Therefore, the combination of an Isolated VLAN for the servers and a Promiscuous port for the firewall is the standard design for multi-tenant isolation in FortiSwitchOS 7.6.

According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 FortiLink Guide, deploying managed switches over a Layer 3 underlay—such as the public internet—requires a specific tunneling mechanism to bridge Layer 2 broadcast domains. Traditional FortiLink relies on a direct Layer 2 connection; however, for remote sites,FortiLink over VXLANis the standard solution.

FortiLink over VXLAN (Option A):Virtual Extensible LAN (VXLAN) is used to encapsulate Layer 2 Ethernet frames into Layer 3 UDP packets, allowing VLAN-tagged traffic to traverse an ISP ' s routable network. This enables the FortiGate to manage remote FortiSwitch " islands " as if they were locally connected, maintaining full VLAN segmentation across the WAN.

Layer 3 Termination (Option E):The FortiGate acts as theVirtual Tunnel Endpoint (VTEP). It must have a reachable Layer 3 interface (such as a WAN port with a public IP or an IPsec tunnel interface) to terminate the VXLAN overlay. Once the VXLAN tunnel is terminated at the FortiGate, the encapsulated VLAN traffic is extracted, and the FortiGate can perform inter-VLAN routing and security inspection.

Regarding the incorrect options:Option Bis incorrect because the FortiGate at the central site handles the routing, eliminating the need for a local L3 device.Option Cis a performance consideration but not a functional requirement for basic connectivity.Option Dis often used for security to encrypt the underlay, but IPsec alone does not provide the Layer 2 extension capabilities required for VLAN segmentation; VXLAN is the specific component that handles the MAC-in-UDP encapsulation.

Active multicast receiver entries are aging on each IGMP query sent on the VLAN (A): When IGMP snooping querier is enabled on a VLAN, it functions to manage multicast traffic within the VLAN by keeping track of multicast group memberships. The IGMP querier sends queries to determine which ports require the multicast traffic. The multicast receiver entries, which are entries that indicate which devices have requested the multicast data, age or time out based on these IGMP queries. Each query refreshes active connections but ages out entries that no longer respond, helping to ensure that multicast traffic is only sent to ports with active receivers.
