JN0-105 Juniper Junos - Associate (JNCIA-Junos) 2025 Exam Free Practice Exam Questions (2025 Updated)

The clear log ospf-trace command on a Juniper Networks router is used specifically to manage the contents of the log file named ospf-trace. Executing this command clears or deletes the existing data within the ospf-trace log file but does not stop the logging process. The router continues to log new OSPF-related events and data into this file after the command is executed. This functionality is crucial for troubleshooting and monitoring the OSPF (Open Shortest Path First) protocol's operation by allowing network administrators to remove old or irrelevant log data while continuously capturing new events without interruption.

The Packet Forwarding Engine (PFE) is an integral component of Juniper Networks devices, responsible for the data plane operations. The data plane, also known as the forwarding plane, is where the actual processing and forwarding of packets occur based on the routing and forwarding tables. The PFE executes the forwarding decisions made by the Routing Engine (RE), handling all packet transmissions, including routing, filtering, and switching packets towards their destination. This contrasts with the control plane operations handled by the RE, which involve routing table maintenance, system management, and control protocol processing.

Referring to the firewall filter configuration in the exhibit, when a packet matches the specified term limit-icmp, two actions are defined in the then statement: count count-icmp and discard. The count count-icmp action means that each time a packet matches this term, a counter named count-icmp will be incremented, providing a tally of how many packets have matched the term. The discard action means that the packet will be dropped and not forwarded through the device. This effectively prevents the packet from reaching its intended destination. There is no action specified that would cause an ICMP destination unreachable message to be returned, nor is there any action that would allow the packet to be forwarded.

Transit traffic that traverses the forwarding plane of a Layer 3 router includes both unicast and multicast traffic types. Unicast traffic is directed from a single source to a single destination, while multicast traffic is sent from one source to multiple destinations that are part of a multicast group. These types of traffic are efficiently routed through the network by leveraging the router's forwarding plane capabilities. Exception traffic, which requires special handling by the control plane, and broadcast traffic, which is typically limited to a single broadcast domain and not usually forwarded by Layer 3 routers, are not considered standard types of transit traffic for the forwarding plane of a router.

Two physical interface properties in Junos OS include the MAC address (A) and the Maximum Transmission Unit (MTU) size (D). The MAC address is a hardware identifier for the network interface, while the MTU size determines the largest packet size that the interface can transmit without needing to fragment the packet.

The Routing Protocol Daemon (rpd) is a critical component in Juniper Networks devices, responsible for all routing operations. It maintains routing tables, which hold information about network paths and destinations derived from various routing protocols. These tables are used to make decisions about where to send packets. Additionally, rpd generates forwarding tables based on the information in the routing tables. The forwarding tables are then used by the Packet Forwarding Engine (PFE) to actually forward packets to their next hop or final destination.

Junos OS selects routes based on the route preference (also known as administrative distance). Static routes typically have a lower route preference than OSPF routes, meaning they are more preferred. Since the static route to 192.168.36.1/32 is shown with a preference of 5, it will be selected over the OSPF route for packet forwarding, assuming no other factors such as route filters or policies affect the routing decision.

Issuing the rollback 0 command in Junos OS will discard any uncommitted changes and revert to the last committed configuration. This command effectively cancels any configuration changes that have been made but not yet committed, ensuring that the device returns to its previous stable state.

References:

"rollback 0 ...................................(rolls back the changes just made )" from Useful Juniper Commands.txt​​.

Juniper official documentation: Rolling Back a Configuration.

The show | compare command in Junos OS is used to display the differences between the candidate configuration and the active configuration. If no output is shown when you issue this command, it means that there are no changes between the candidate configuration and the active configuration. This indicates that the candidate configuration is identical to the active configuration, and thus no differences are displayed.

The Packet Forwarding Engine (PFE) in Junos OS performs several key functions, including implementing firewall filters (A) and forwarding transit traffic (C). The PFE applies firewall filter rules to incoming and outgoing traffic and is responsible for the high-speed forwarding of packets based on the information in the forwarding table.

If you've committed a configuration and then need to revert to the previous configuration, the rollback command is used. Since the incorrect IP address has not been committed, as indicated by the commit check command being successful, issuing rollback 1 will undo the changes made in the current session, which includes the accidental entry of the IP address.

The Network Time Protocol (NTP) is designed to synchronize the clocks of computers over a network. Configuring NTP on a Junos device ensures that its clock is set accurately, which is crucial for logging, troubleshooting, and maintaining the integrity of time-sensitive operations and security protocols. NTP allows devices to use a hierarchy of time sources, from primary servers synchronized to a reference clock (such as an atomic clock or GPS time) to secondary servers that distribute the time to other devices on the network.

In Junos OS, the archival configuration under [edit system] allows for the automatic backup of configuration files to designated locations upon commit. When multiple archive-sites are specified, as shown in the exhibit with both SCP and FTP sites listed, the device does not choose between them or use them in a round-robin manner. Instead, it attempts to transfer the configuration backup files to all specified sites simultaneously upon each commit. This ensures redundancy and increases the likelihood that a backup will be successfully stored even if one of the transfer methods or destinations fails.

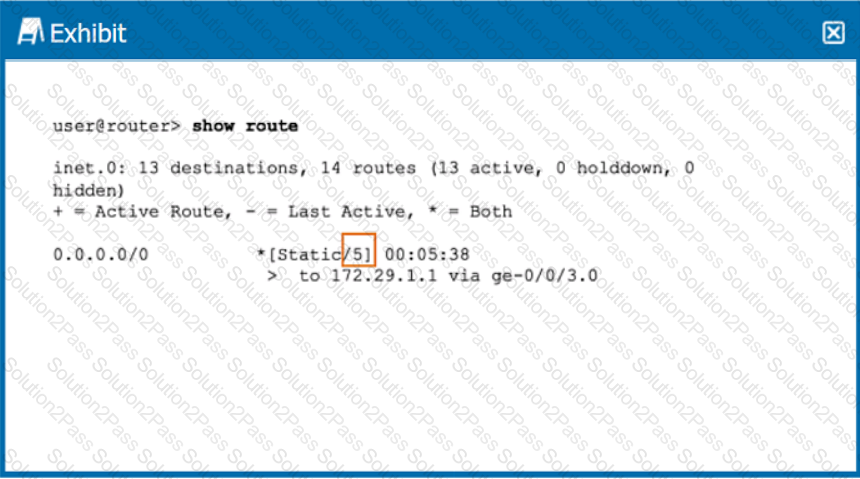

In the exhibit shown, the highlighted number next to the route type (Static) within the square brackets indicates the route preference, also known as the administrative distance. In Junos, the route preference is a value that determines the priority of the route source. Lower numbers indicate a higher priority when the routing table is being calculated. The route preference is used to select the best route when multiple paths to the same destination exist from different routing sources. The number 5 is unusually low for a static route by default, suggesting it has been manually configured to override other route types.

The Packet Forwarding Engine (PFE) in Junos OS is responsible for maintaining the forwarding table. The PFE processes incoming packets, performs route lookups in the forwarding table, and forwards packets based on this information, offloading these tasks from the Routing Engine to ensure efficient packet forwarding.

The show chassis hardware command in Junos OS displays detailed information about the hardware installed in the device, including the chassis itself. This command provides a list of all hardware components, their serial numbers, part numbers, and version information. When looking for the chassis serial number specifically, this command is the most direct and comprehensive way to retrieve that information, as it includes the serial number of the chassis among the details provided.

In the Junos OS command-line interface (CLI), the keyboard shortcut Ctrl+a is used to move the cursor to the start of the line. This is a common convention in many command-line environments and text editors, providing a quick way to navigate to the beginning of the current command or line of text without having to use the arrow keys. This can be particularly useful for making quick edits to commands or for navigating long lines of text more efficiently.

Implementing Class of Service (CoS) in a network provides numerous benefits, particularly in managing traffic based on its importance, source, or type. CoS enables network administrators to manage traffic congestion by applying various queuing techniques and policies to ensure that critical services remain unaffected during high congestion periods. Additionally, CoS allows for the prioritization of latency-sensitive traffic such as voice and video, ensuring that these services maintain quality despite varying network conditions.

An Ethernet frame header includes the source MAC address (B) and the destination MAC address (D). These addresses are used to deliver the frame from one Ethernet device to another directly connected Ethernet device on the same network segment. Ethernet frames do not include IP addresses, as those are part of the IP packet encapsulated within the Ethernet frame.
