In FortiOS 7.6, SD-WAN steering decisions are recorded in traffic logs only when traffic matches an explicit SD-WAN rule (SD-WAN service rule). When no configured SD-WAN rule matches a session, FortiGate uses the implicit (default) SD-WAN rule/behavior to select a member (often resulting in load-balancing or default selection based on the configured SD-WAN algorithm).

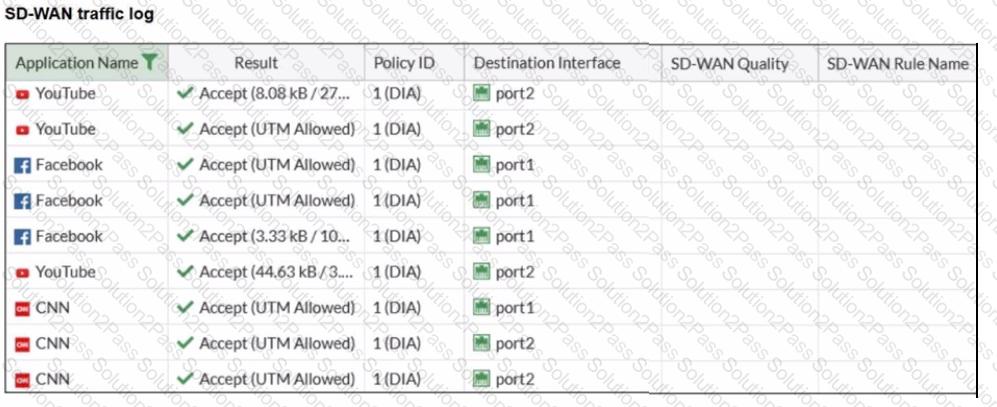

In the exhibit, traffic is permitted by firewall policy ID 1, and the Destination Interface alternates between port1 and port2, but SD-WAN Rule Name remains empty. This is consistent with the sessions being forwarded by the implicit SD-WAN rule, which does not populate a named rule in the log columns.

Why the other options are not correct:

A: SD-WAN rule name logging is not a “delayed display” behavior requiring refresh; it is populated per-session when an explicit rule matches.

B: Application Control is not required for SD-WAN rule name to appear. Rule name logging depends on SD-WAN rule match, not on whether Application Control is enabled.

C: Feature visibility affects GUI display options, but the exhibit already shows the SD-WAN columns enabled; the issue is that no explicit SD-WAN rule is being hit.

From the exhibits:

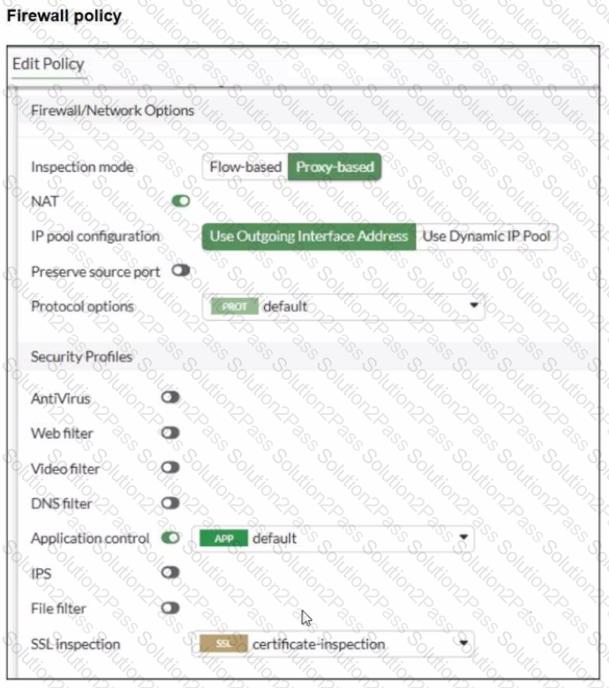

The firewall policy has Application Control enabled and uses certificate-inspection for SSL inspection.

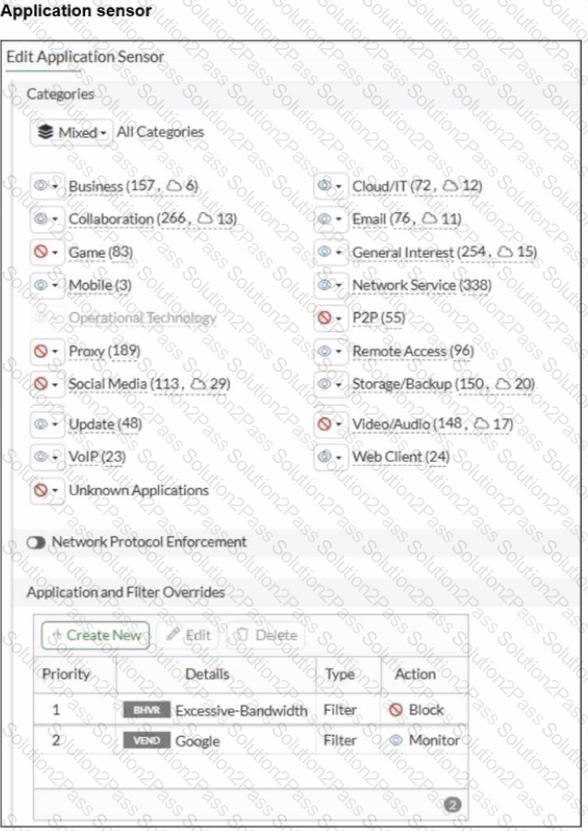

The application sensor has Application and Filter Overrides with the following order (priority):

Excessive-Bandwidth with action Block

Google (vendor filter) with action Monitor

In FortiOS, Application and Filter Overrides are evaluated by priority (top-down). The first matching override is applied. If traffic matches an earlier override with Block, it will be blocked even if a later override would Monitor/Allow it.

Why Google apps fail while www.fortinet.com works:

Many Google applications can be detected as (or can trigger) the Excessive-Bandwidth behavior/signature depending on the specific service and traffic pattern.

Because Excessive-Bandwidth (Block) is above Google (Monitor), Google-related traffic may match the first rule and be blocked before the Google override is evaluated.

Access to www.fortinet.com works because that traffic is not matching the Excessive-Bandwidth override.

Therefore, to resolve:

B. Move up Google in the Application and Filter Overrides section to set its priority higher

This ensures Google matches the Google override before any broader blocking override is applied.

E. Set the action for Google in the Application and Filter Overrides section to Allow

This explicitly permits Google applications once the higher-priority match occurs (stronger than Monitor for troubleshooting and ensuring access).

Why the other options are not the best fit here:

A (deep-content inspection) can help identify more HTTPS applications, but the exhibit already shows a specific Google override configured; the immediate issue is the override evaluation order and action.

C relates to Web Filter URL categories, but the problem is occurring under Application Control behavior/vendor overrides.

D (flow-based) is not required to fix an override priority/action conflict.

“ Rate-based IPS signatures also allows you to detect anomalies, which are unusual behaviors in the network...”

“There are two ways to add predefined signatures to an IPS sensor. One way is to select the signatures individually... The second way to add a signature to a sensor is using filters.”

“ You can also add rate-based signatures to block specific traffic when the threshold is exceeded. On the CLI, If you set the command rate-mode to periodical, FortiGate triggers the action when the threshold is reached during the configured Duration time period. ”

Technical Deep Dive:

The correct answer is C. Use IPS signatures, rate-mode periodical option.

The guide is explicit that this behavior belongs to rate-based IPS signatures . The question asks for blocking traffic when a signature is triggered a certain number of times within a defined interval. That is exactly what rate-mode periodical does: it evaluates the trigger count over the configured duration window and then applies the configured IPS action when the threshold is met.

Why the other options are wrong:

A is wrong because rate-mode 60 is not the documented syntax or method.

B is wrong because packet logging records packets; it does not implement threshold-based blocking logic.

D is wrong because the guide ties rate-mode periodical to rate-based signatures , not to IPS filters as the mechanism for this threshold behavior.

Operationally, this is used for anomaly-style detection, similar in concept to lightweight rate-based protection. A typical CLI pattern is along these lines:

config ips sensor

edit " custom-ips "

config entries

edit 1

set rule < signature_id >

set rate-mode periodical

set rate-count < threshold >

set rate-duration < seconds >

set action block

next

end

next

end

This works best when applied only to relevant protocols and signatures, because broad use of rate-based signatures can consume more resources and increase false-positive risk.

“After the IPS engine examines the traffic stream for a signature match, FortiGate scans packets for matches, in this order, for the application control profile:

1. Application and filter overrides ...”

“Because application overrides are applied first in the scan, these two applications are allowed and generate logs.”

“The priority in which application and filter overrides are placed takes precedence.”

Technical Deep Dive:

The correct answer is C. Application and Filter Overrides .

If you already set the P2P category to Block , but some peer-to-peer traffic is still being allowed, the first thing to check is whether there is an application override or filter override that matches that traffic before the category action is applied. FortiGate processes Application and Filter Overrides before Categories , so any matching override set to Allow or Monitor will effectively bypass the category block.

Why the others are wrong:

A only affects user-facing block-page behavior for HTTP/HTTPS applications, not whether P2P is blocked.

B is for enforcing expected services on expected ports and for blocking applications on non-default ports. It is not the first place to look when a category block is being bypassed.

D concerns web categorization, not application-control category enforcement.

Operationally, this is a classic troubleshooting sequence: first inspect the override table , then the category action , then logs under Application Control to see which signature and action actually matched.

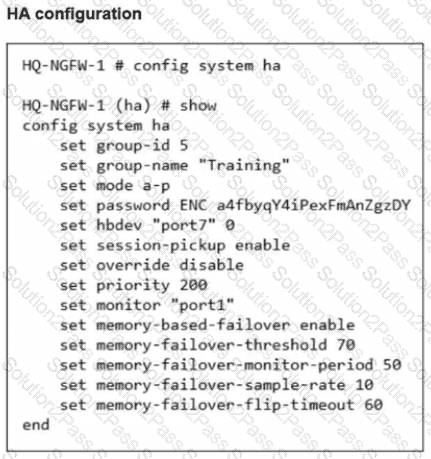

From the HA configuration shown for HQ-NGFW-1:

set memory-based-failover enable

set memory-failover-threshold 70

set memory-failover-monitor-period 50

set memory-failover-sample-rate 10

set memory-failover-flip-timeout 60

set override disable

set priority 200

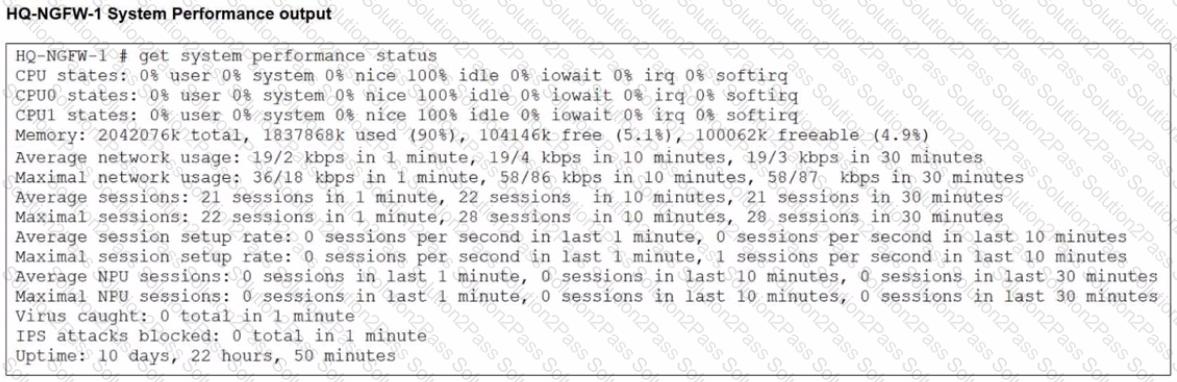

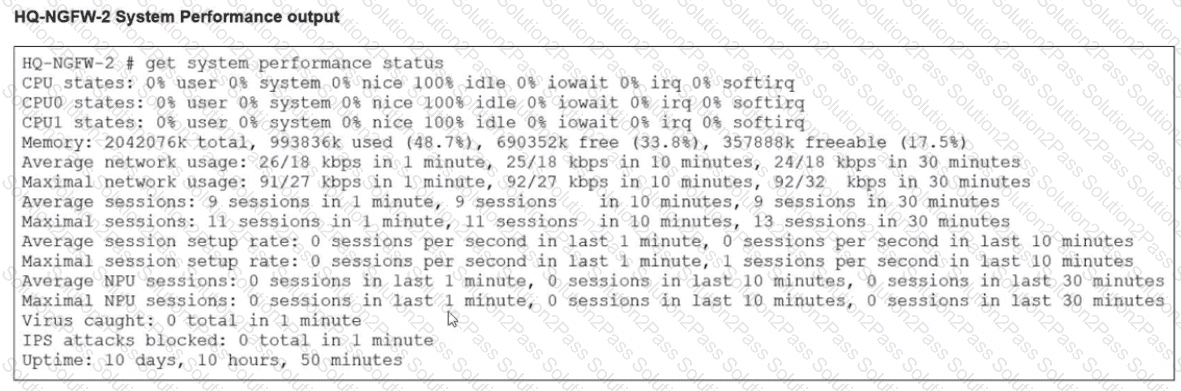

From the performance status outputs:

HQ-NGFW-1 memory used is 90% (well above the configured threshold of 70%)

HQ-NGFW-2 memory used is about 48.7% (well below the threshold)

What happens in FortiOS 7.6 with memory-based failover

When memory-based failover is enabled, FortiGate monitors memory utilization. If the unit’s memory usage stays above the configured memory-failover-threshold for the configured memory-failover-monitor-period, the cluster triggers a failover away from the unit under memory pressure.

Threshold = 70%

HQ-NGFW-1 is at 90%, so it violates the threshold.

Monitor period = 50 seconds.

The administrator observed for 55 seconds, which is longer than 50 seconds, so the condition is met for long enough to trigger failover.

The memory-failover-flip-timeout 60 is used to prevent rapid back-and-forth role changes (flapping) after a failover decision; it does not prevent the initial failover from occurring once the threshold breach persists for the monitor period.
