300-425 Cisco Designing Cisco Enterprise Wireless Networks (ENWLSD) Free Practice Exam Questions (2025 Updated)

Aggregated Probe Response Optimization should be enabled on the controller to optimize roaming, especially for environments with a high density of Apple OS devices. This feature reduces airtime consumption and overhead by aggregating probe responses, which can improve the roaming experience for the employees.

To connect multiple wired devices over a workgroup bridge using an autonomous AP, a router is needed to manage the IP addresses and route traffic between the wired devices and the wireless network. The router will act as a gateway for the wired devices, allowing them to communicate with the WLAN. References: Cisco autonomous AP configuration guides and workgroup bridge deployment scenarios.

For a point-to-multipoint mesh network site survey, configuring the Rx power and Tx power is essential. Rx power will determine the sensitivity of the AP to incoming signals, which is crucial for understanding the reach of each mesh point. Tx power settings will influence the strength of the signals transmitted from the AP, affecting the network’s overall coverage. References: Designing Cisco Enterprise Wireless Networks (ENWLSD 300-425)

For a technology company with multiple buildings requiring seamless wireless coverage, client roaming, and centralized data center with two WLCs (Wireless LAN Controllers) along with core switches, a centralized wireless architecture is most suitable. This architecture allows for easier management of the network from a central location. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice

 Before replacing old APs with IEEE 802.11ac-capable APs, it is crucial to check the software version of the wireless LAN controller. The controller’s firmware must support the newer standards and capabilities of 802.11ac APs. An outdated software version may not support the advanced features and performance enhancements offered by 802.11ac technology, leading to compatibility issues and suboptimal network performance.

References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice.

For seamless roaming between access points, the protocol that supports fast transitions is 802.11r. This amendment to the 802.11 standard allows devices to roam quickly by establishing security credentials before moving to the next access point, reducing the time required for reauthentication.

To minimize channel utilization and interference with existing tenant networks, it’s best to use the UNII-1 channels, which are typically less congested, and stick to 20-MHz channels to provide more non-overlapping channels and reduce co-channel interference.

 Cisco Hyperlocation requires a dense deployment of access points for accurate location tracking. Adding more APs than a standard site survey suggests can meet the granular location requirements needed for Hyperlocation services. References: ENWLSD official certification guide.

To reduce co-channel interference, it’s beneficial to decrease channel bonding, which will increase the number of non-overlapping channels available. Reducing the power of the APs can also help minimize interference by reducing the range of each AP’s signal, thereby reducing the chance of overlap.

When designing anchor redundancy for guest clients with auto-anchor configured on a WLC running version 8.1 or above, setting up Guest Anchor Priority ensures that one anchor is treated as active while another acts as standby rather than load-balancing clients between anchors which is not desired in this case. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice)

 Cisco Hyperlocation requires a high degree of accuracy in client location tracking. A recommended cell overlap of 50% ensures that client devices are consistently within the range of multiple access points, which improves location accuracy and reliability. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

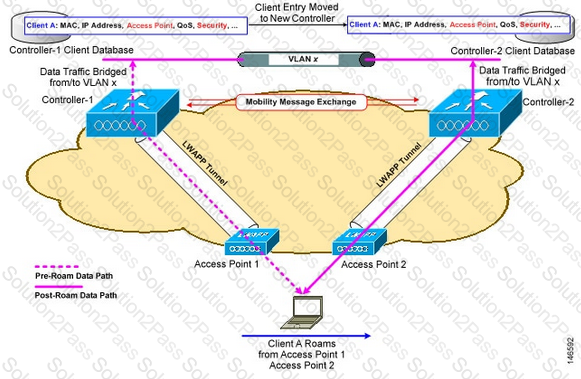

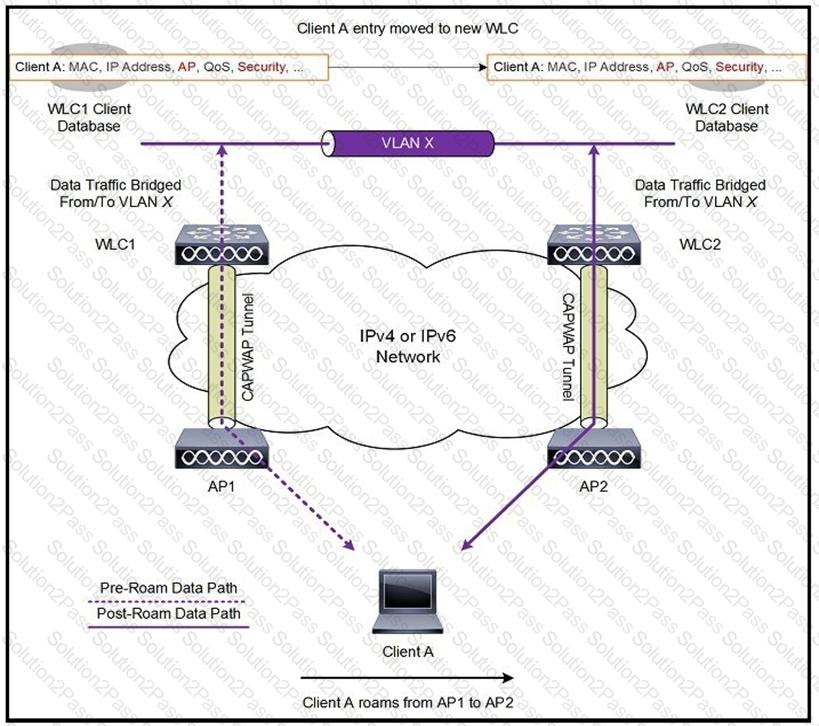

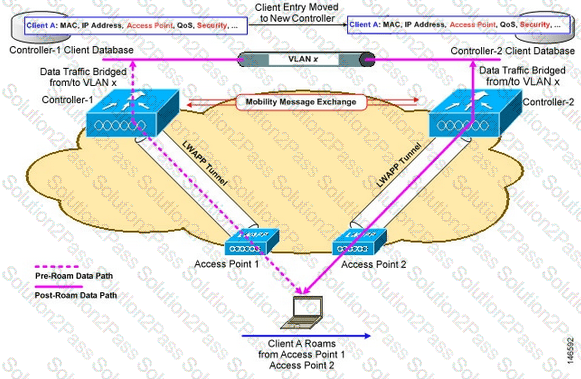

When a client roams between two access points (APs) that are registered to different controllers with interfaces in the same client subnet, the controllers will exchange mobility control messages over UDP port 16666. This is in accordance with the Designing Cisco Enterprise Wireless Networks (ENWLSD) guidelines. The purpose of these messages is to ensure seamless roaming, where the client’s session and authentication state are transferred from one controller to another without requiring re-authentication or re-association by the client. The mobility control messages facilitate the coordinated transfer of the client database entry from the original controller to the new one, maintaining a consistent experience for the user.

 Mobility tunnels between Cisco Wireless LAN Controllers (WLCs) use UDP port 16666 for control messages and UDP port 16667 for data traffic. If EPING is failing, it indicates that the necessary ports are not open. Allowing UDP port 16666 through the firewall would enable the control messages required for establishing the mobility tunnels.

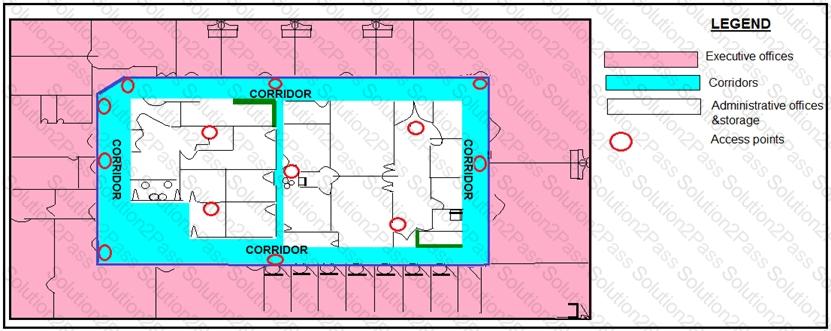

 The decision to avoid installing APs directly in offices is likely due to transmit power considerations. Placing APs within offices could lead to excessive coverage for small areas, causing interference with other APs and reducing overall network performance. By placing them in common areas like corridors, engineers can ensure more uniform coverage across larger spaces while managing transmit power more effectively for optimal performance.

References:

CCNP Enterprise Wireless Design ENWLSD 300-425 Official Cert Guide

https://www.cisco.com/en/US/docs/solutions/Enterprise/Mobility/emob30dg/RFDesign.html#wp1000551

 The concern with existing gigabit uplinked switches providing 802.3at is the output power limitation. 802.11ac Wave 2 APs may require more power than what 802.3at can deliver, especially for features like Multi-User Multiple Input Multiple Output (MU-MIMO). References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

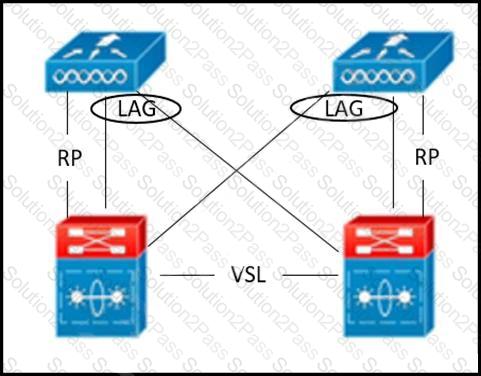

For a cost-effective high availability deployment in a campus enterprise wireless network with three controllers, the N+1 architecture with Stateful Switch Over (SSO) is recommended. This architecture provides redundancy and allows for seamless failover without service interruption, ensuring that the network remains highly available without the need for a one-to-one controller redundancy, which would be less cost-effective

https://www.cisco.com/c/en/us/td/docs/wireless/technology/hi_avail/N1_High_Availability_Deployment_Guide/N1_HA_Overview.html?

 For mobility between two buildings with one controller at each site, CAPWAP data and control traffic must be able to pass between controllers. CAPWAP control messages use UDP port 5246 while CAPWAP data messages use UDP port 5247; therefore, these ports must be open to allow inter-controller communication for seamless mobility. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice)

The behavior of guest client sessions in the US being anchored to the WLCs in Europe despite the presence of a local anchor WLC can be explained by the failure and subsequent recovery of the US anchor WLC. During the failure, the guest sessions would have been transferred to the European WLCs. After recovery, if the priority settings were not correctly restored or if the system did not automatically revert back to the local anchor, the sessions would remain anchored to the European WLCs3.

References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice.
